Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the oil seal with clean engine oil.

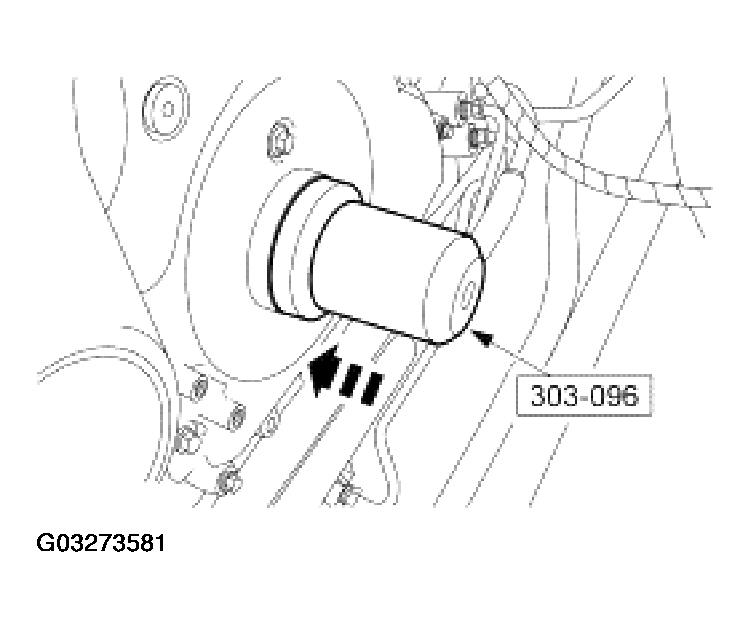

    Fig 1: Installing Crankshaft Front Oil Seal
    G03273581Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the crankshaft front oil seal.
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
