Cylinder Bore - Out-of-Round

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the cylinder bore in two directions. The difference is the out-of-round. Verify the out-of-round is within the wear limit and bore the cylinder to the next oversize limit.
    • Refer to the appropriate ENGINE article for additional information.

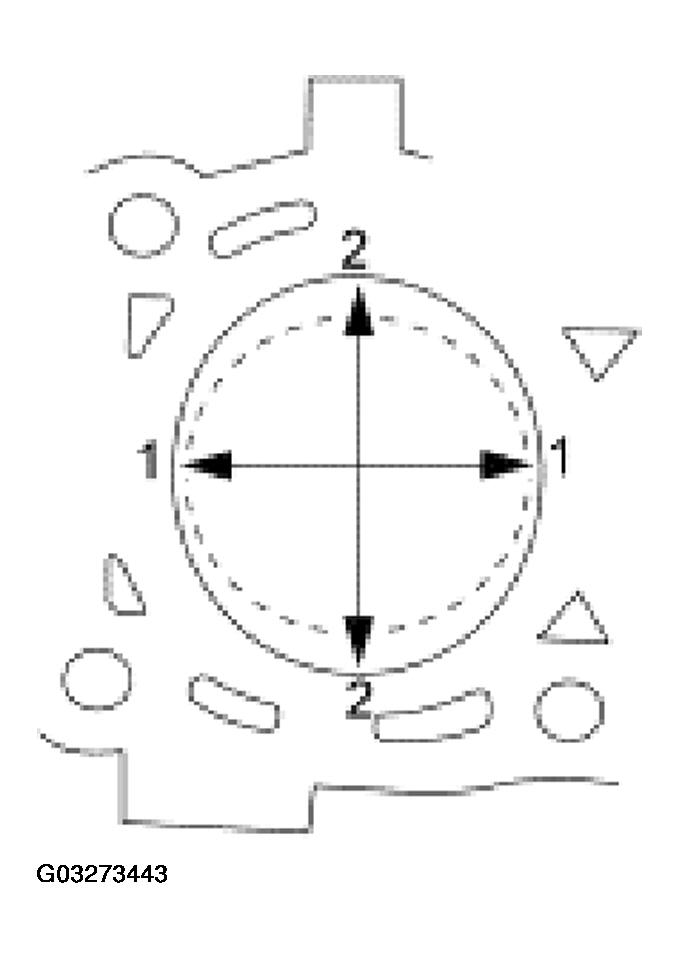

      Fig 1: Measuring Cylinder Bore Out-Of-Round
      G03273443Courtesy of FORD MOTOR CO.
