Crankshaft Main Bearing Journal - Diameter

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Measure each of the crankshaft main bearing journal diameters in at least two directions.
- Refer to the appropriate ENGINE article for additional information.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article.

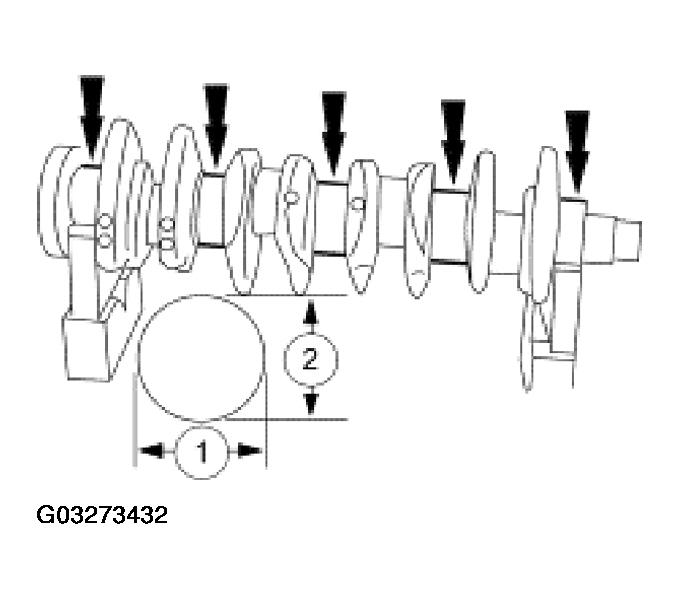

  Fig 1: Measuring Crankshaft Main Bearing Journal Diameters
  Courtesy of FORD MOTOR CO.
