Crankshaft Main Bearing Journal - Clearance

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

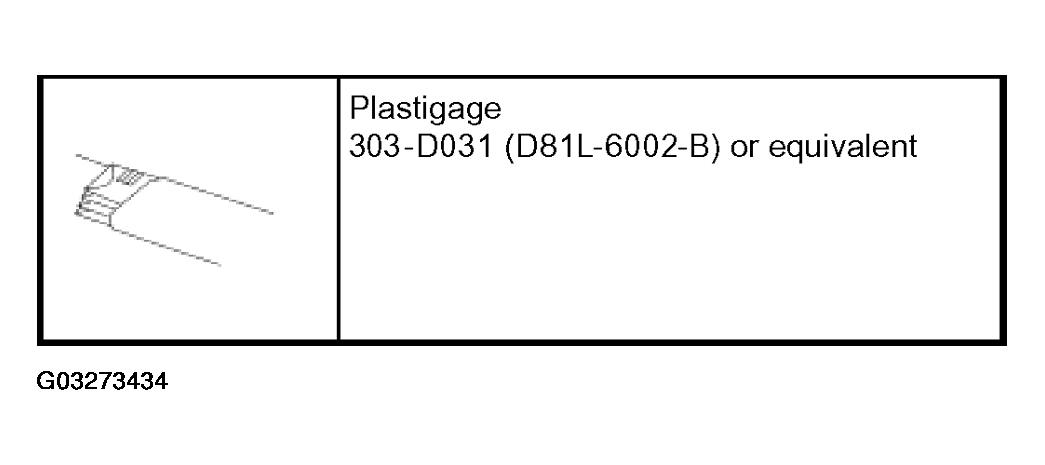

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

NOTE: Crankshaft main bearing journals must be within specifications before checking journal clearance.

Remove the crankshaft main bearing caps and crankshaft main bearing.
Lay a piece of Plastigage across the face of each crankshaft main bearing surface.

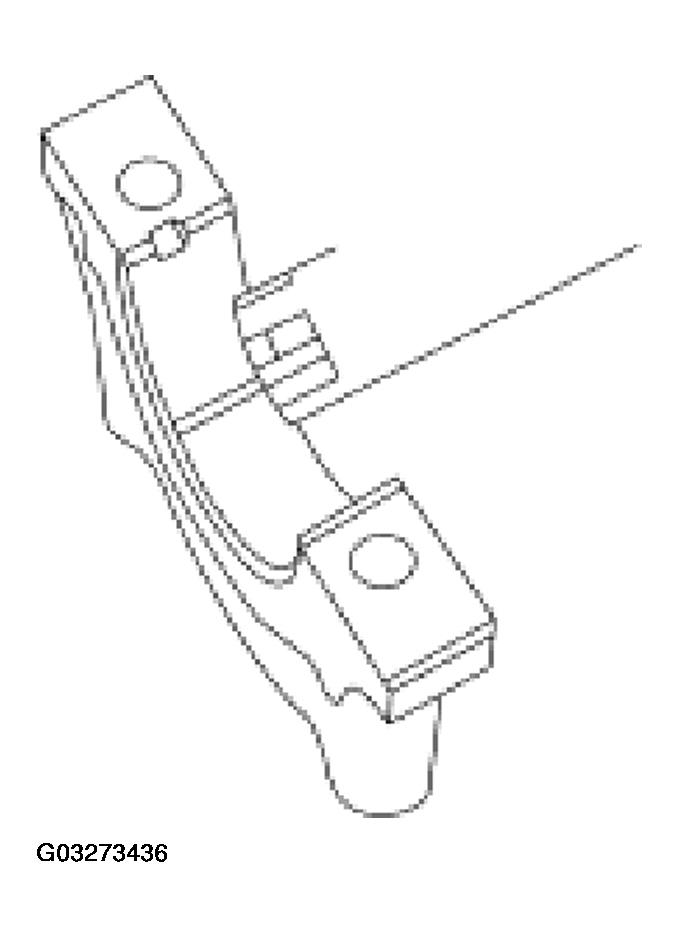

Fig 2: Identifying Lay A Piece Of Plastigage Across Face Of Each Crankshaft Main Bearing Surface
Courtesy of FORD MOTOR CO.

NOTE: Do not turn the crankshaft while carrying out this procedure.

Install and remove the crankshaft main bearing cap.
Verify the crankshaft journal clearance.
- Refer to the appropriate ENGINE article for additional information.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article.

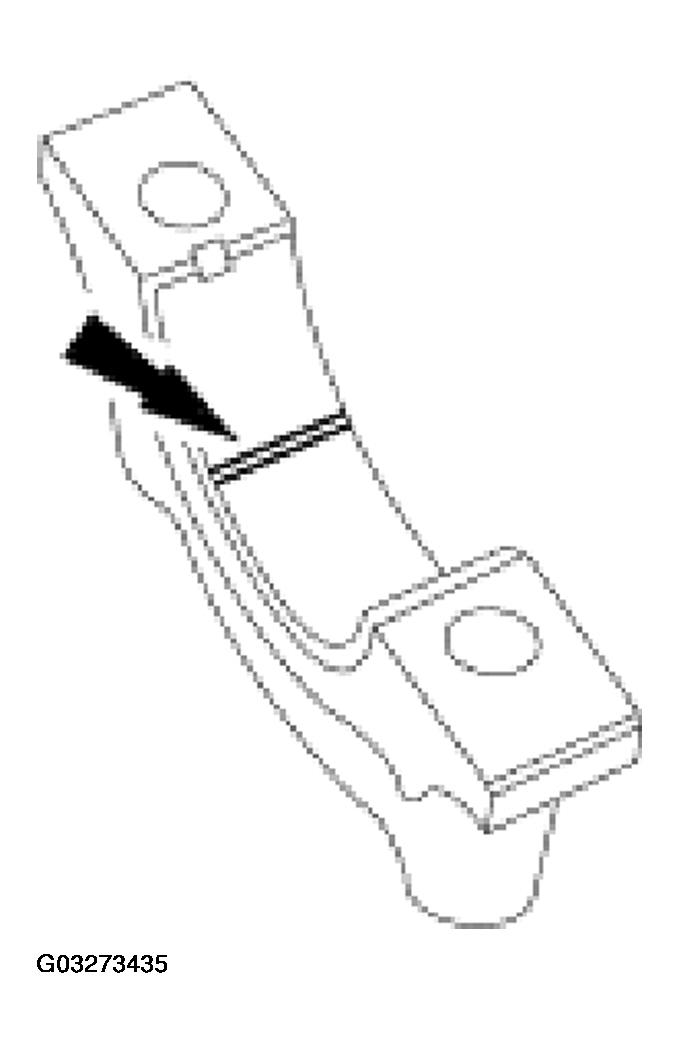

  Fig 3: Measuring Crankshaft Journal Clearance - Plastigage Method
  Courtesy of FORD MOTOR CO.
