Camshaft Journal - Diameter
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

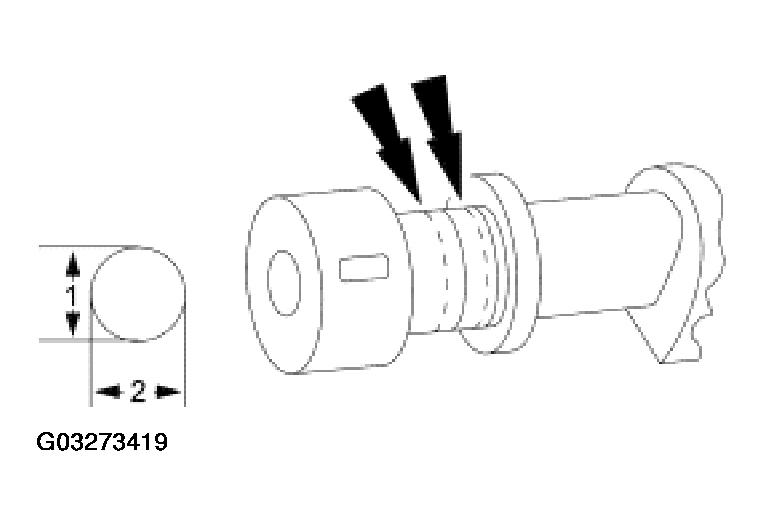

- Measure each camshaft journal diameter in two directions.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE
article.
Courtesy of FORD MOTOR CO.
