Camshaft Journal - Clearance, Push Rod Engine, Micrometer Method

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.
  1. Measure each camshaft bearing (6261) in two directions.
    • Subtract the camshaft journal diameter from the camshaft bearing diameter.

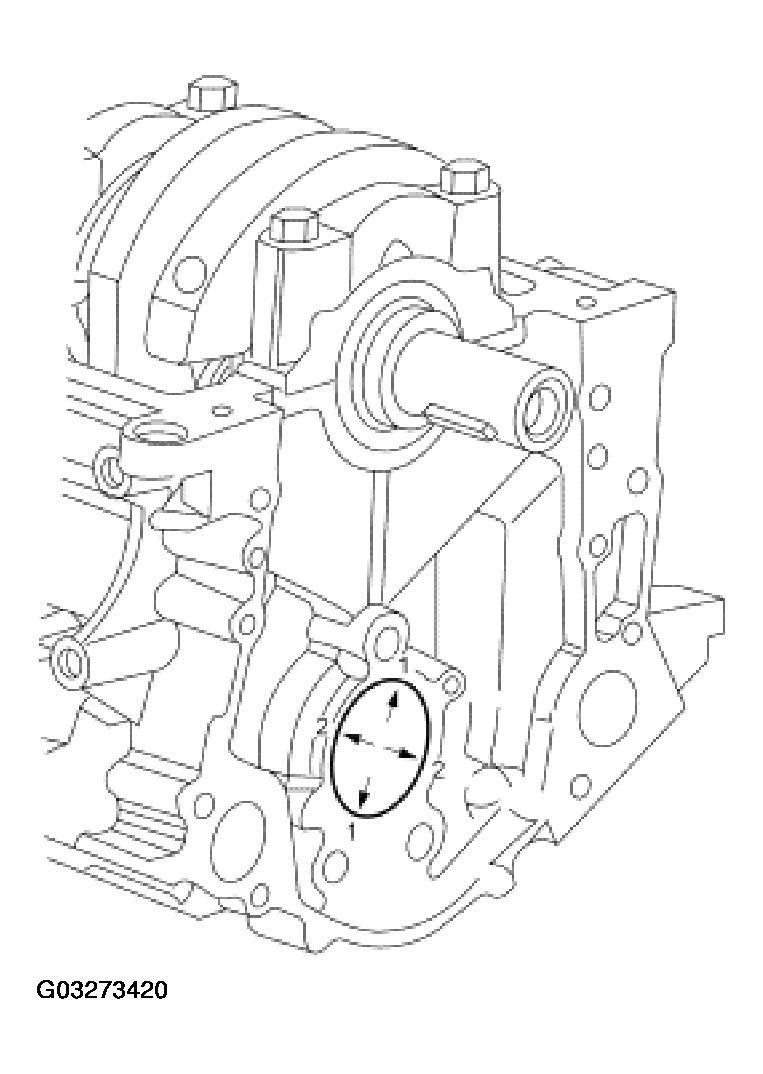

      Fig 1: Measuring Camshaft Bearing - Push Rod Engine
      G03273420Courtesy of FORD MOTOR CO.
