Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the ignition switch lock cylinder.
1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2. Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
If equipped, remove the tilt wheel handle.

Fig 2: Removing Tilt Wheel Handle
Courtesy of FORD MOTOR CO.
Remove the upper and lower steering column shrouds.
- Remove the screws.

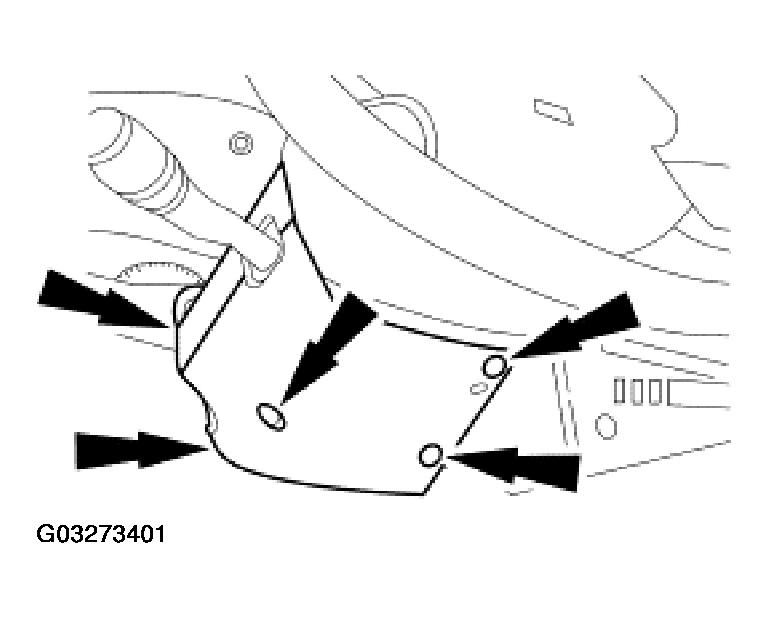

  Fig 3: Removing Upper And Lower Steering Column Shrouds
  Courtesy of FORD MOTOR CO.
Remove the multifunction switch.
1. Remove the screws.
2. Disconnect the electrical connectors.

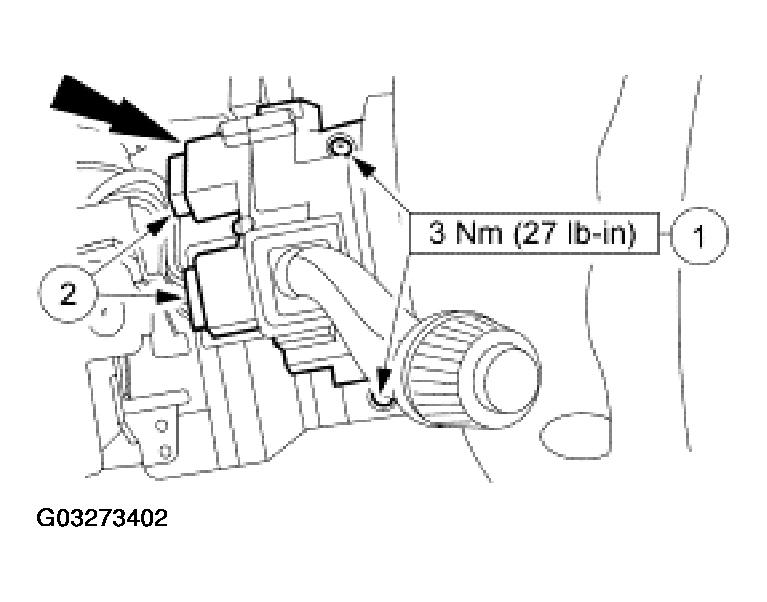

  Fig 4: Removing Multifunction Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
