Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Detach the hood latch release handle and position aside.
1. Remove the bolts.
2. Position the hood latch release handle aside.

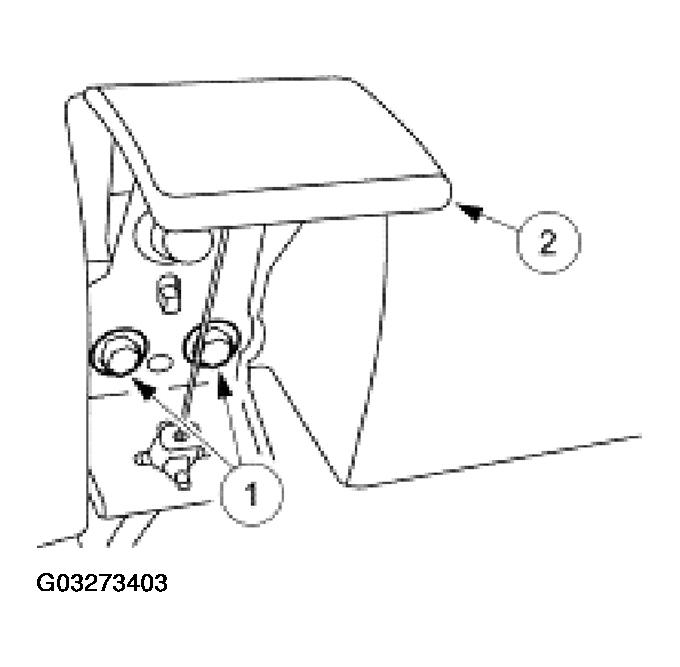

  Fig 1: Detaching Hood Latch Release Handle And Positioning Aside
  Courtesy of FORD MOTOR CO.
Remove the lower instrument panel steering column cover.
1. Remove the screws.
2. Remove the lower instrument panel steering column cover.

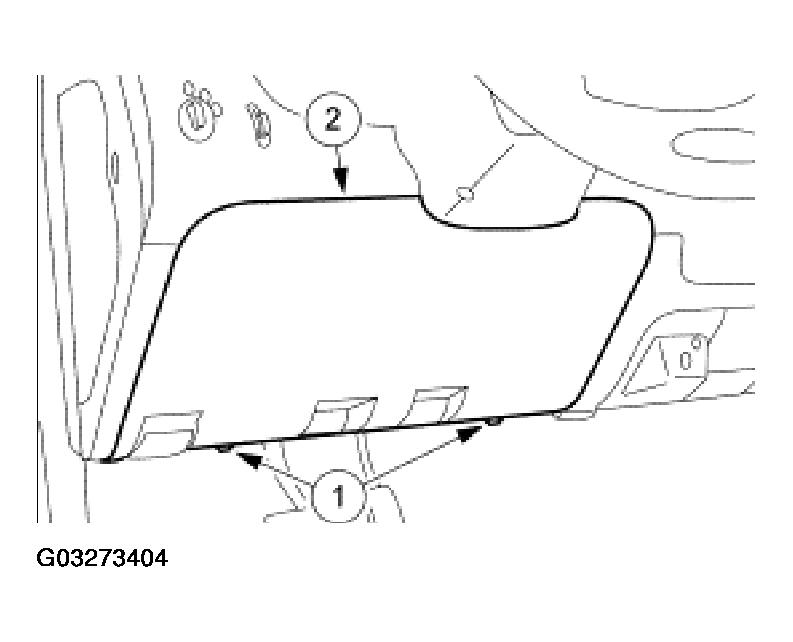

  Fig 2: Removing Lower Instrument Panel Steering Column Cover
  Courtesy of FORD MOTOR CO.
Remove the instrument panel steering column opening cover reinforcement.
1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.

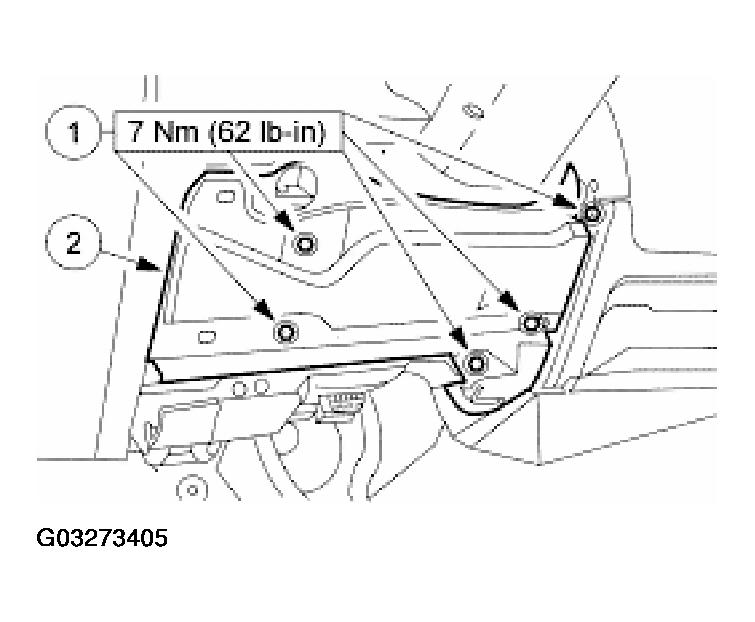

  Fig 3: Removing Instrument Panel Steering Column Opening Cover Reinforcement
  Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.
1. Loosen the bolt.
2. Disconnect the electrical connector.

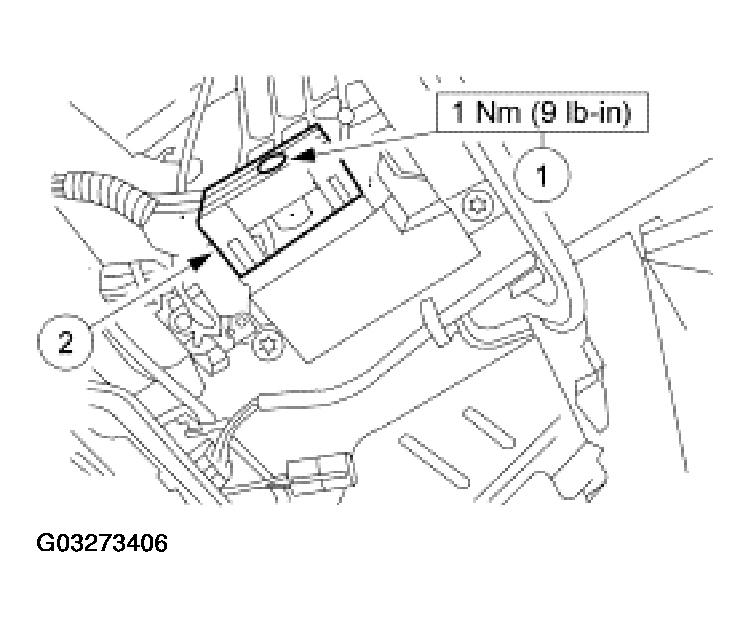

  Fig 4: Disconnecting Electrical Connector
  Courtesy of FORD MOTOR CO.

NOTE: The ignition key should be in the OFF position.

Remove the ignition switch.
1. Remove the screws.
2. Remove the ignition switch.

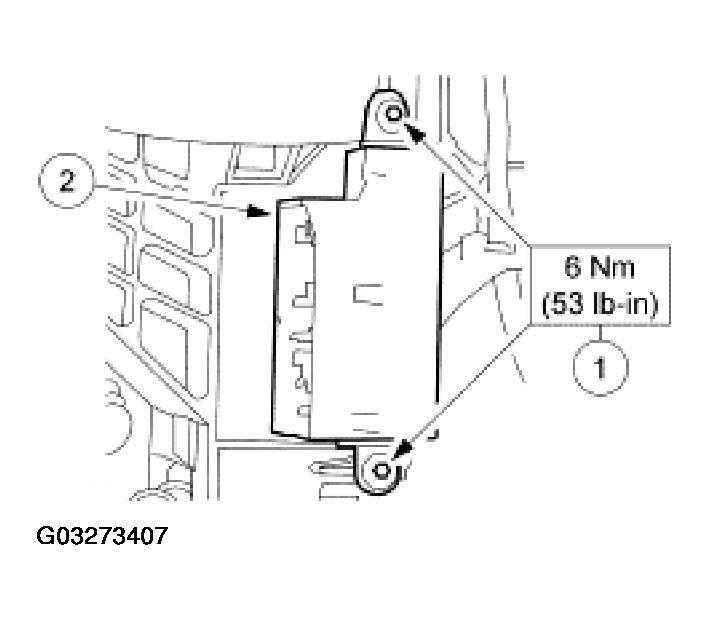

  Fig 5: Removing Ignition Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
