Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the ignition switch lock cylinder (11582).
1. Insert the ignition key and turn to the RUN position.
2. Press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

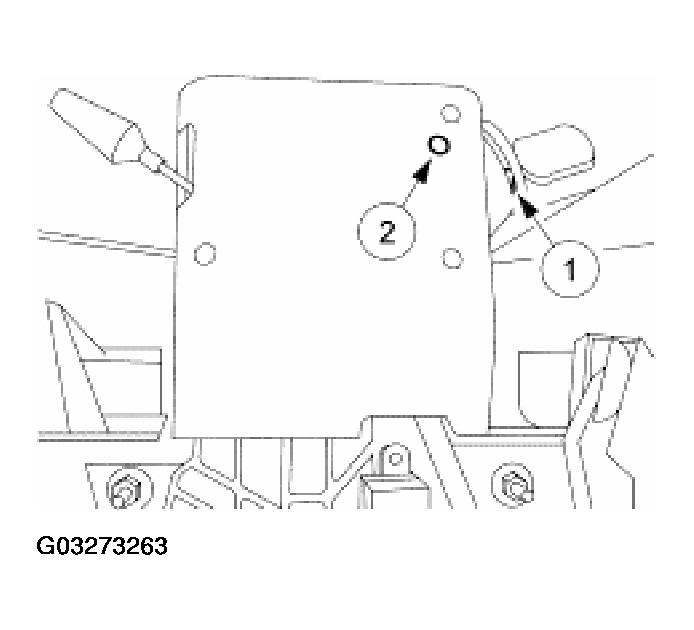

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.

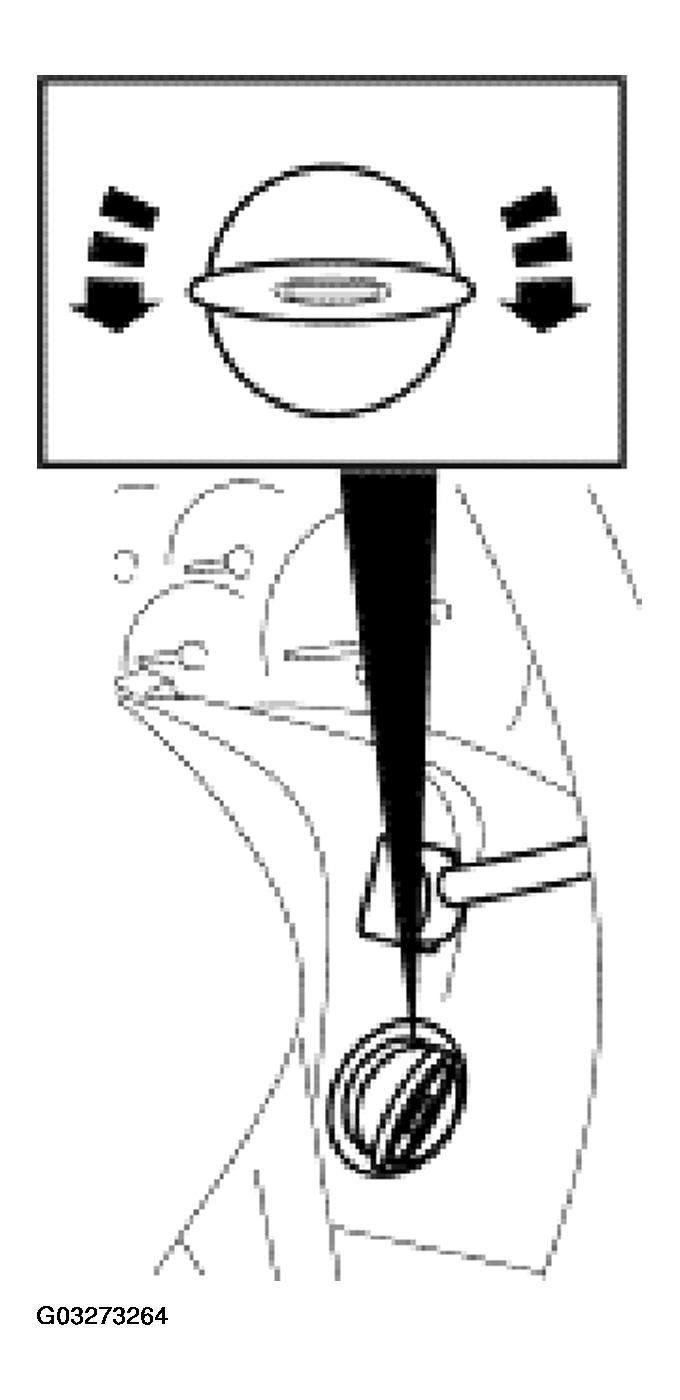

  Fig 2: Verifying Ignition Switch Lock Cylinder Operation
  Courtesy of FORD MOTOR CO.
