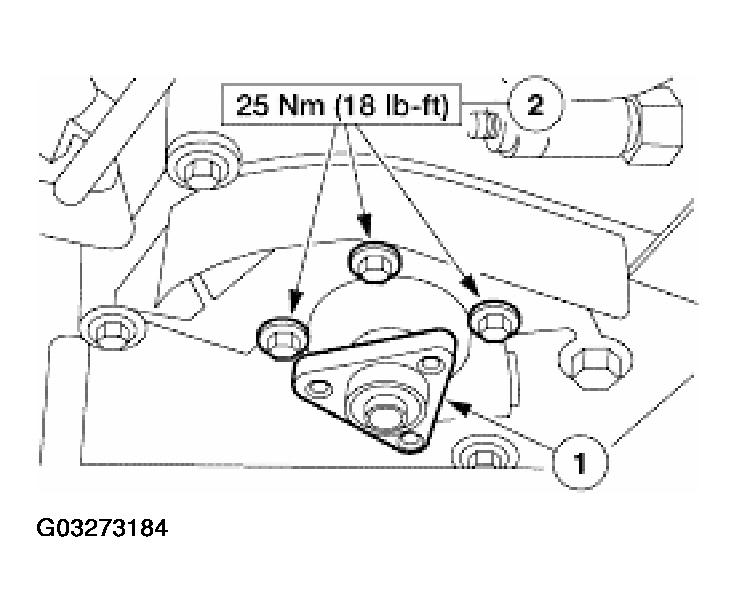

Install the power steering pump.
1. Position the power steering pump.
2. Install the bolts.

  Fig 1: Installing Power Steering Pump
  Courtesy of FORD MOTOR CO.

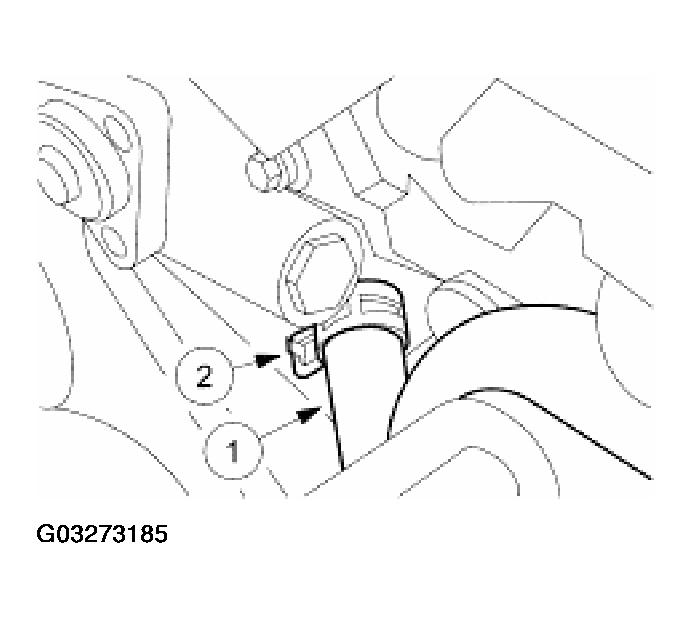

Connect the power steering fluid reservoir outlet hose to the power steering pump.
1. Connect the power steering fluid reservoir outlet hose to the power steering pump.
2. Compress and move the power steering fluid reservoir outlet hose clamp into place.

  Fig 2: Connecting Power Steering Fluid Reservoir Outlet Hose
  Courtesy of FORD MOTOR CO.

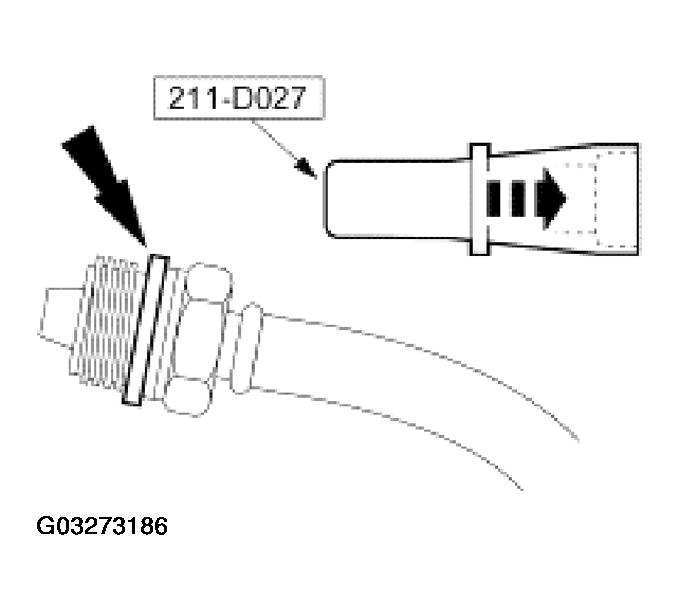

Using the special tool, install a new seal on the power steering pressure hose.

Fig 3: Installing New Seal On Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Connect the power steering pressure hose to the power steering pump.

Fig 4: Connecting Power Steering Pressure Hose To Power Steering Pump
Courtesy of FORD MOTOR CO.

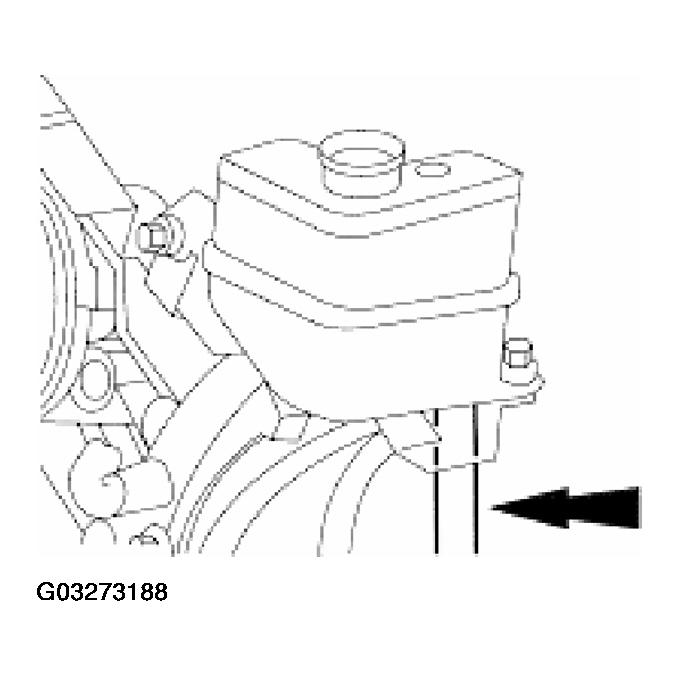

Connect the power steering return line hose to the power steering fluid reservoir.

Fig 5: Connecting Power Steering Return Line Hose
Courtesy of FORD MOTOR CO.

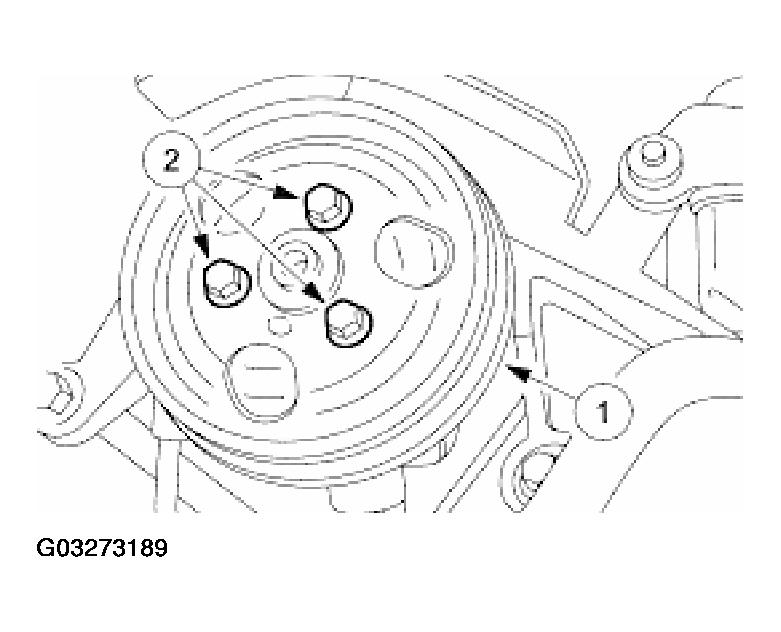

Install the power steering pump pulley.
1. Position the power steering pump pulley.
2. Install the bolts.

  Fig 6: Installing Power Steering Pump Pulley
  Courtesy of FORD MOTOR CO.
Install the drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .

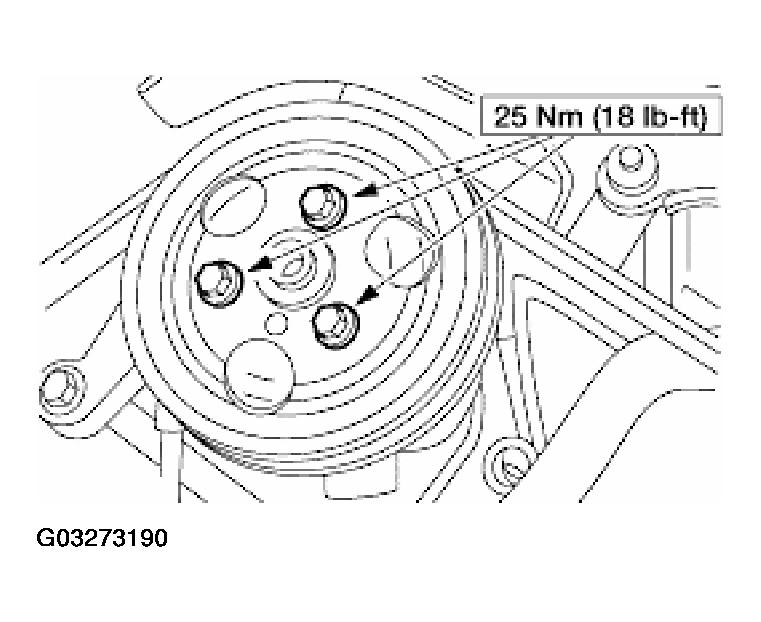

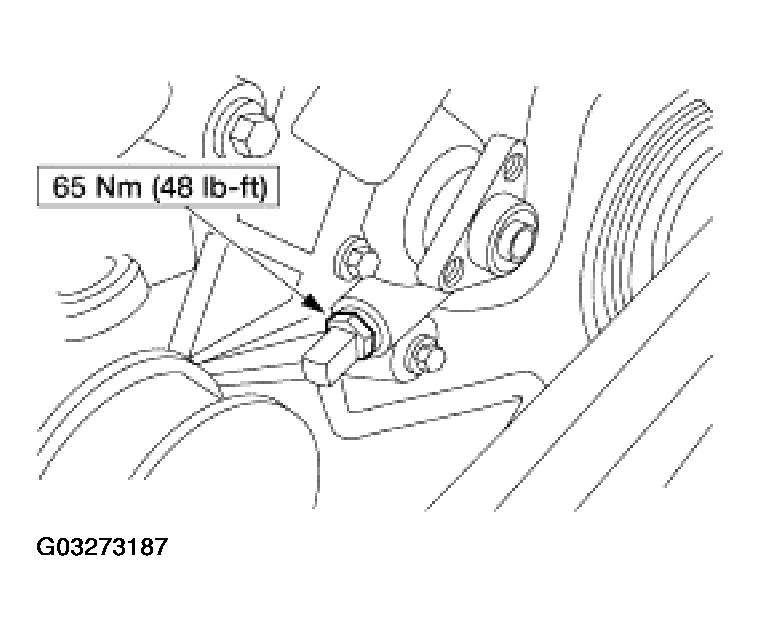

Tighten the power steering pump pulley bolts.

Fig 7: Tightening Power Steering Pump Pulley Bolts
Courtesy of FORD MOTOR CO.
Install the engine cooling fan. For additional information, refer to ENGINE COOLING .
Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
