Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Rotate the tensioner counterclockwise and remove the belt from the power steering pump pulley. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Using the special tool, remove the pulley.

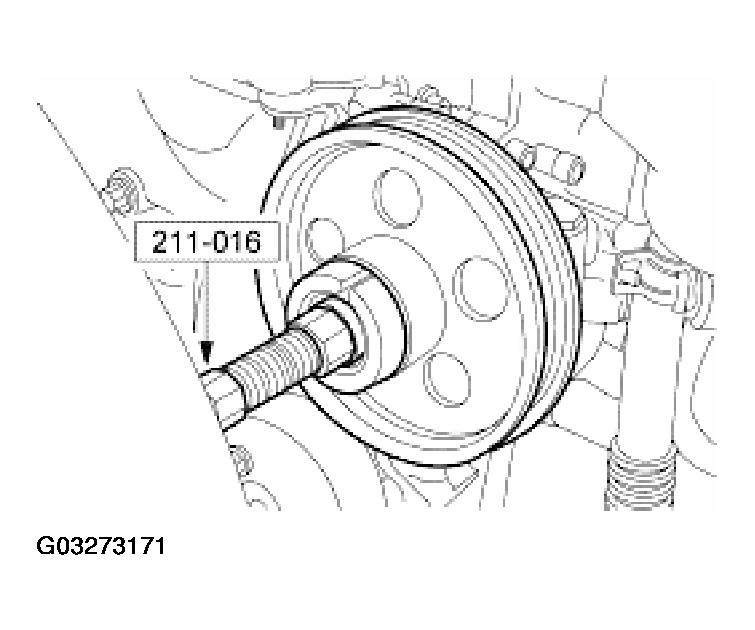

Fig 1: Removing Pulley
Courtesy of FORD MOTOR CO.
Loosen the clamp and remove the hose.

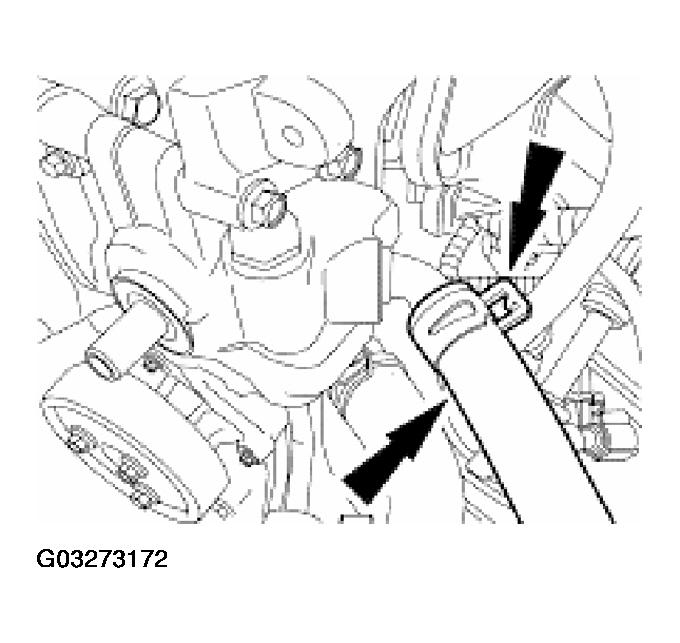

Fig 2: Loosening Clamp And Removing Hose
Courtesy of FORD MOTOR CO.
Disconnect the pressure line.
- Remove and discard the seal.

  Fig 3: Disconnecting Pressure Line
  Courtesy of FORD MOTOR CO.
Remove the bolts and the bracket.

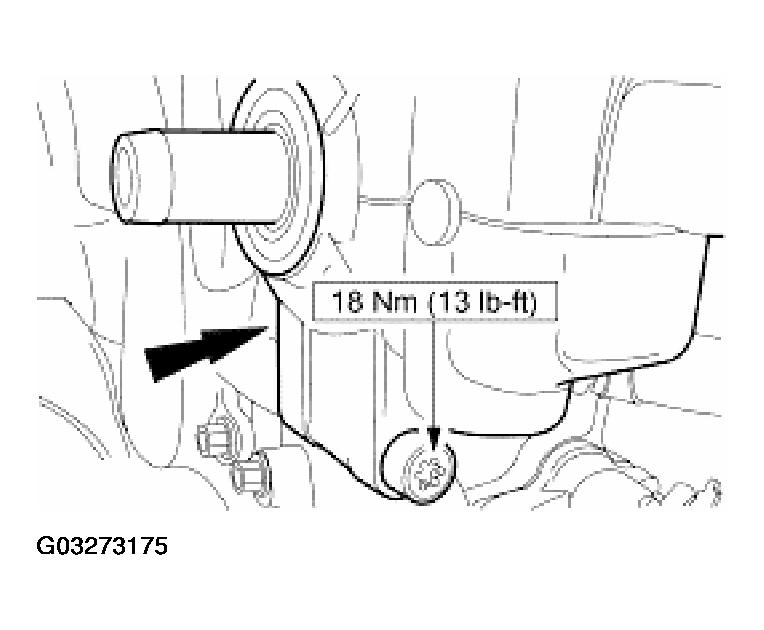

Fig 4: Removing Bracket
Courtesy of FORD MOTOR CO.
Remove the bolt and the power steering pump.

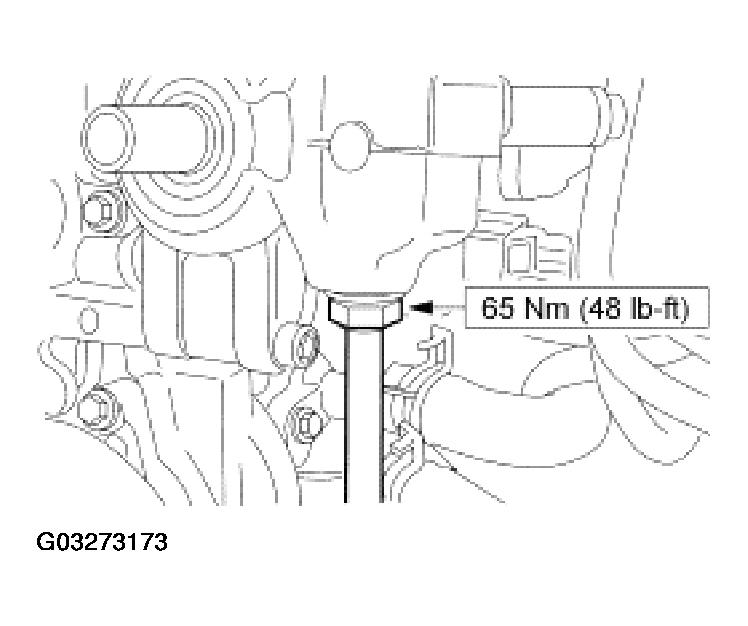

Fig 5: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Using the special tool, install a new seal on the pressure line.

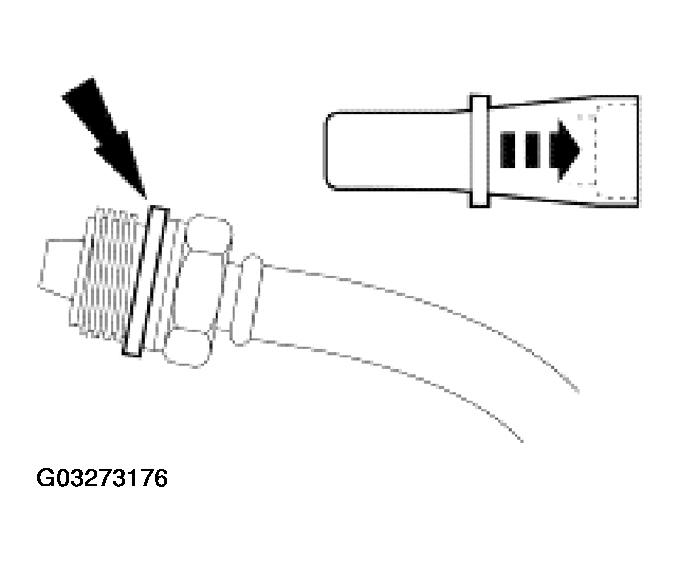

  Fig 6: Installing New Seal On Pressure Line
  Courtesy of FORD MOTOR CO.
Fill and leak test the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
