Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan. For additional information, refer to ENGINE COOLING .
  2. Loosen the power steering pump pulley bolts.

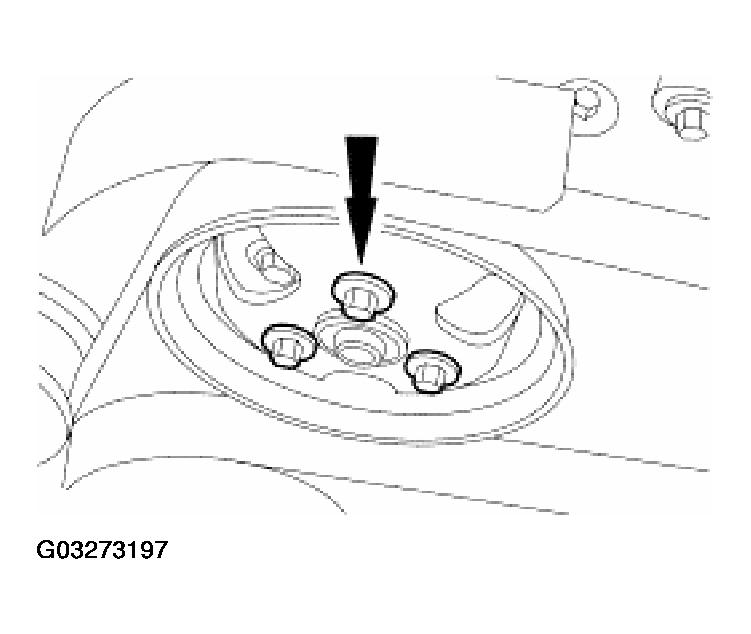

    Fig 1: Loosening Power Steering Pump Pulley Bolts
    G03273197Courtesy of FORD MOTOR CO.
  3. Remove the drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  4. Remove the bolts and the power steering pump pulley.

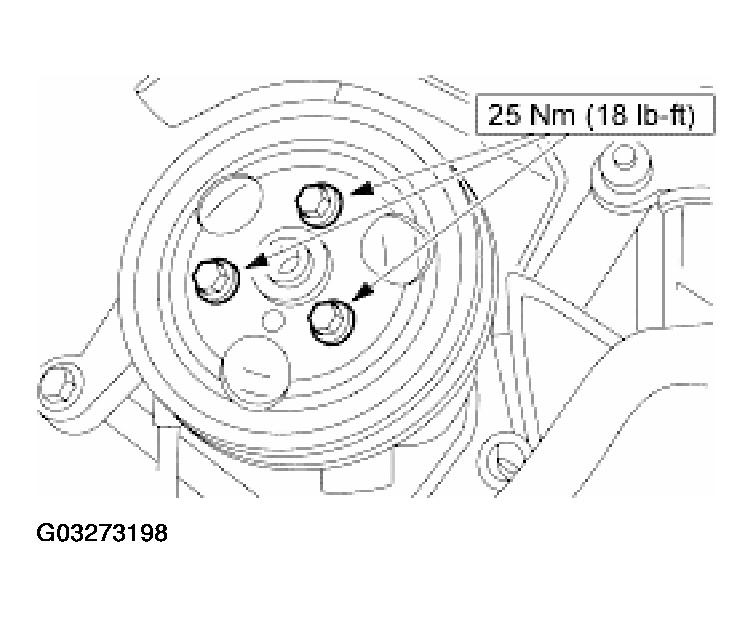

    Fig 2: Removing Power Steering Pump Pulley
    G03273198Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
