Power Steering Pump Pulley - 2.3L and 3.0L: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    3.0L Engine

  1. Using the special tool, install the power steering pump pulley.

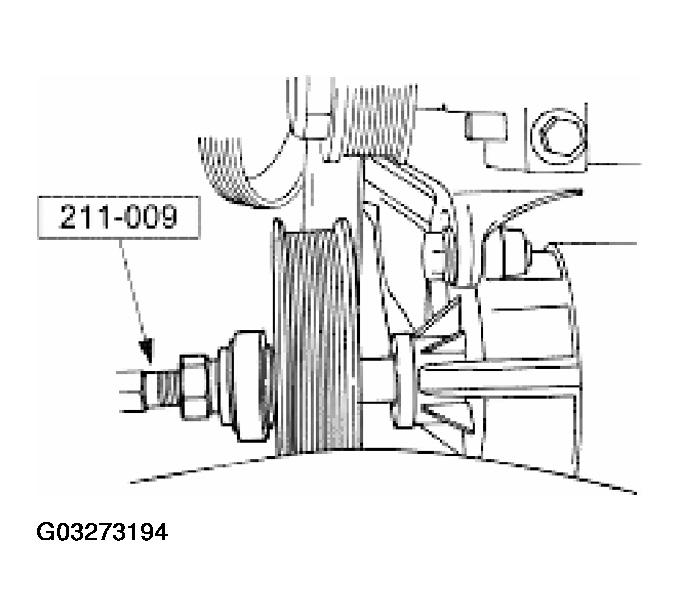

    Fig 1: Installing Power Steering Pump Pulley
    G03273194Courtesy of FORD MOTOR CO.

    2. 2.3L Engine

  2. Using the special tool, install the power steering pump pulley.

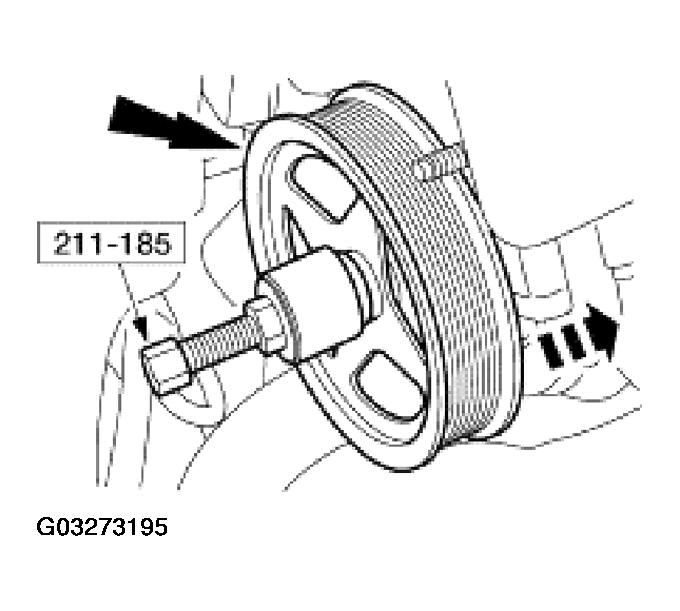

    Fig 2: Installing Power Steering Pump Pulley
    G03273195Courtesy of FORD MOTOR CO.

    3. All Vehicles

    NOTE: 2.3L engine shown, 3.0L engine similar.

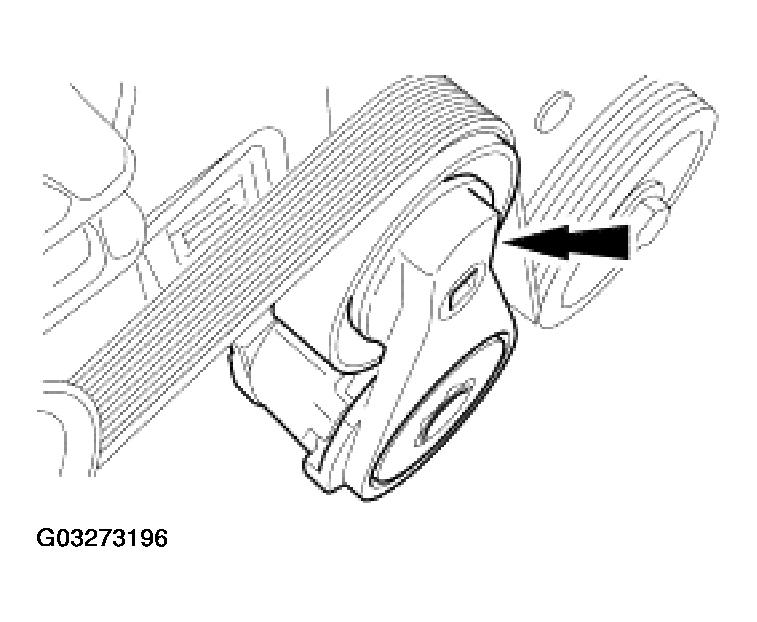

    Fig 3: Installing Belt To Power Steering Pump Pulley
    G03273196Courtesy of FORD MOTOR CO.
  3. Rotate the tensioner clockwise on 2.3L engines, or counterclockwise on 3.0L engines, and install the belt to the power steering pump pulley.

    4. 2.3L Engine

  4. Install the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
