Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 2.3L is shown, 4.0L is similar.

Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Loosen the clamp and disconnect the hose.
- Drain the fluid into a suitable container.

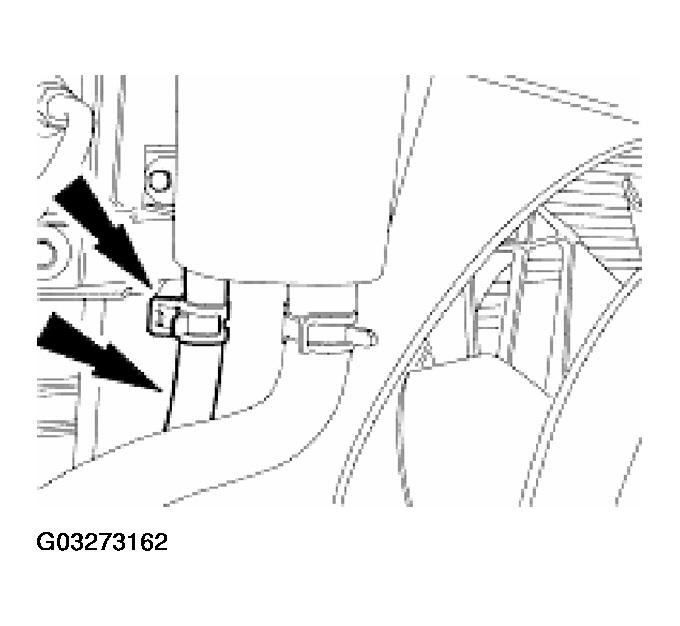

  Fig 1: Loosening Clamp And Disconnecting Hose
  Courtesy of FORD MOTOR CO.
Loosen the clamp and disconnect the hose.

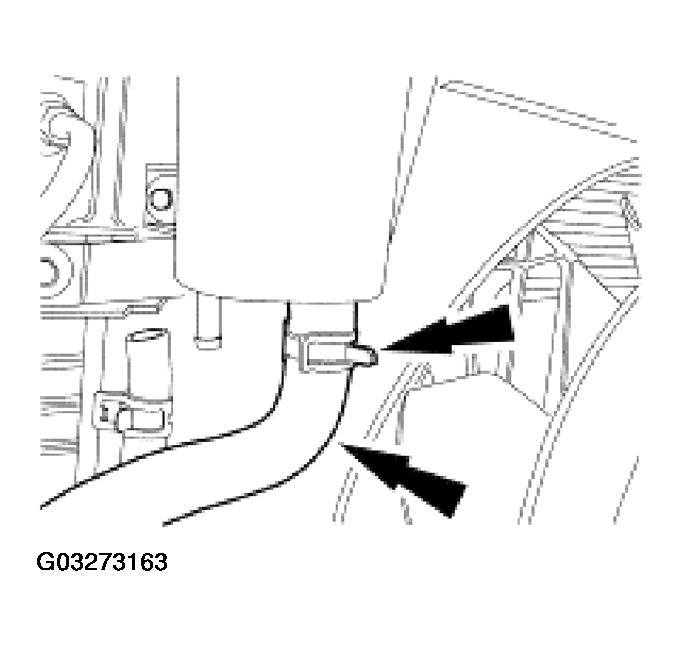

Fig 2: Loosening Clamp And Disconnecting Hose
Courtesy of FORD MOTOR CO.
Remove the bolts and the reservoir.

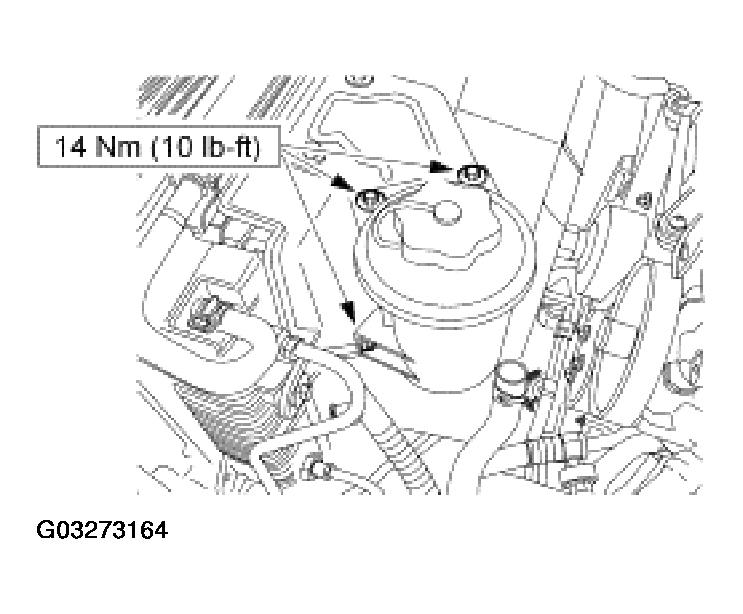

Fig 3: Removing Reservoir
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill, purge and leak test the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
