Inner Tie Rod: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The boots and clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight the vacuum generated during turning will draw water and contamination into the gear causing premature damage.

CAUTION: Zip ties do not produce an airtight seal and must not be used.

CAUTION: The inner ball joint grease is not compatible with water and contamination trapped in the grease will degrade the life of the joint.

CAUTION: If present, the orientation of the vent tube must be noted so the boots and vent tubes can be installed in the correct location.

Coil Spring Suspension Vehicles

Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
Loosen the tie-rod end jam nuts.

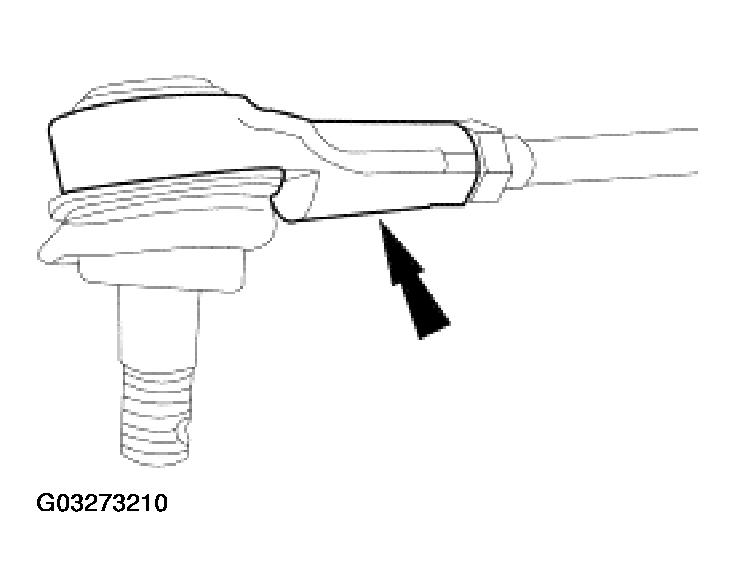

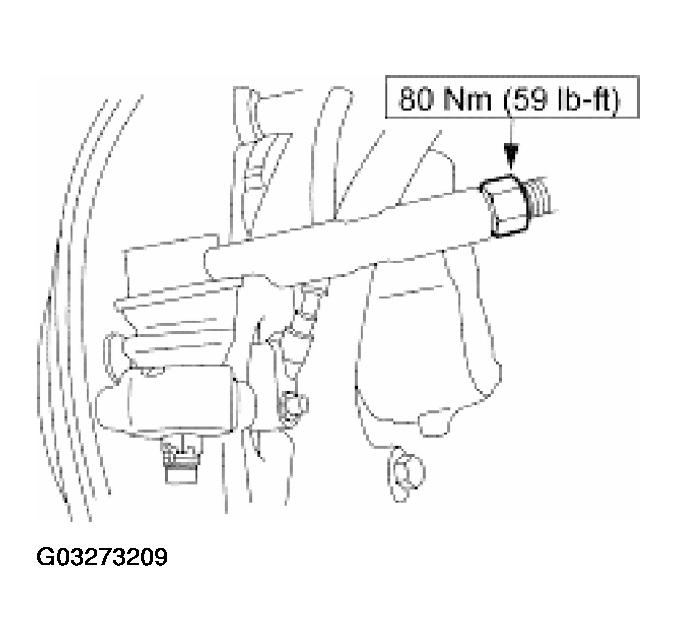

Fig 1: Loosening Tie-Rod End Jam Nuts
Courtesy of FORD MOTOR CO.
Remove and discard the cotter pins and nuts.

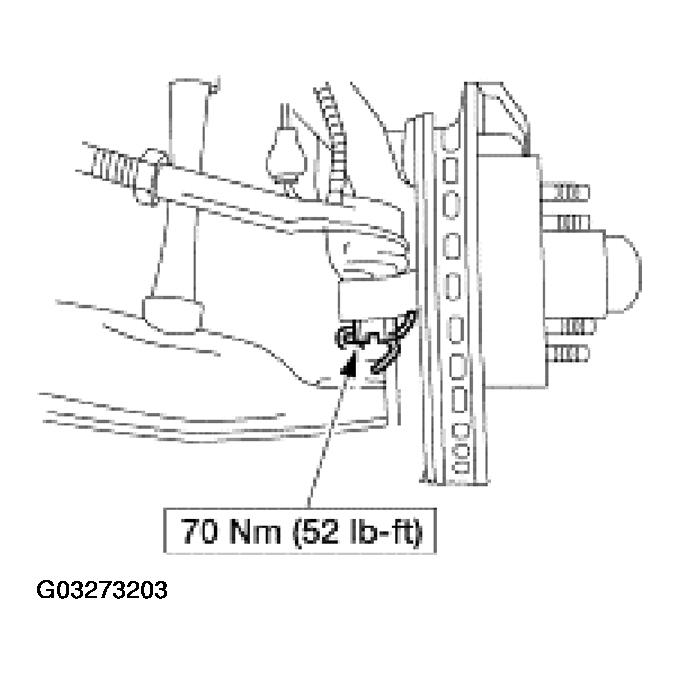

Fig 2: Removing Cotter Pins And Nuts
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the tie -rod end boot when installing the special tool.

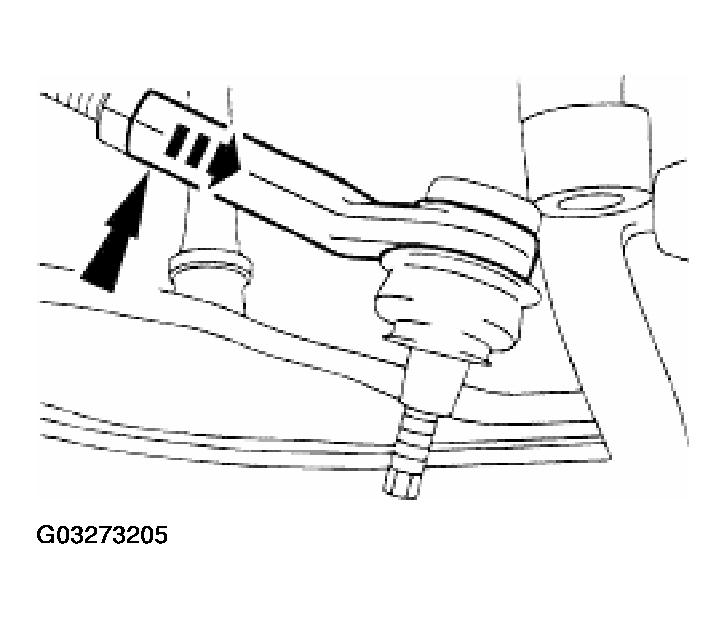

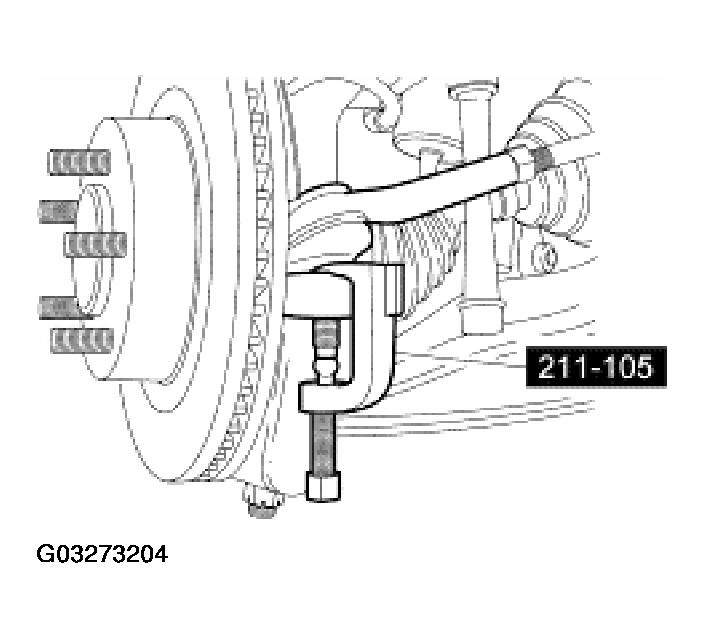

Fig 3: Disconnecting Tie-Rod Ends

Courtesy of FORD MOTOR CO.

Using the special tool, disconnect the tie-rod ends.

NOTE: Note the number of times the tie -rod ends turn for assembly reference.

Fig 4: Removing Tie-Rod Ends

Courtesy of FORD MOTOR CO.

Remove the tie-rod ends.
Remove the tie-rod end jam nut.

NOTE: If repairing the RH side, it will be necessary to pull back the LH inner tie-rod boot to hold the steering gear.

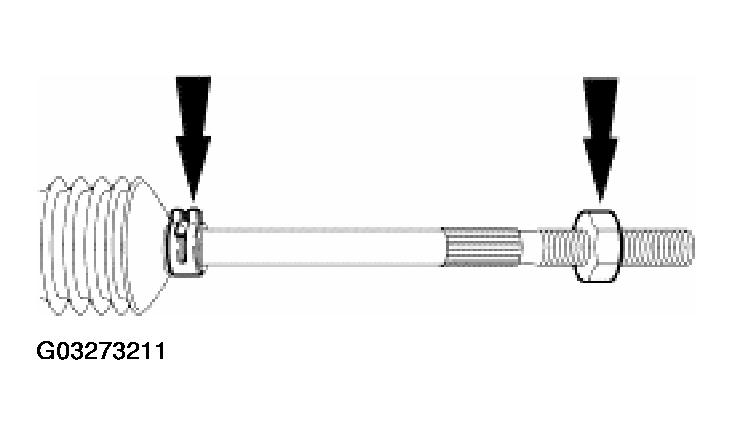

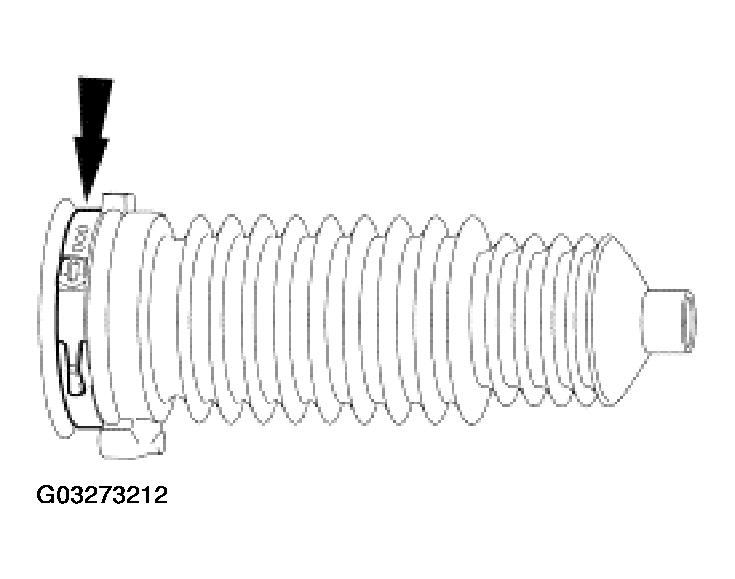

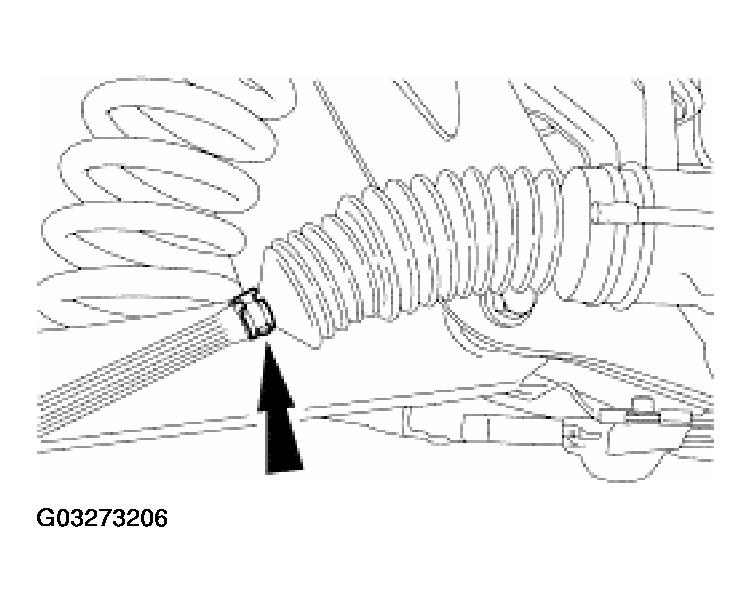

Fig 5: Removing Steering Ball Stud Boot Seal Clamps

Courtesy of FORD MOTOR CO.

Remove the inner and outer front suspension steering ball stud boot seal clamps.
Remove the front suspension steering ball stud boot seal.

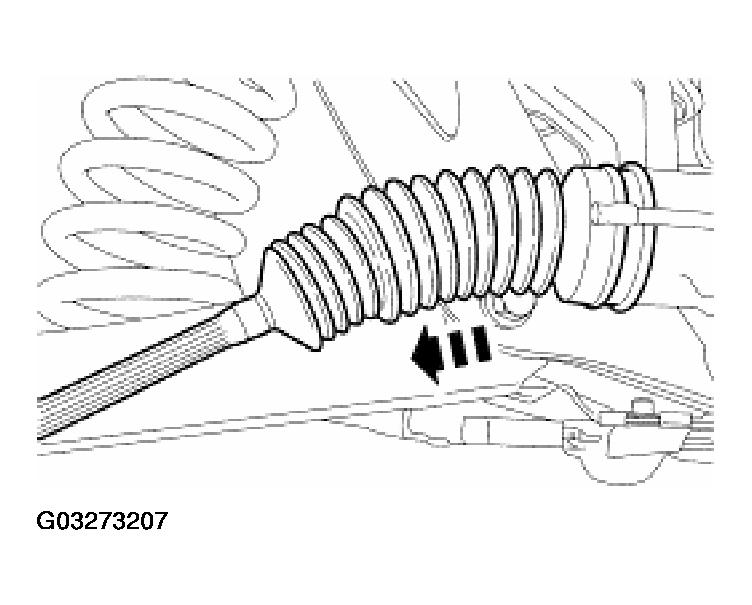

Fig 6: Removing Steering Ball Stud Boot Seal
Courtesy of FORD MOTOR CO.

CAUTION: Place the steering gear at the center position. Use a 21 mm (0.82 in) crowfoot on the flat of the rack gear to resist rotation and to prevent damage during removal and installation of the front wheel spindle tie-rod.

NOTE: An assistant may be needed for removal of the RH front wheel spindle tie-rod.

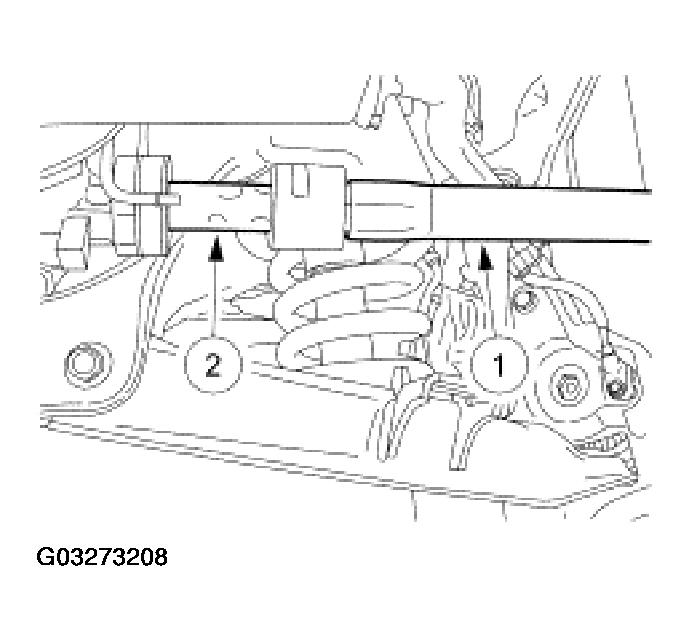

Fig 7: Removing Front Wheel Spindle Tie-Rod

Courtesy of FORD MOTOR CO.

Using the special tool (1), remove the front wheel spindle tie-rod (2).

Torsion Bar Suspension Vehicles

Loosen the tie-rod end jam nuts.

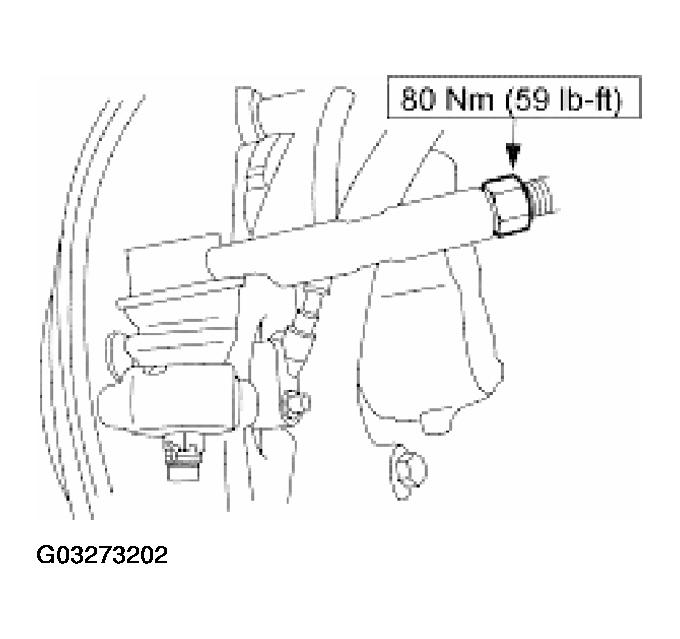

Fig 8: Loosening Tie-Rod End Jam Nuts
Courtesy of FORD MOTOR CO.
Remove the steering gear. For additional information, refer to GEAR - COIL SPRING SUSPENSION or GEAR - TORSION BAR SUSPENSION .

NOTE: Note the number of times the tie-rod ends turn for assembly reference.

Fig 9: Removing Tie-Rod Ends

Courtesy of FORD MOTOR CO.

Remove the tie-rod ends.

NOTE: If repairing the RH side, it will be necessary to pull back the LH inner tie-rod boot to hold the steering gear.

Fig 10: Removing Tie-Rod End Jam Nuts

Courtesy of FORD MOTOR CO.

Remove the tie-rod end jam nuts and outer front suspension steering ball stud boot seal clamps.
Remove the inner front suspension steering ball stud boot seal clamps and the boot seals.

Fig 11: Removing Inner Steering Ball Stud Boot Seal Clamps
Courtesy of FORD MOTOR CO.

NOTE: An assistant may be needed for removal of the RH front wheel spindle tie-rod.

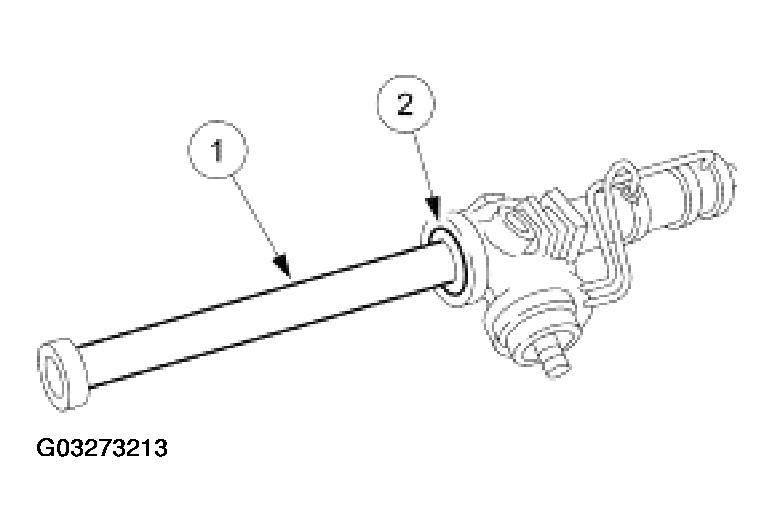

Fig 12: Removing Front Wheel Spindle Tie-Rod

Courtesy of FORD MOTOR CO.

Using the (1) special tool, remove the (2) front wheel spindle tie-rod.

All Vehicles

CAUTION: Thoroughly remove any dirt or abrasive material that is present. This material is extremely harmful to the steering gear.

Thoroughly clean and inspect all the parts to be reused. Replace the parts as necessary.
