Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the nuts.

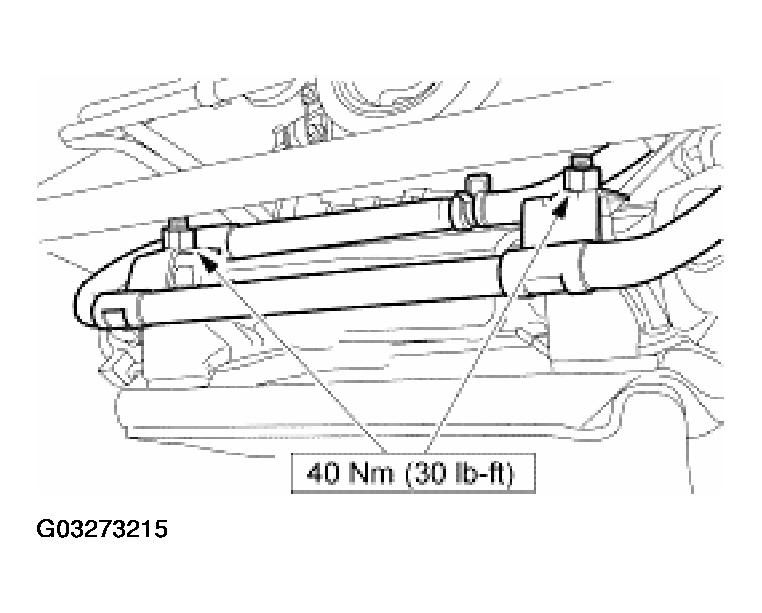

Fig 1: Removing Nuts
Courtesy of FORD MOTOR CO.
Loosen the clamp and disconnect the hose.
- Drain the fluid into a suitable container.

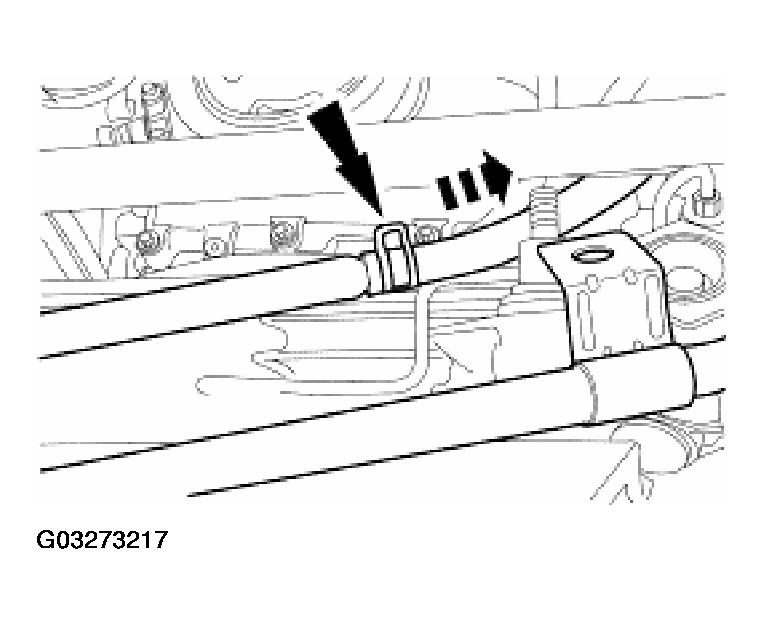

  Fig 2: Loosening Clamp And Disconnecting Hose
  Courtesy of FORD MOTOR CO.
Loosen the clamp, disconnect the hose and remove the cooler.

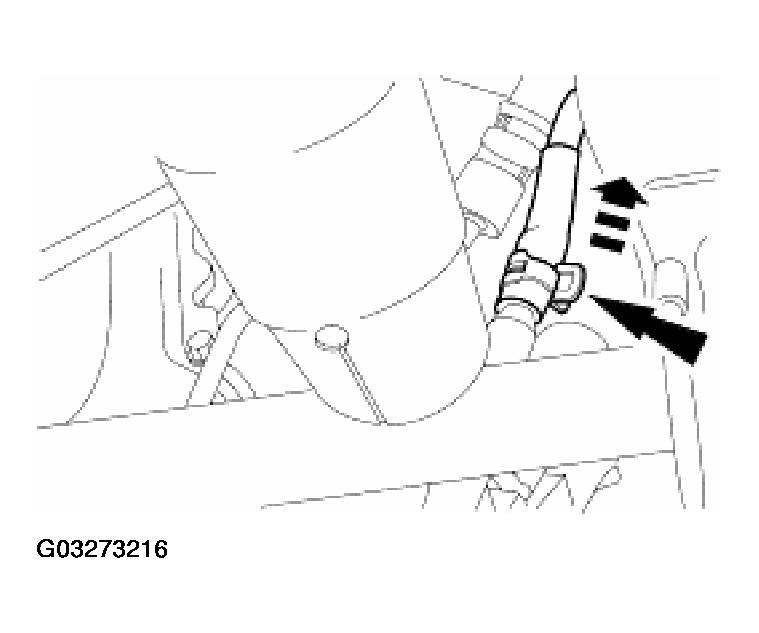

Fig 3: Disconnecting Hose And Removing Cooler
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
