Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. Refer to JACKING & LIFTING .

NOTE: Clean off dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.

Remove the rear anti-lock brake system (ABS) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

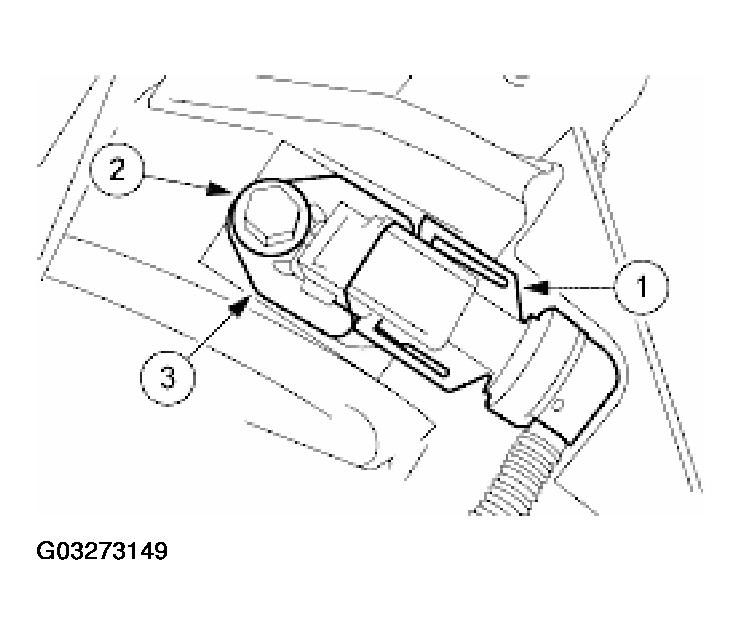

  Fig 1: Removing Rear Anti-Lock Brake System Sensor
  Courtesy of FORD MOTOR CO.

NOTE: Thoroughly clean the mounting surface.

NOTE: Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the O-ring with axle lubricant.

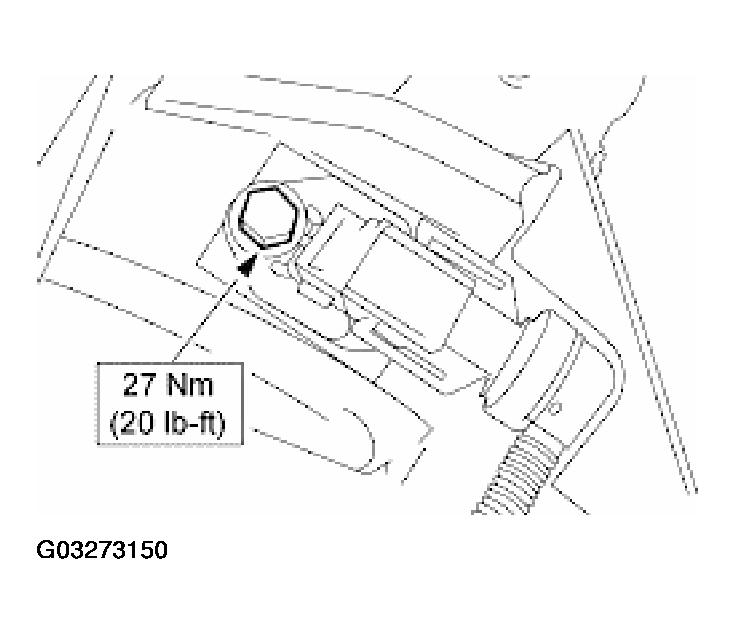

Fig 2: Identifying Tightening Torque Of Bolt

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
