Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rotor shield. Refer to FRONT DRIVE AXLE/DIFFERENTIAL - DANA 35 .
Disconnect the electrical connector.

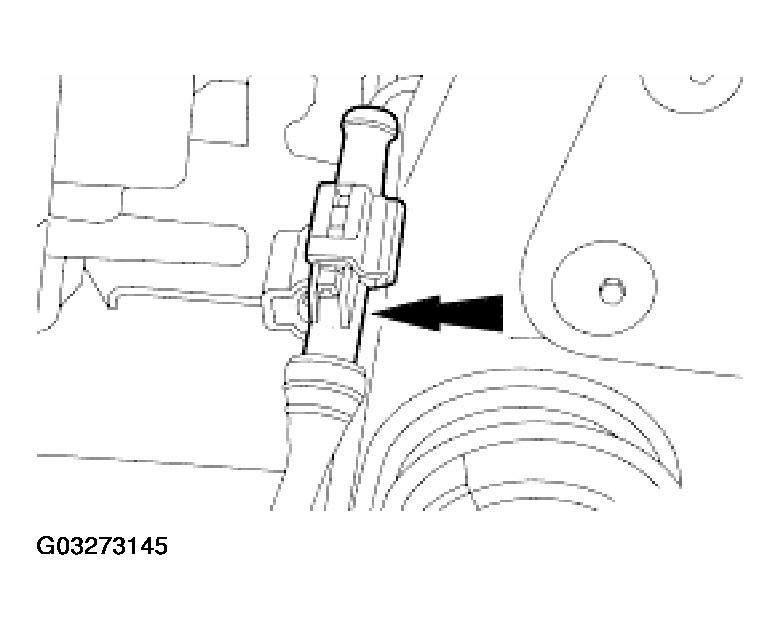

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Unclip the wire from the vehicle frame.

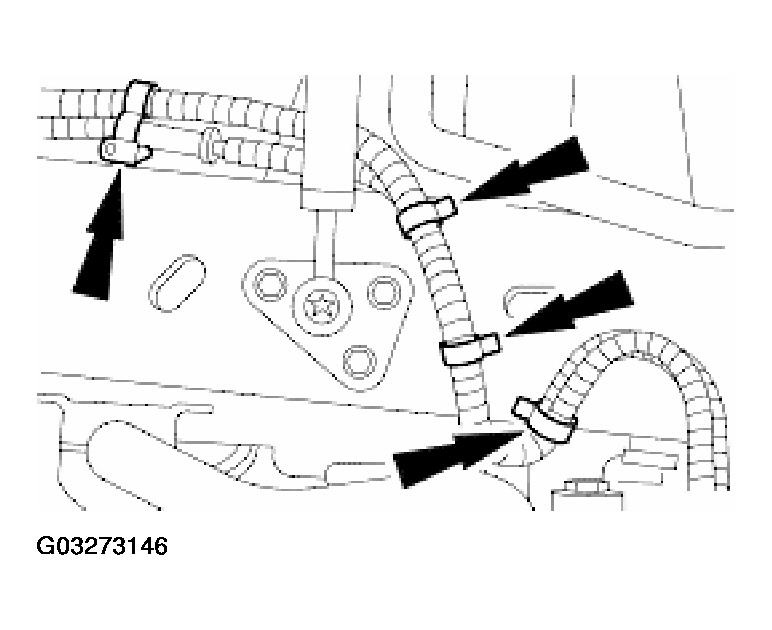

Fig 2: Uncliping Wire From Vehicle Frame
Courtesy of FORD MOTOR CO.
Remove the bolt.

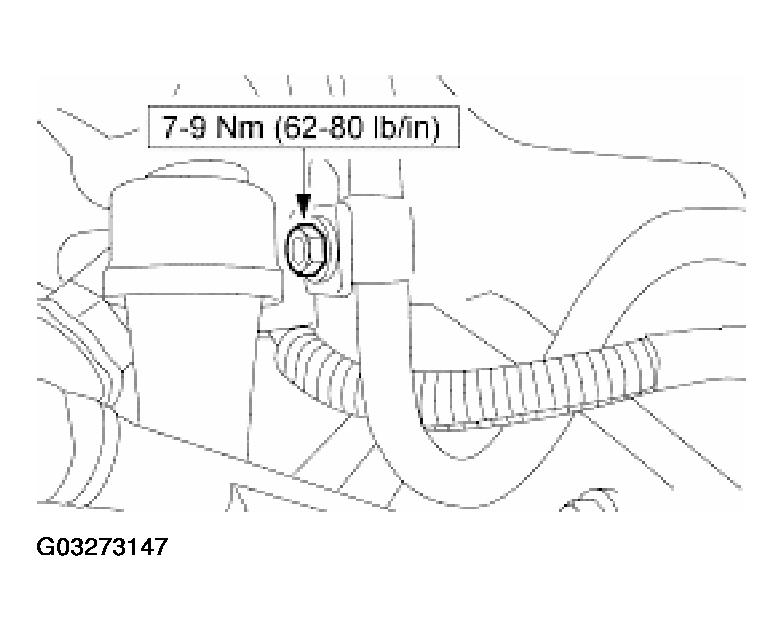

Fig 3: Removing Bolt
Courtesy of FORD MOTOR CO.

NOTE: Plug the sensor mount opening and thoroughly clean the mounting surface. Apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A meeting Ford Specification ESA-M1C198-A.

Remove the front wheel speed sensor.
1. Remove the bolt and the sensor.

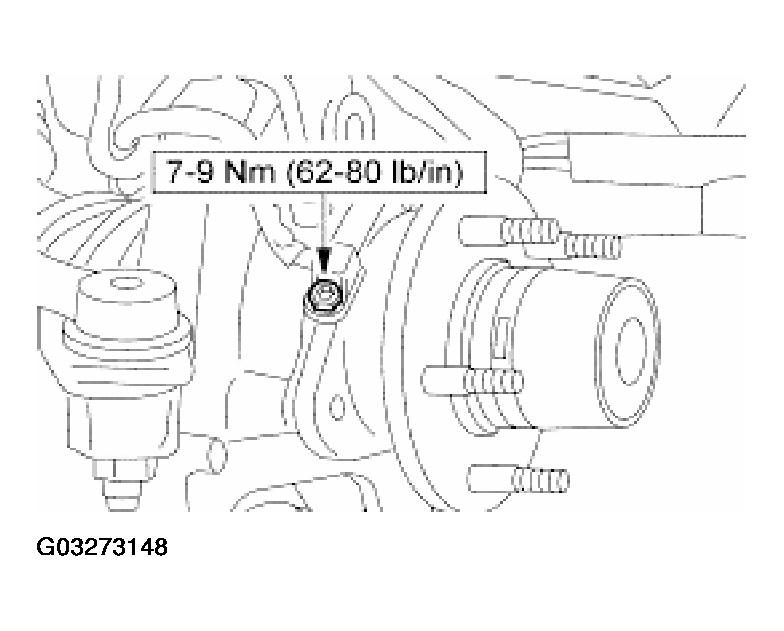

  Fig 4: Removing Bolt And Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
