Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING & LIFTING .
Disconnect the front anti-lock brake sensor wire from the vehicle frame.
1. Disconnect the electrical connector.
2. Unclip the front anti-lock brake sensor wire from the vehicle frame.

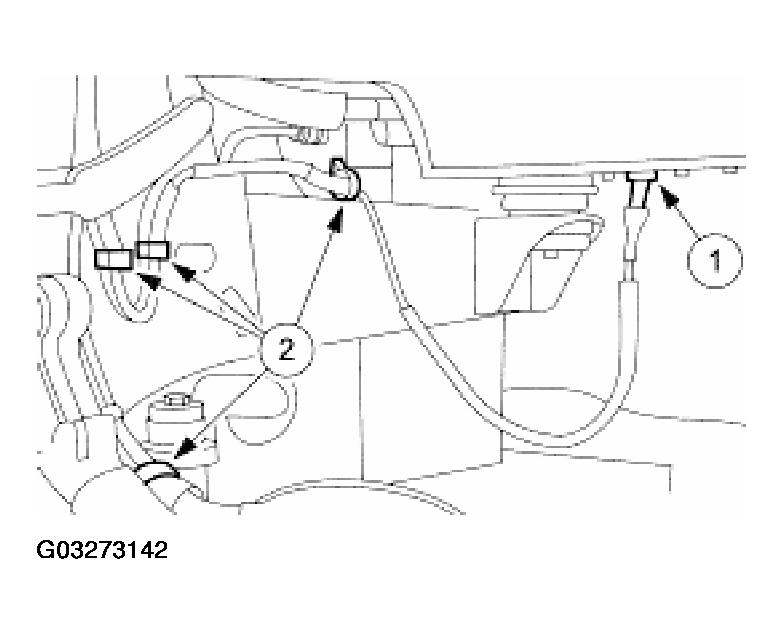

  Fig 1: Disconnecting Front Anti-Lock Brake Sensor Wire From Vehicle Frame
  Courtesy of FORD MOTOR CO.
Remove the front anti-lock brake sensor.
1. Remove the bolt.
2. Remove the front anti-lock brake sensor.

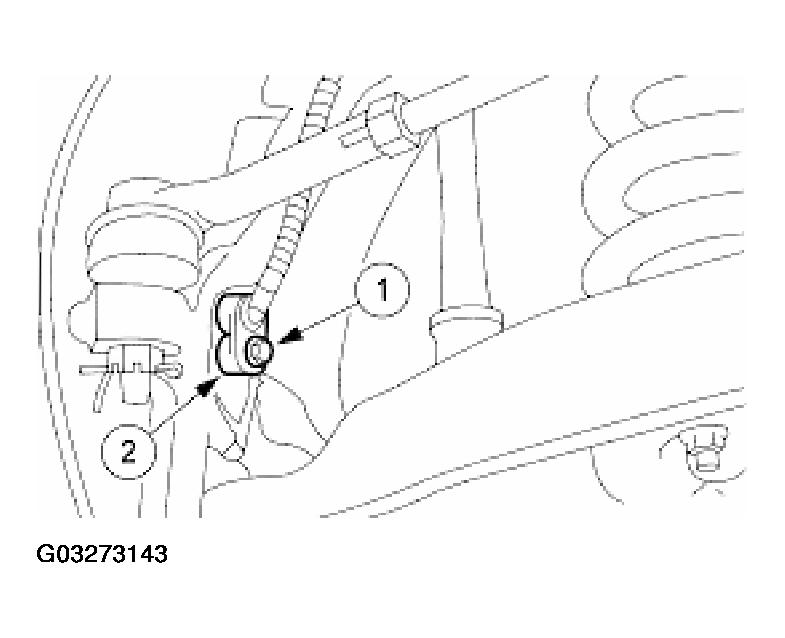

  Fig 2: Removing Front Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.

NOTE: Plug the sensor mount opening and thoroughly clean the mounting surface. Apply grease.

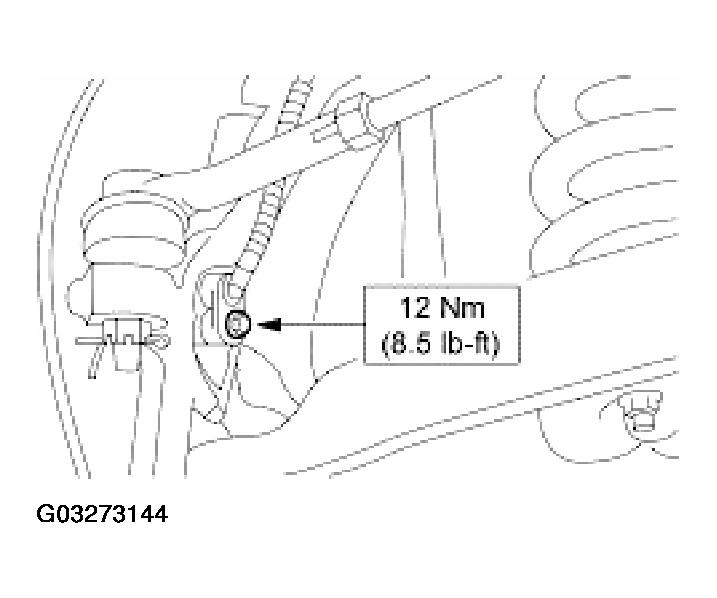

Fig 3: Identifying Tightening Torque Of Bolt

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
