Removal And Installation: Bushing: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Axle tube bushing removal shown, axle housing bushing is a similar procedure.

Remove the front axle assembly. For additional information, refer to AXLE ASSEMBLY - FRONT .
Position the tube bushing removal tools.
1. Position the Bushing Cup Remover/Replacer.
2. Position the Drawbolt.
3. Thread the Bushing Remover on the Drawbolt.

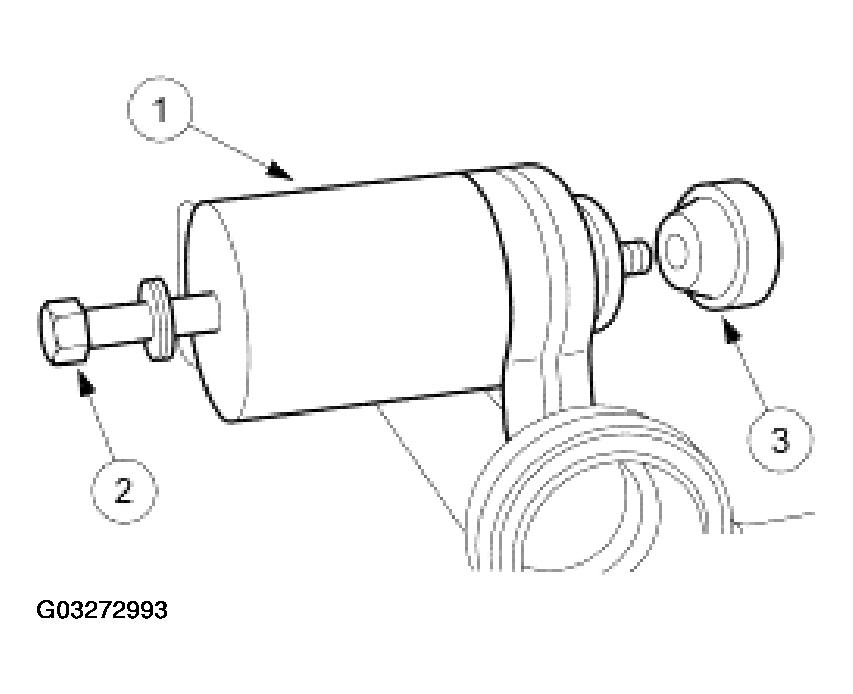

  Fig 1: Positioning Tube Bushing Removal Tools
  Courtesy of FORD MOTOR CO.
Tighten the Drawbolt to remove the tube bushing.

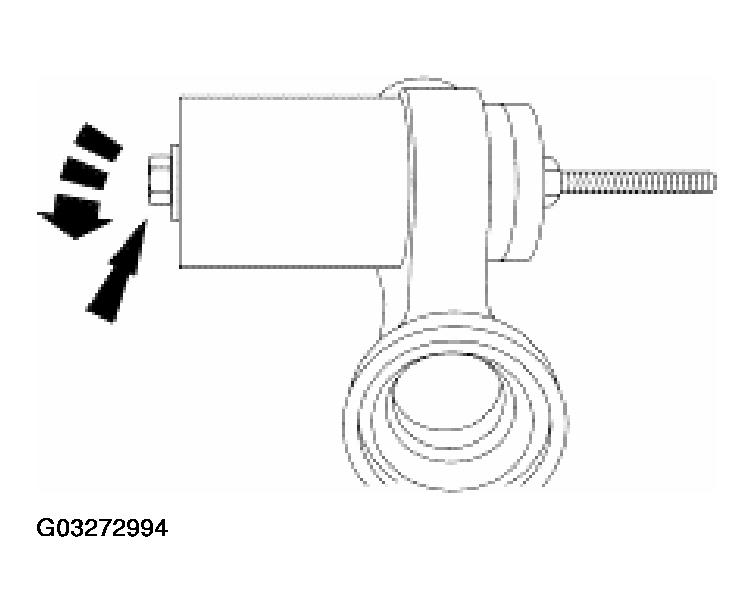

Fig 2: Removing Tube Bushing
Courtesy of FORD MOTOR CO.
