Axle and Differential Drain and Refill
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft SAE 80W-90 Thermally Stable 4x4 Axle Lubricant | WSP-M2C18797-A |
- Raise the vehicle on a hoist.
- Remove the differential fill plug.

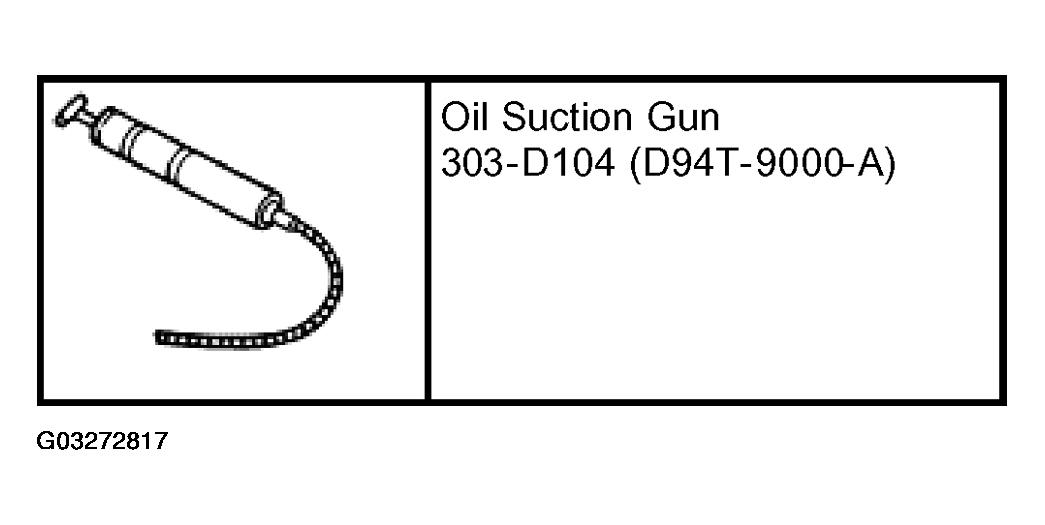

- Use the oil suction gun and remove the axle lubricant through the fill opening.
- If necessary, a cleaning solvent can be injected to remove any contaminants.
- Repeat Step 3 to remove the cleaning solvent.
- Refill the differential with lubricant.
- Install the fill plug and tighten.
