Disassembly And Assembly: Axle: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

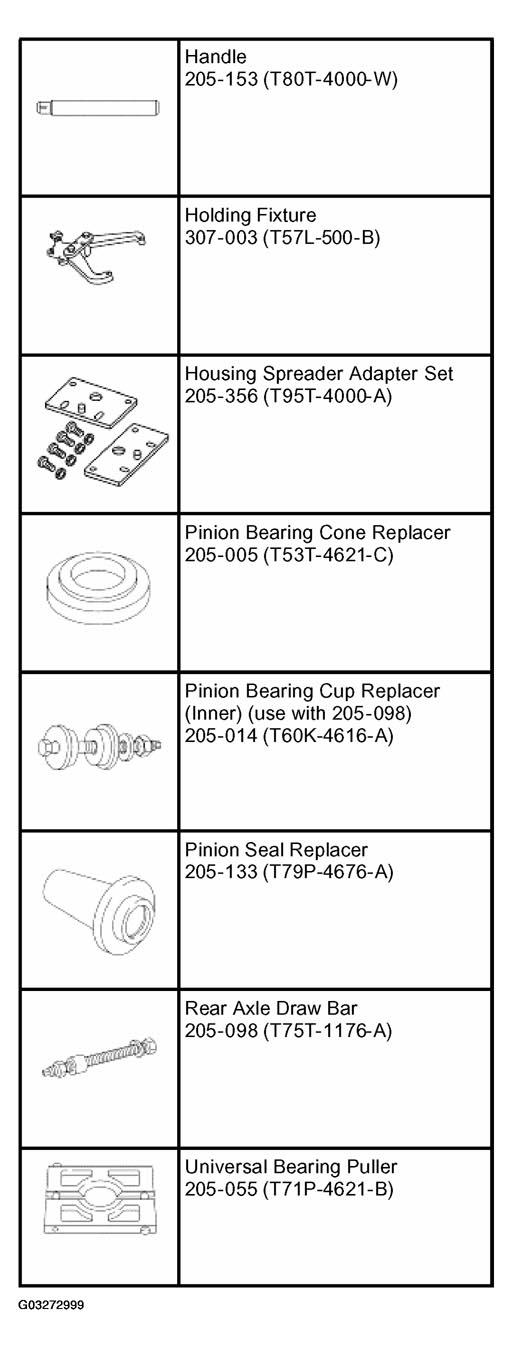

Fig 1: Identifying Special Tools (1 Of 3)

Courtesy of FORD MOTOR CO.

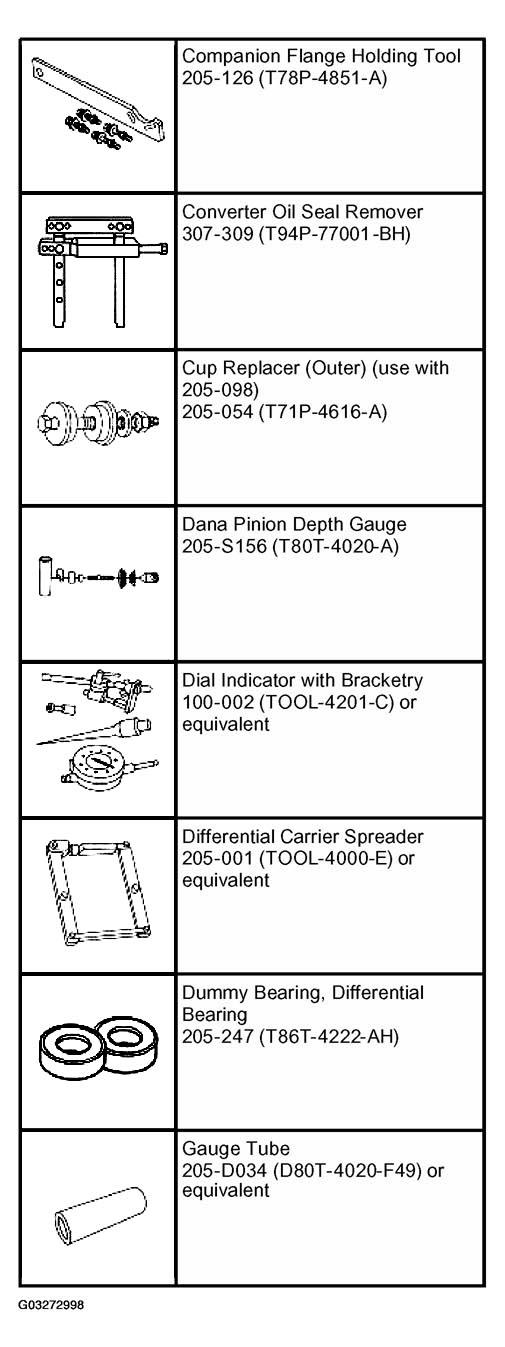

Fig 2: Identifying Special Tools (2 Of 3)

Courtesy of FORD MOTOR CO.

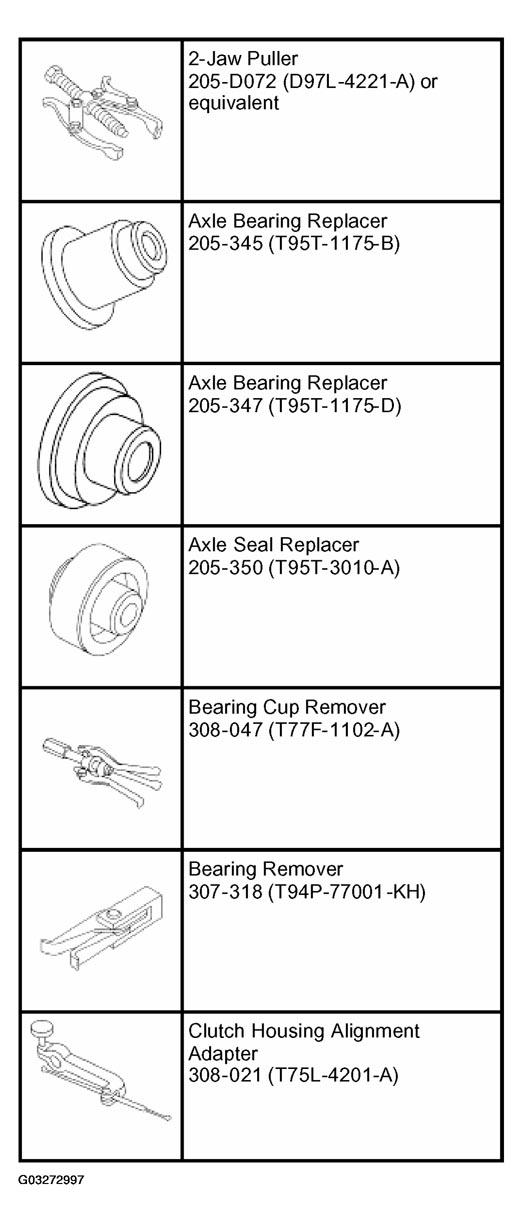

Fig 3: Identifying Special Tools (3 Of 3)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft SAE 80W-90 Thermally Stable 4x4 Axle Lubricant	WSP-M2C197-A
Ford Black Silicone Rubber F4AZ-19562-B	WSE-M4G323-A1
