Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft. For additional information, refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal is leaking, the axle housing vent may be plugged with foreign material.
    NOTE: If only a new seal needs to be installed, use care to avoid damaging the seal bore.
  2. Using a suitable seal remover, remove the axle shaft oil seal. Discard the oil seal.
  3. Inspect the rear wheel bearing and axle shaft for wear or damage.
  4. If necessary, using the special tools, remove the rear wheel bearing.

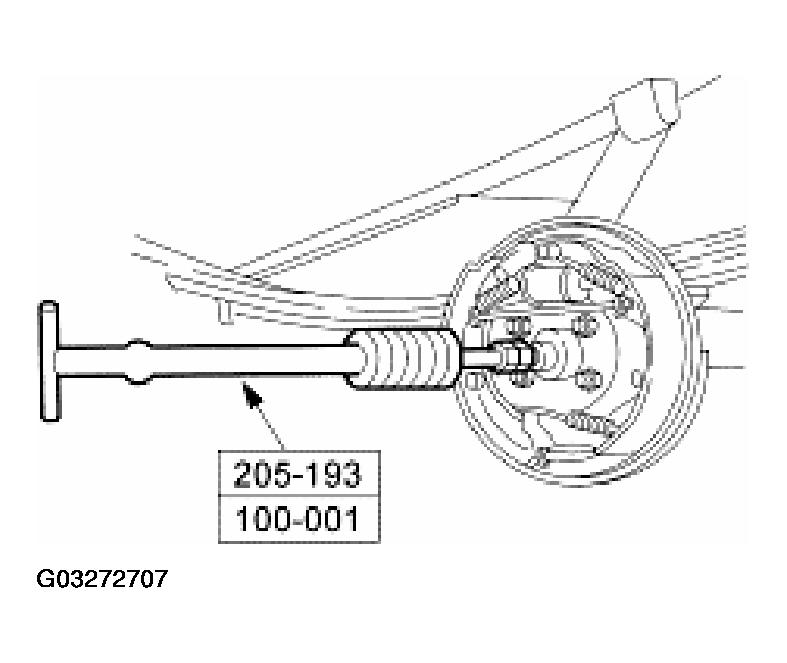

    Fig 1: Removing Rear Wheel Bearing
    G03272707Courtesy of FORD MOTOR CO.
