Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the differential housing cover.
    1. Remove the 10 differential housing cover bolts and drain the lubricant from the rear axle housing.
    2. Remove the differential housing cover.

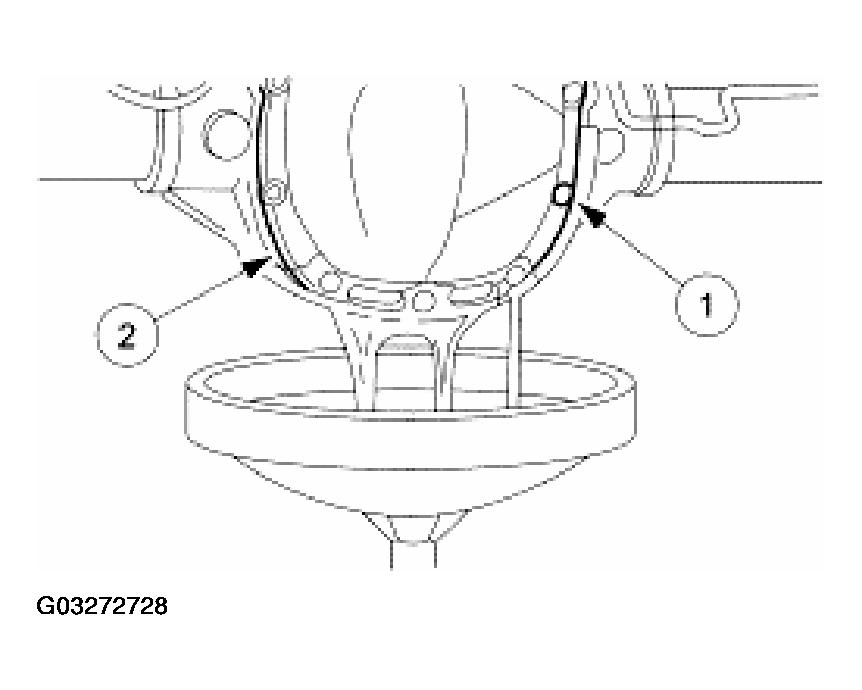

      Fig 1: Removing Differential Housing Cover
      G03272728Courtesy of FORD MOTOR CO.
