Differential Case: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

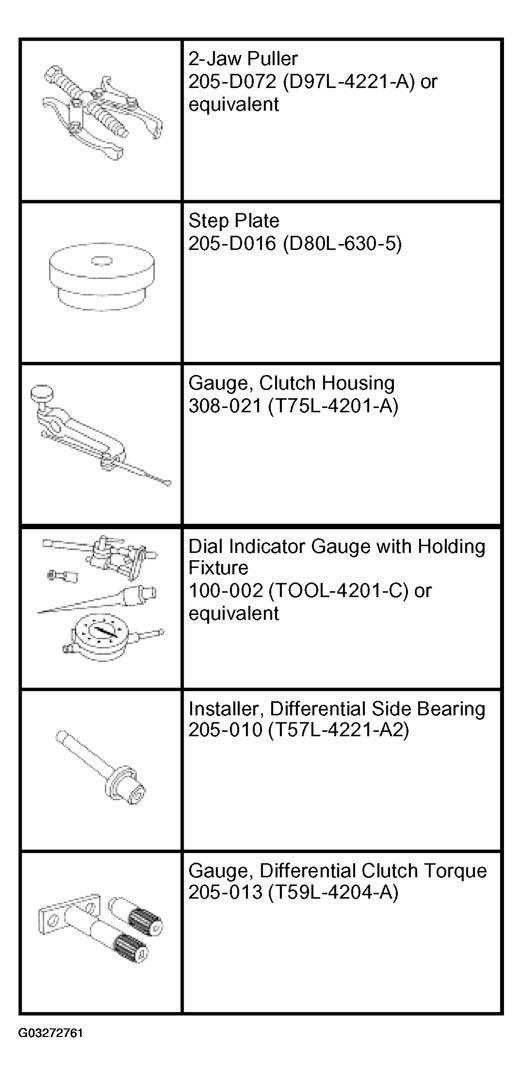

Fig 1: Identifying Special Tool - Differential Case
G03272761Courtesy of FORD MOTOR CO.
MATERIAL SPECIFICATIONS

Item Specification
SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL WSL-M2C192-A
Additive Friction Modifier
XL-3
EST-M2C118-A
Stud and Bearing Mount
E0AZ-19554-BA
WSK-M2G349-A1
