Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion flange (4851). For additional information, refer to DRIVE PINION FLANGE .

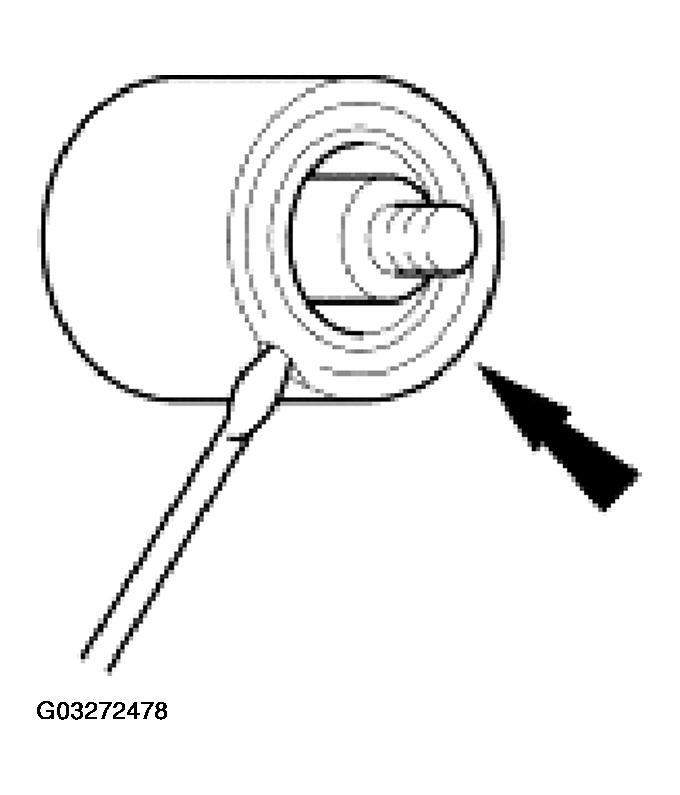

  2. Using a screwdriver, force the rear axle drive pinion seal metal flange up and strike it with a hammer.
    Fig 1: Forcing Rear Axle Drive Pinion Seal Metal Flange Up
    G03272478Courtesy of FORD MOTOR CO.

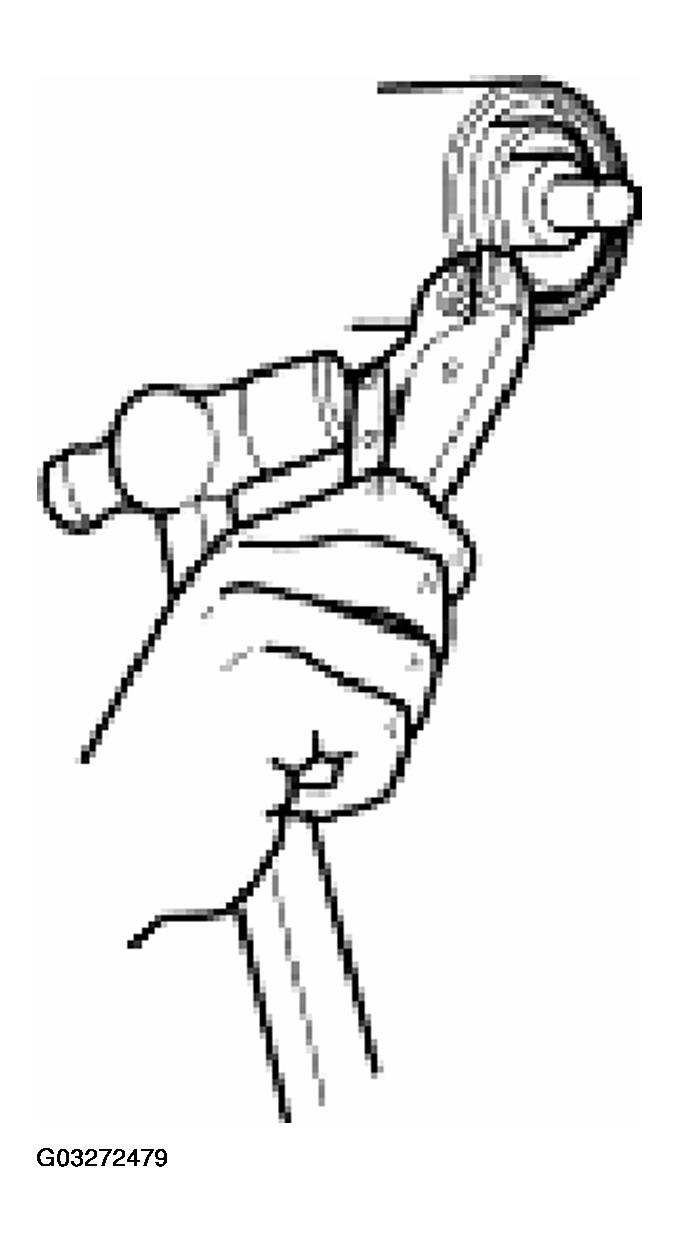

  3. Using gripping pliers and a hammer, remove the seal.
    Fig 2: Removing Pinion Seal
    G03272479Courtesy of FORD MOTOR CO.
