Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. For additional information, refer to BATTERY, MOUNTING AND CABLES .
    2. NOTE: Empty the lubricant into a clean container for reuse.
  2. Remove the differential housing cover.
    1. Remove the 10 differential housing cover bolts and drain the lubricant from the rear axle housing.
    2. Remove the differential housing cover.

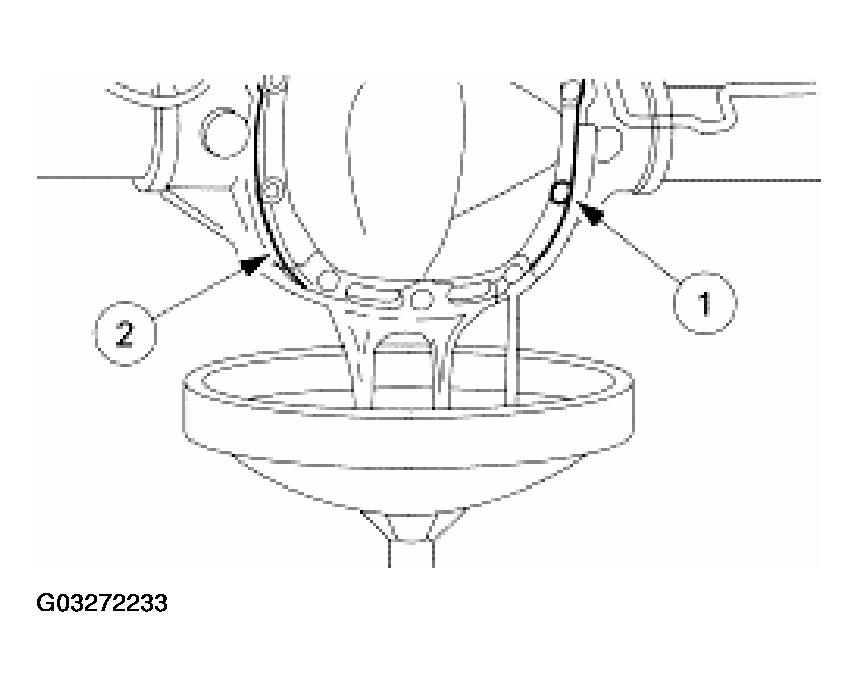

      Fig 1: Removing Differential Housing Cover
      G03272233Courtesy of FORD MOTOR CO.
