Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Index the front axle pinion flange to the front driveshaft (4602).

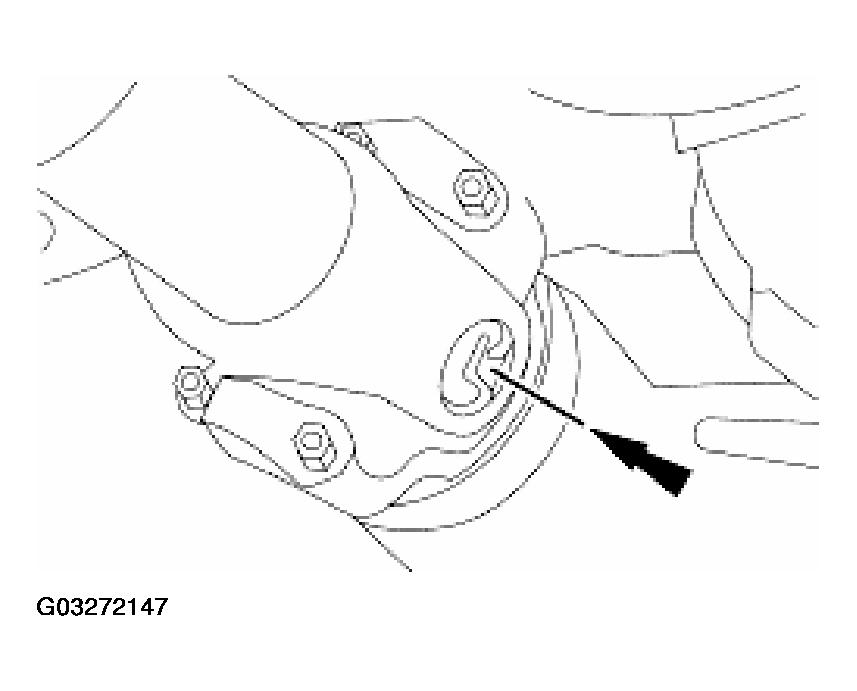

    Fig 1: Index Marking Front Axle Pinion Flange To Front Driveshaft
    G03272147Courtesy of FORD MOTOR CO.
  3. Index the transfer case pinion flange to the front driveshaft.

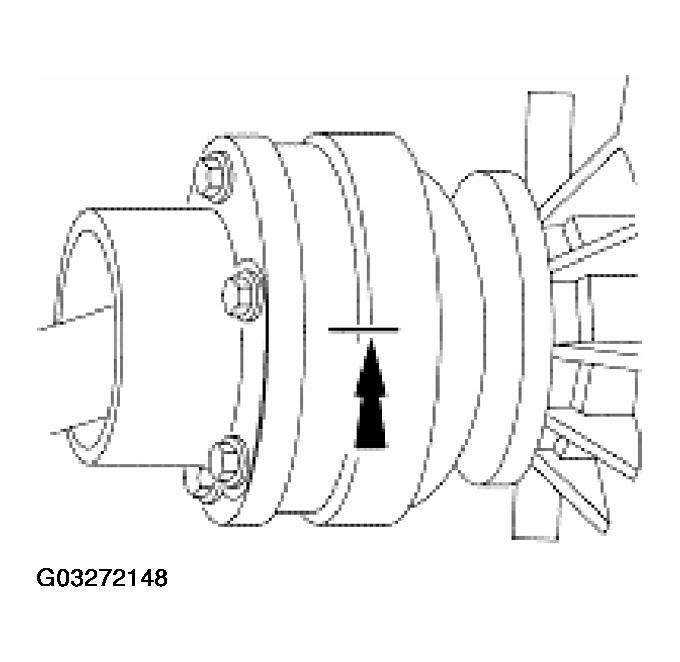

    Fig 2: Index Marking Transfer Case Pinion Flange To Front Driveshaft
    G03272148Courtesy of FORD MOTOR CO.
  4. Remove the front driveshaft-to-transfer case bolts and retainers.

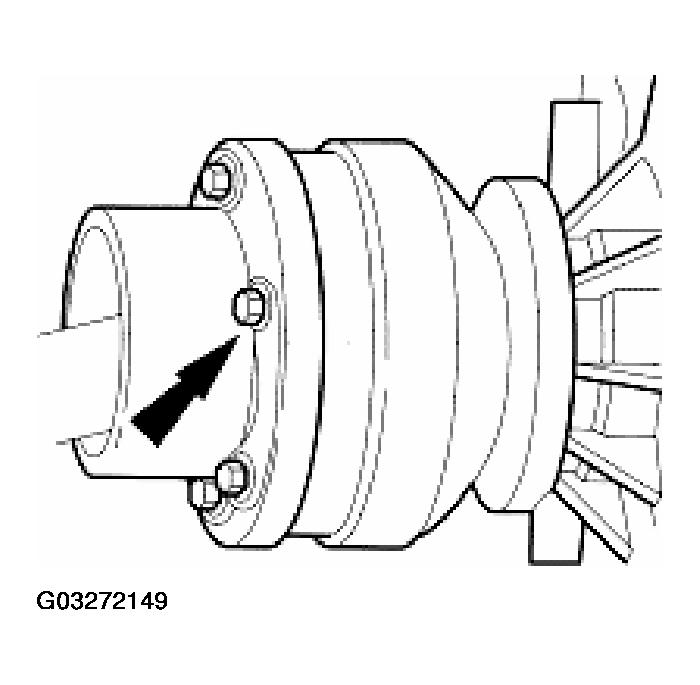

    Fig 3: Removing Front Driveshaft-To-Transfer Case Bolts
    G03272149Courtesy of FORD MOTOR CO.
  5. Remove the front driveshaft-to-front axle bolts.

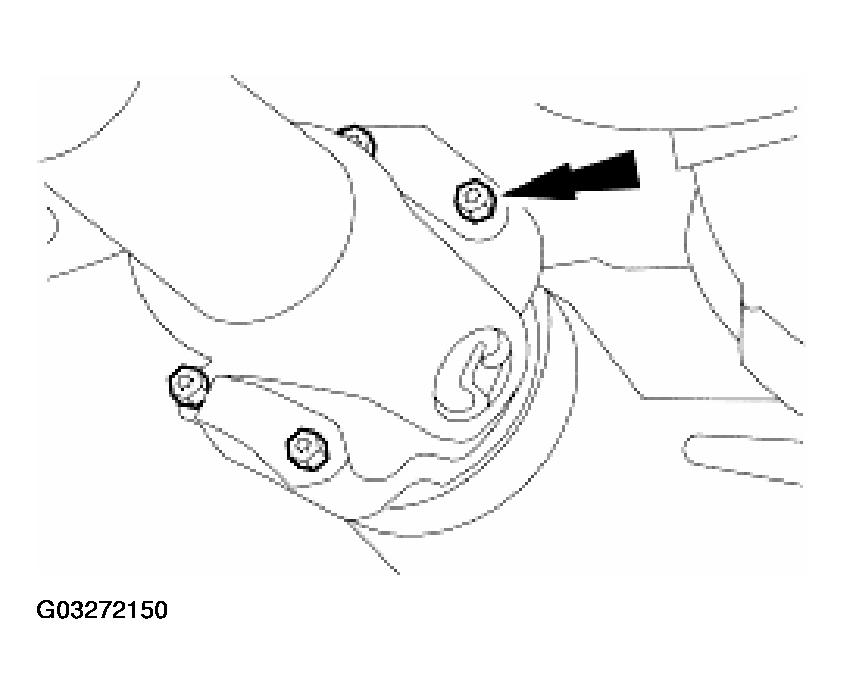

    Fig 4: Removing Front Driveshaft-To-Front Axle Bolts
    G03272150Courtesy of FORD MOTOR CO.
  6. Remove the front driveshaft.
  7. To install, reverse the removal procedure.

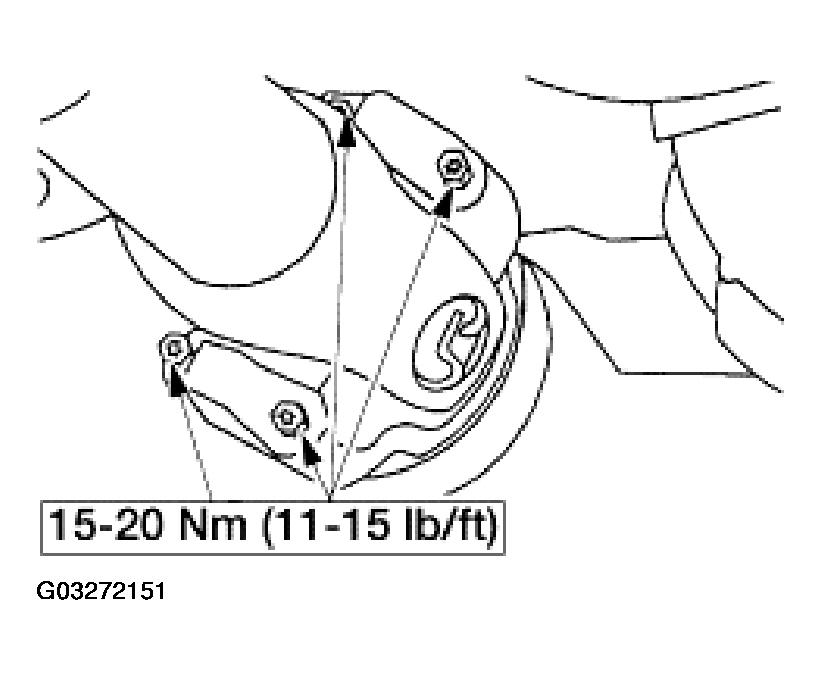

    Fig 5: Installing Front Driveshaft-To-Front Axle Bolts
    G03272151Courtesy of FORD MOTOR CO.

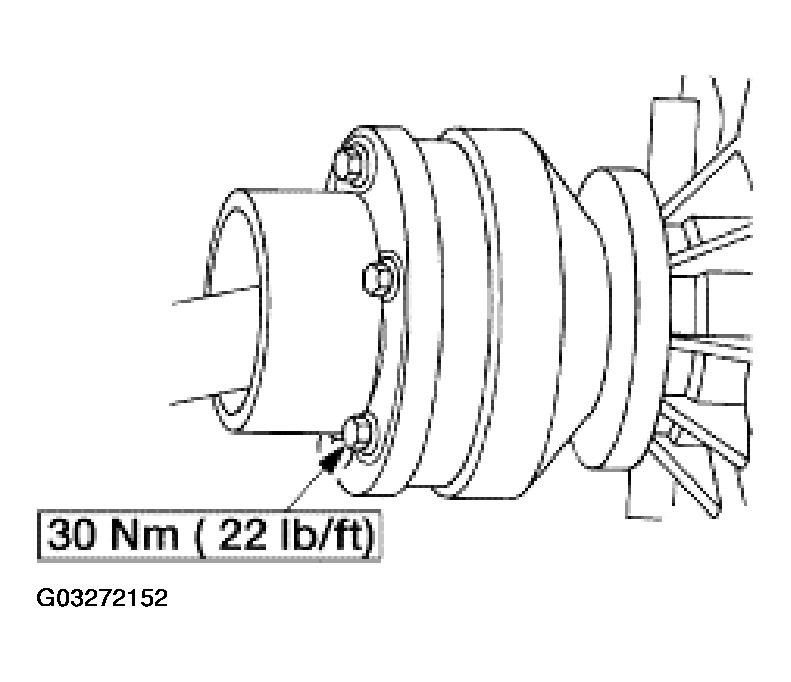

    Fig 6: Installing Front Driveshaft-To-Transfer Case Bolts
    G03272152Courtesy of FORD MOTOR CO.
