Driveshaft Universal Joint - Single Cardan, Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

INITIAL DISASSEMBLY

CAUTION: Do not, under any circumstance, clamp the shaft in the jaws of a vise or similar holding fixture. Denting or localizing fracture can result, causing shaft failure during vehicle operation.

Place the shaft on a suitable workbench. Do not damage the tube.

NOTE: If components are not marked and installed incorrectly, driveline imbalance can occur.

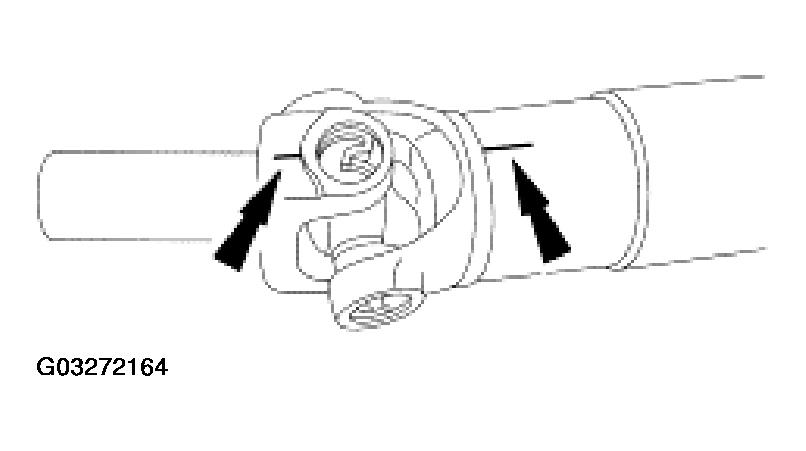

Fig 1: Index Marking Shaft Components

Courtesy of FORD MOTOR CO.

Index -mark the shaft components.
Remove and discard all four of the snap rings.

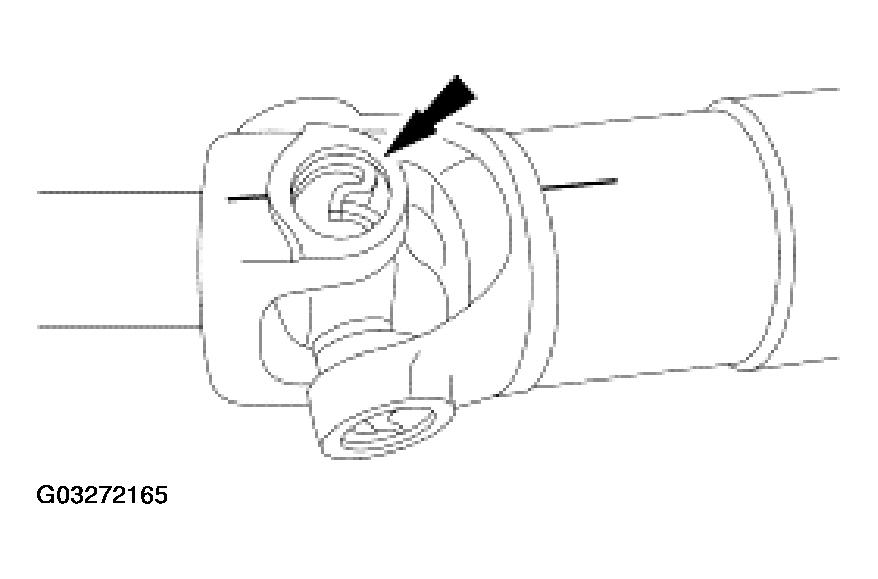

Fig 2: Removing Snap Rings
Courtesy of FORD MOTOR CO.
Clamp the special tool in a vise.

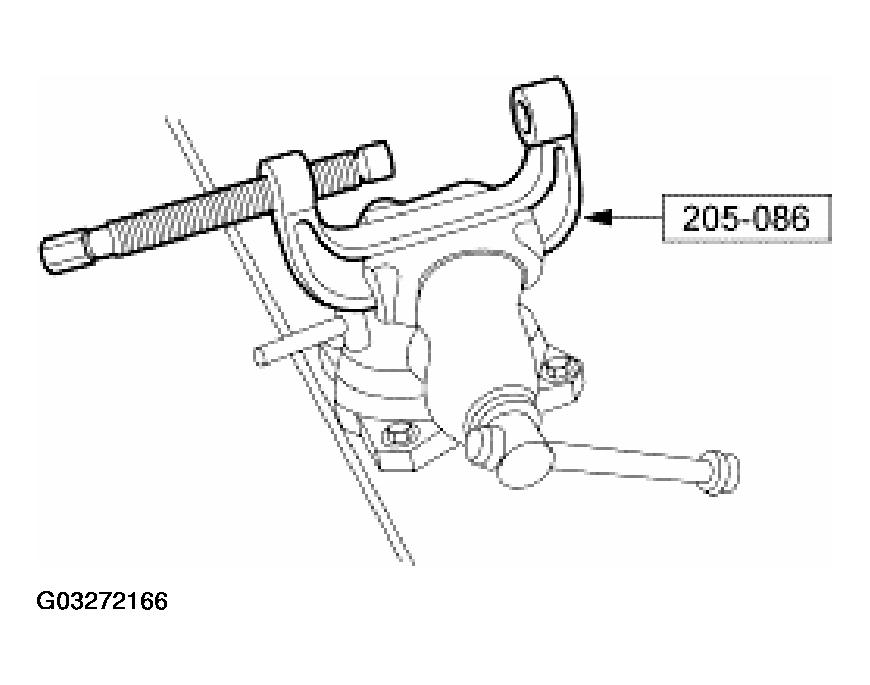

Fig 3: Clamping Special Tool In Vise
Courtesy of FORD MOTOR CO.

Bearing Cup Removal

NOTE: If necessary, use a pair of pliers to remove a bearing cup that fails to press out all the way.

Remove the bearing cups and the driveshaft slip-yoke.
1. Position the driveshaft slip-yoke in the special tool.
2. Press out a bearing cup.
3. Rotate the driveshaft slip-yoke 180 degrees.
4. Press on the spider to remove the remaining bearing cup.
5. Remove the driveshaft slip-yoke.

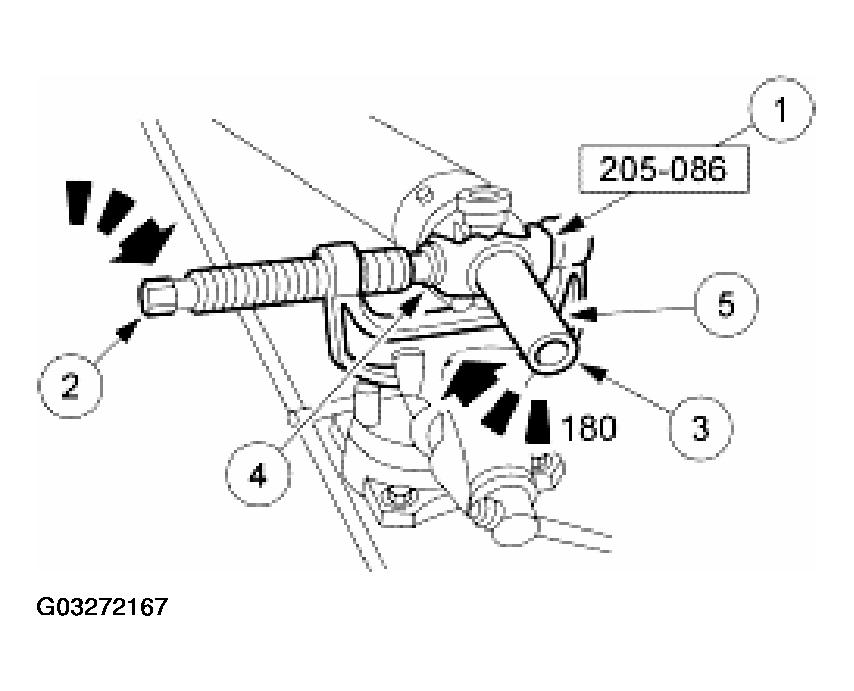

  Fig 4: Removing Bearing Cups & Driveshaft Slip-Yoke
  Courtesy of FORD MOTOR CO.

  Final Disassembly
Repeat Bearing cup removal in this procedure to remove the remaining bearing cups and the spider from the shaft.

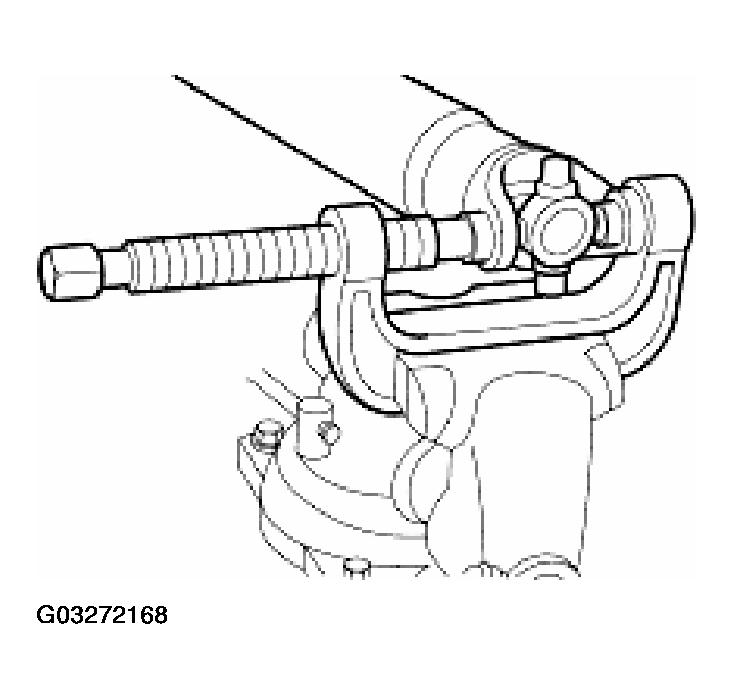

Fig 5: Removing Remaining Bearing Cups & Spider From Shaft
Courtesy of FORD MOTOR CO.
Clean the yoke area at the end of the shaft.
