Driveshaft Universal Joint - Single Cardan, Flange Yoke: Disassembly

Initial Disassembly

CAUTION: Do not, under any circumstance, clamp the driveshaft in the jaws of a vise or similar holding fixture. Denting or localizing fracture can result, causing driveshaft failure during vehicle operation.
1. Place the driveshaft on a suitable workbench. Do not damage the tube.
NOTE: If components are not marked and installed incorrectly, driveline imbalance can occur.

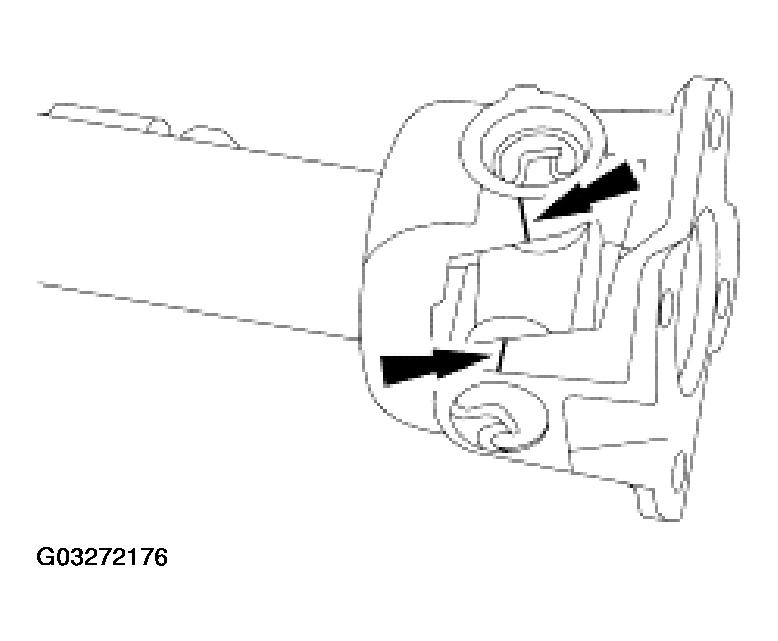

Fig 1: Index Marking Driveshaft Components
Courtesy of FORD MOTOR CO.
2. Index-mark the driveshaft components.
3. Remove and discard all four of the snap rings.

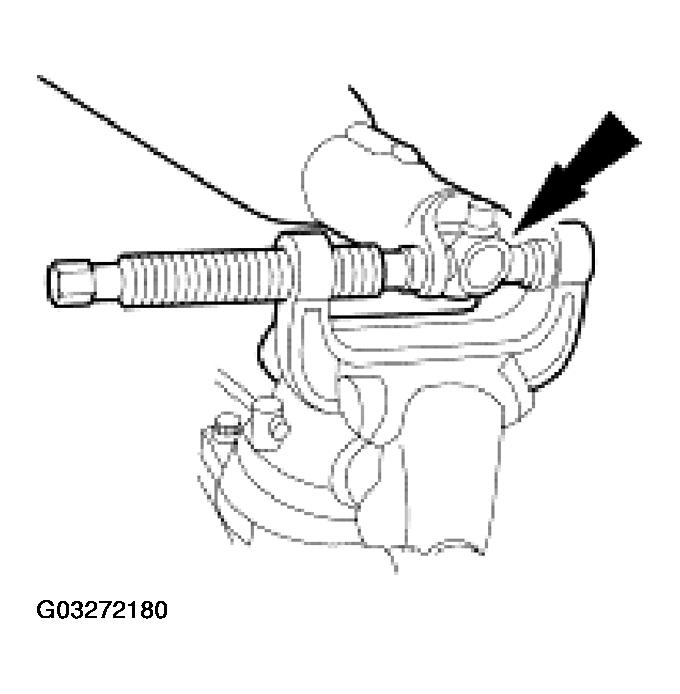

   Fig 2: Removing Snap Rings

   Courtesy of FORD MOTOR CO.

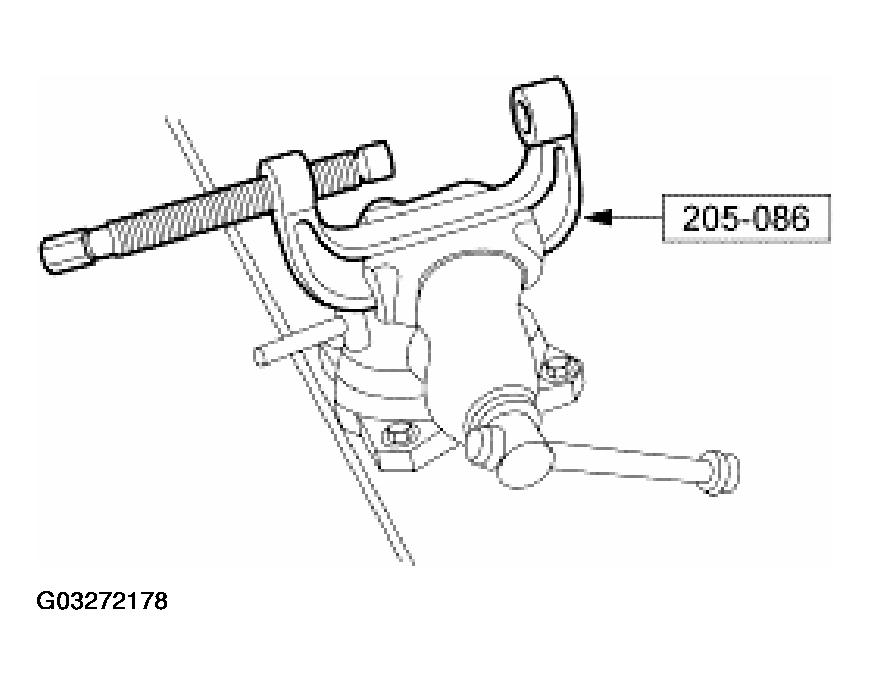

4. Clamp the special tool in a vise.
   Fig 3: Clamping Special Tool In Vise

   Courtesy of FORD MOTOR CO.

Bearing Cup Removal

NOTE: If necessary, use a pair of pliers to remove a bearing cup that fails to press out all the way.
5. Remove the bearing cups and the flange.
   1. Position the flange in the special tool.
   2. Press out a bearing cup.
   3. Rotate the flange 180 degrees.
   4. Press on the spider to remove the remaining bearing cup.
   5. Remove the flange.

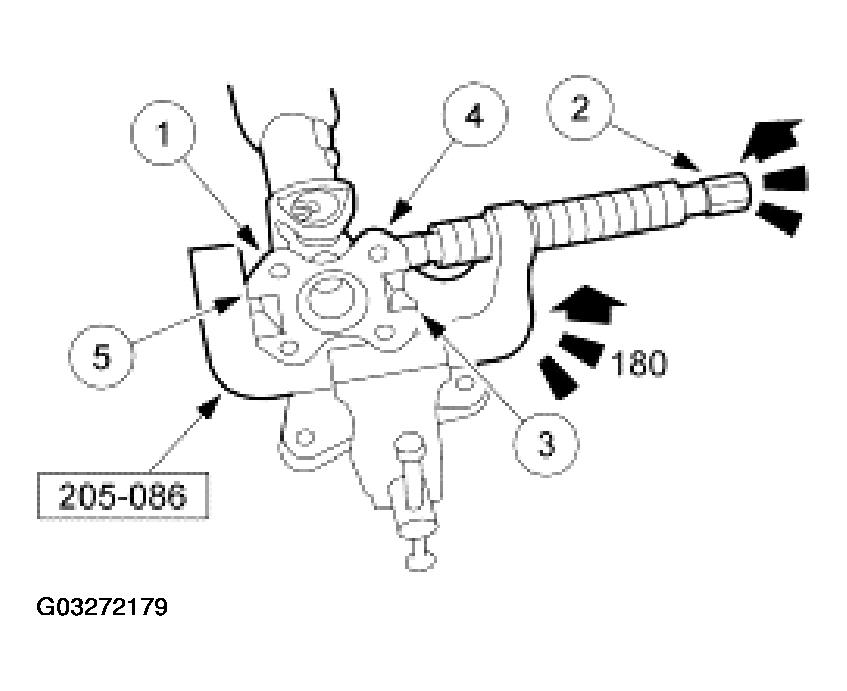

      Fig 4: Removing Bearing Cups & Flange

      Courtesy of FORD MOTOR CO.

Final Disassembly

6. Repeat Bearing cup removal in this procedure to remove the remaining bearing cups and the spider from the driveshaft.

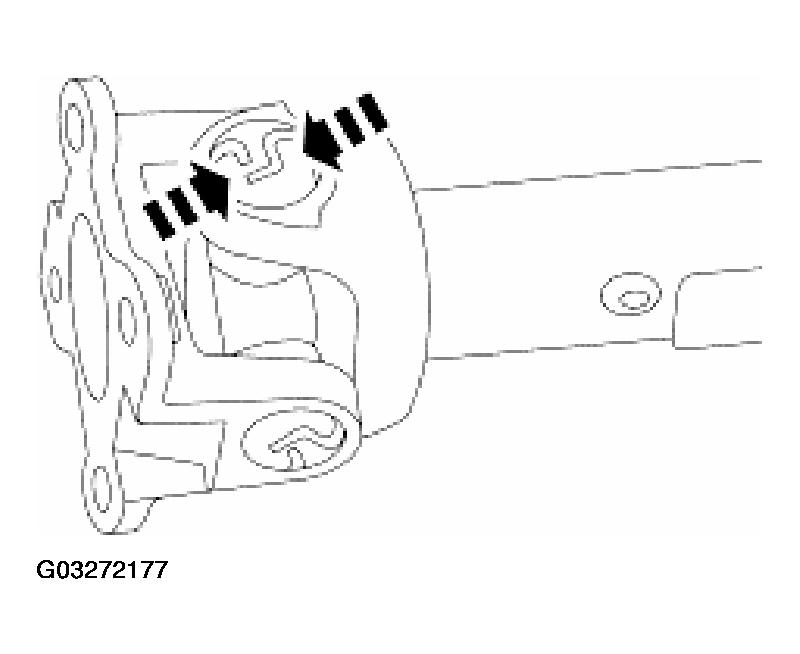

   Fig 5: Removing Remaining Bearing Cups & Spider From Driveshaft

   Courtesy of FORD MOTOR CO.
7. Clean the yoke area at the end of the driveshaft.
