Driveshaft Universal Joint - Single Cardan, Flange Yoke: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Bearing Cup Installation

NOTE: Install the Universal Joint Kits as complete assemblies only. Do not mix components from other Kits.

Install a new spider and bearing cups.
1. Start a new bearing cup in the driveshaft yoke.
  - Check the needle bearings for correct positioning.
2. Position the new spider in the driveshaft yoke.
3. Position the driveshaft yoke in the special tool.
4. Press the bearing cup to just below the snap ring groove.
  - Repeat to install the new bearing cup on the opposite side of the driveshaft yoke.

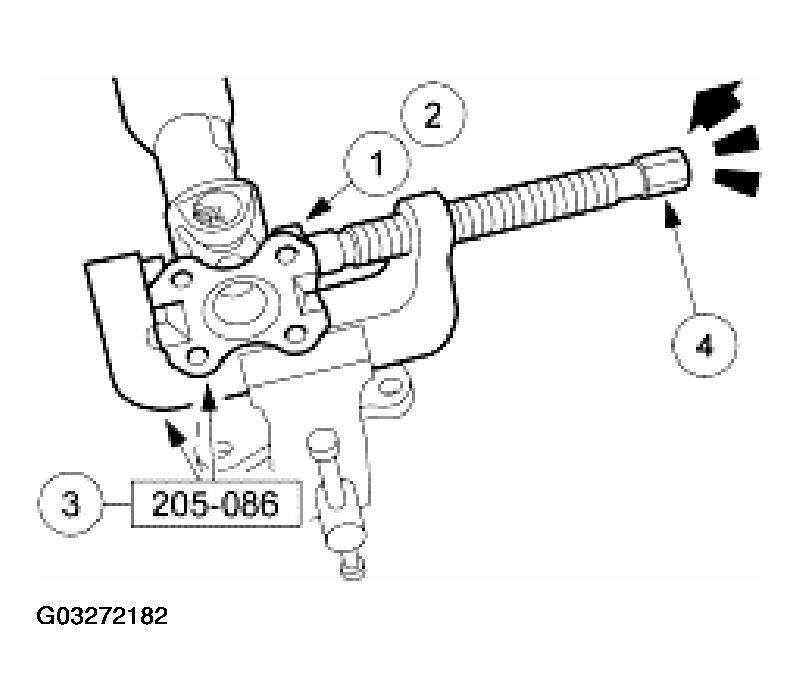

    Fig 1: Installing New Spider Bearing Cups
    Courtesy of FORD MOTOR CO.

Flange Installation

Inspect the flange. Install a new flange, if necessary.
Install the new bearing cups and the flange.
1. Start a new bearing cup in the flange.
  - Check the needle bearings for correct positioning.
2. Position the flange on the spider.
3. Position the assembly in the special tool.
4. Press the bearing cup to just below the snap ring groove.
  - Repeat to install the new bearing cup on the opposite side of the flange.

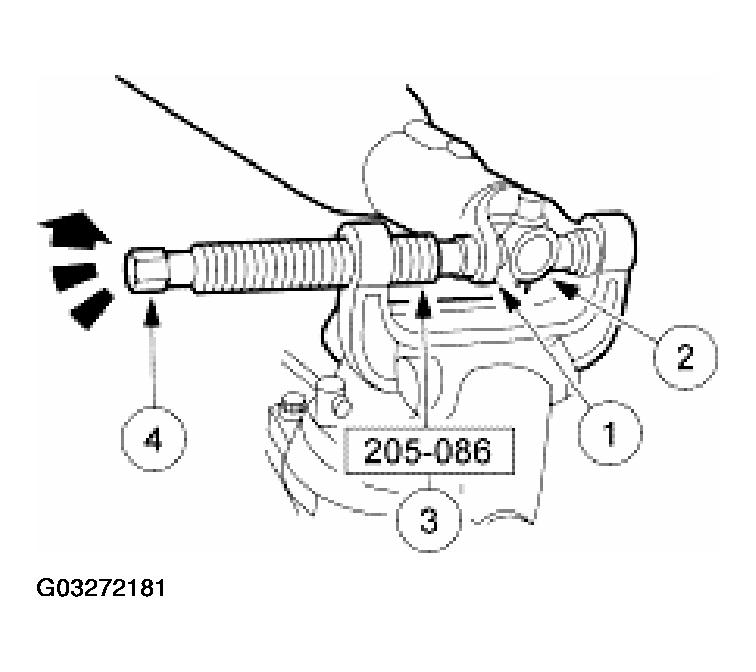

    Fig 2: Installing New Bearing Cups & Flange
    Courtesy of FORD MOTOR CO.

Final Assembly

NOTE: Use the yellow snap rings supplied in the kit to assemble the universal joint (U -joint). If difficulty is encountered with the yellow snap rings, install the black snap rings.

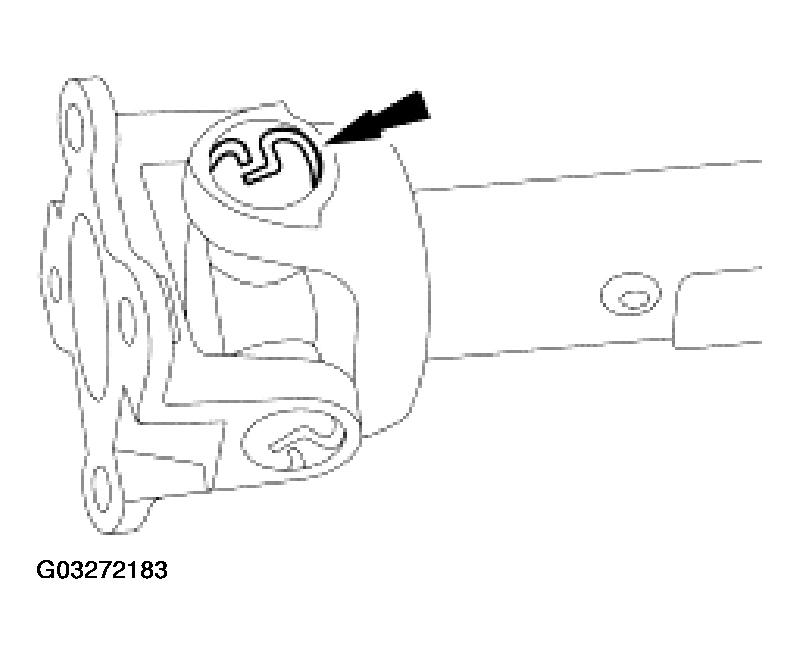

Fig 3: Installing New Snap Rings

Courtesy of FORD MOTOR CO.

Remove the driveshaft from the special tool, and install the four new snap rings.

CAUTION: Do not strike the bearings.

Check the U-joint for freedom of movement.
- If binding, strike the yoke with a brass or plastic hammer.

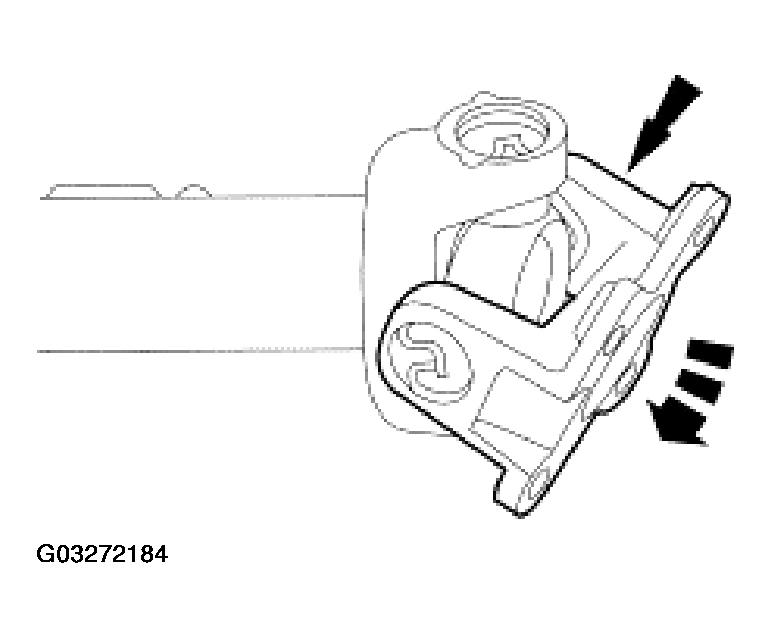

  Fig 4: Checking U-Joint For Freedom Of Movement
  Courtesy of FORD MOTOR CO.
