Driveshaft Slip Yoke: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Position the new small driveshaft slip-yoke boot clamp on the driveshaft stub shaft.
Slide the small opening end of the slip-yoke boot on the driveshaft stub shaft, as far as it will travel.

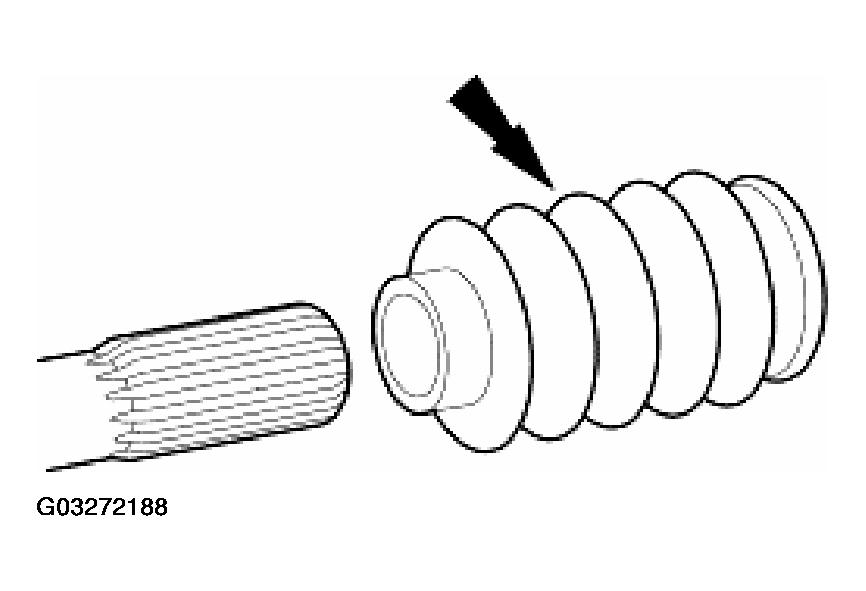

Fig 1: Installing Slip-Yoke Boot On Driveshaft Stub Shaft
Courtesy of FORD MOTOR CO.
Using the special tool, crimp the driveshaft slip-yoke boot clamp.

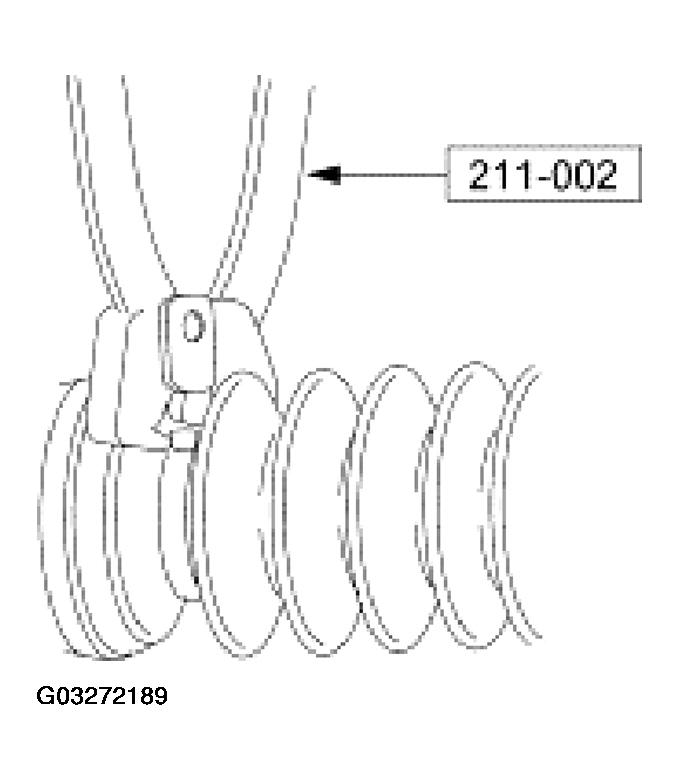

Fig 2: Crimping Driveshaft Slip-Yoke Boot Clamp
Courtesy of FORD MOTOR CO.
Install the driveshaft slip-yoke on the driveshaft.
1. Pull the slip-yoke boot toward the driveshaft. Lubricate the driveshaft splines with approximately 10 grams (0.24 oz.) of lubricant.
  - Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESAM1C75-B.
2. Position the new large slip-yoke boot clamp.
3. Align the index-marks, and install the driveshaft slip-yoke on the driveshaft.

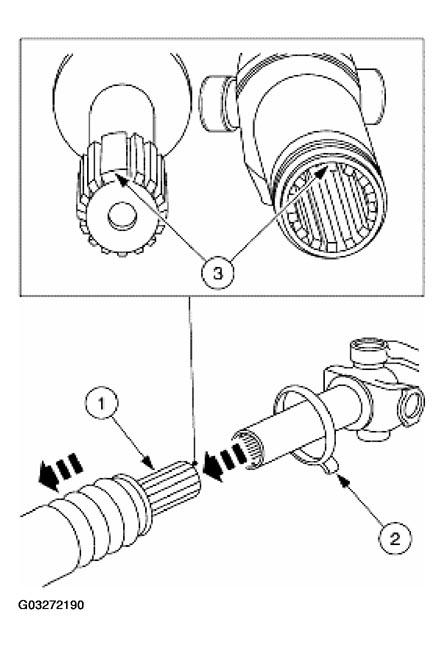

  Fig 3: Installing Driveshaft Slip-Yoke On Driveshaft
  Courtesy of FORD MOTOR CO.
Set the driveshaft assembled length to specification.
1. Remove any excess grease from the slip-yoke boot and driveshaft slip-yoke surfaces.
2. Position the slip-yoke boot in the slip-yoke boot groove.
3. Set the driveshaft assembled length to specification.
  - Measure from the stub shaft weld to the end of the driveshaft slip-yoke.
4. Bleed the air from the slip-yoke boot.

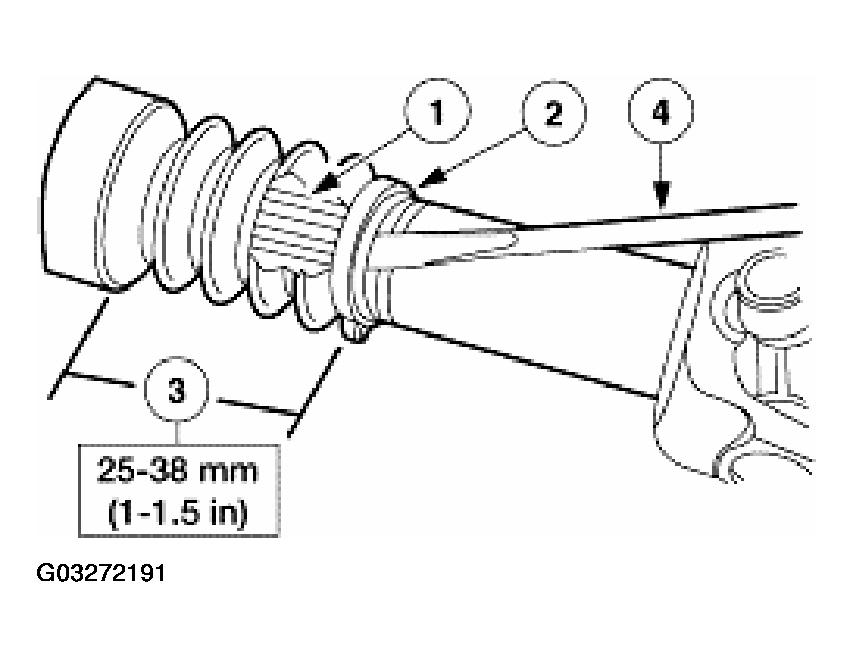

  Fig 4: Setting Driveshaft Assembled Length To Specification
  Courtesy of FORD MOTOR CO.
Using the special tool, crimp the large driveshaft slip-yoke boot clamp.

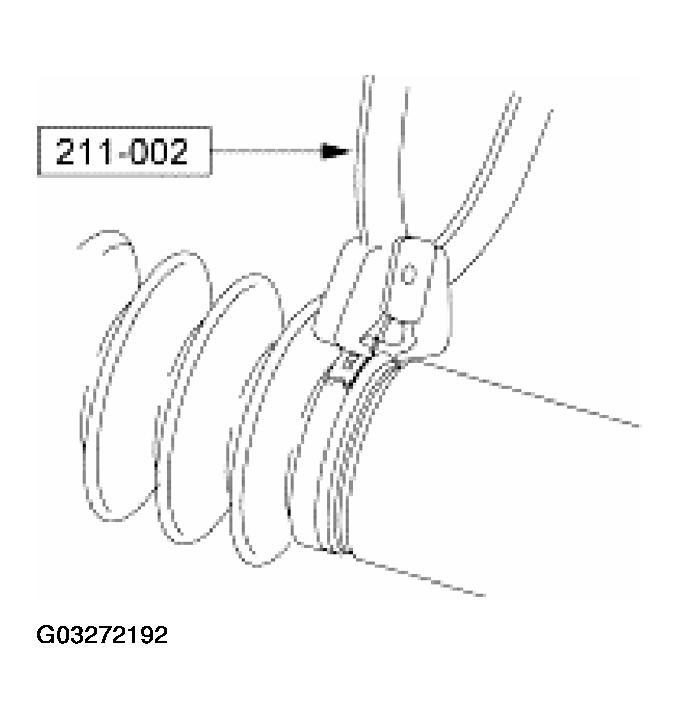

Fig 5: Crimping Large Driveshaft Slip-Yoke Boot Clamp
Courtesy of FORD MOTOR CO.
