Bearing Whine

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Bearing whine is a high-pitched sound similar to a whistle. It is usually caused by worn/damaged pinion bearings, which are operating at driveshaft speed. Bearing noise occurs at all driving speeds. This distinguishes it from gear whine which usually comes and goes as speed changes.

As noted, pinion bearings make a high-pitched, whistling noise, usually at all speeds. If however there is only one pinion bearing that is worn/damaged, the noise may vary in different driving phases. New pinion bearings must not be installed unless they are scored or damaged or there is a specific pinion bearing noise. A worn/damaged bearing will normally be obvious at disassembly. Examine the large end of the rollers for wear. If the pinion bearings original blend radius has worn to a sharp edge, a new pinion bearing must be installed.

NOTE: A low-pitched rumble normally associated with a worn/damaged wheel bearing can be caused by the exterior luggage rack or tires.

A wheel bearing noise can be mistaken for a pinion bearing noise. On 4x2 vehicles, check the wheel bearing for a spalled cup, and spalled/damaged rollers. Install a new wheel bearing if any of these concerns are detected.

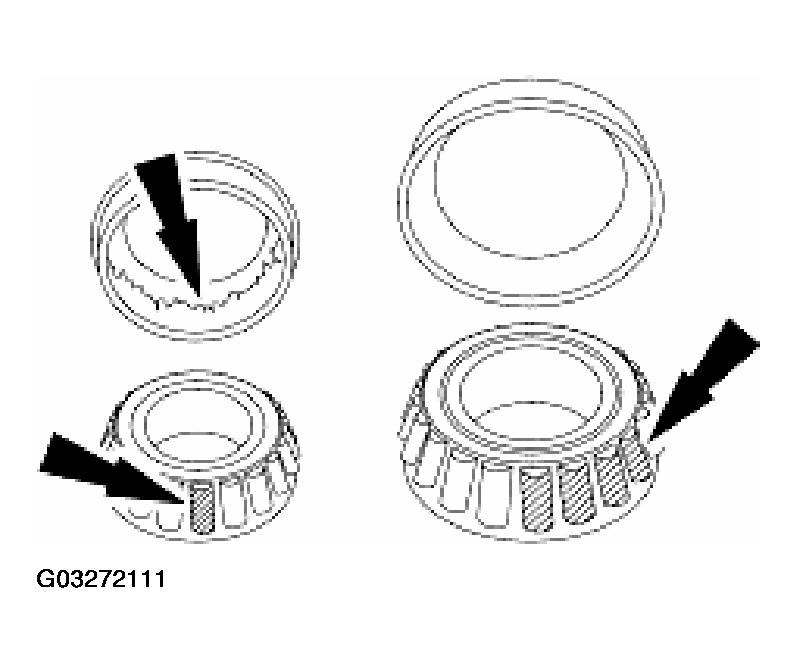

Fig 1: Inspecting Wheel Bearing For Wear Or Damage

Courtesy of FORD MOTOR CO.

If the wheel bearing is damaged, the roller surface on the axle shaft may also be damaged. Install a new axle shaft if any damage is detected.

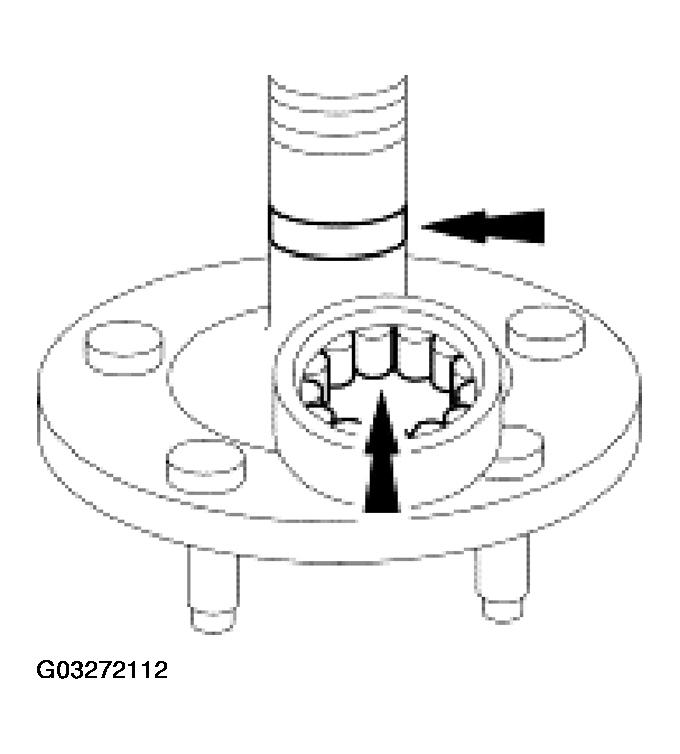

Fig 2: Inspecting Axle Shaft/Bearing For Wear Or Damage

Courtesy of FORD MOTOR CO.

On 4x4 vehicles, check the wheel bearing for rotating smoothness and end play. Install a new component as required.
