Pinpoint Test F: Drumming Noise

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. F1 CHECK THE EXHAUST SYSTEM
    • Key in START position.
    • Increase the engine RPM until the noise is the loudest. Note the engine RPM.
    • Key in OFF position.
    • Add approximately 9 kg (20 lb) of weight to the exhaust system. First place the weight at the tail pipe and test, then at the front pipe.

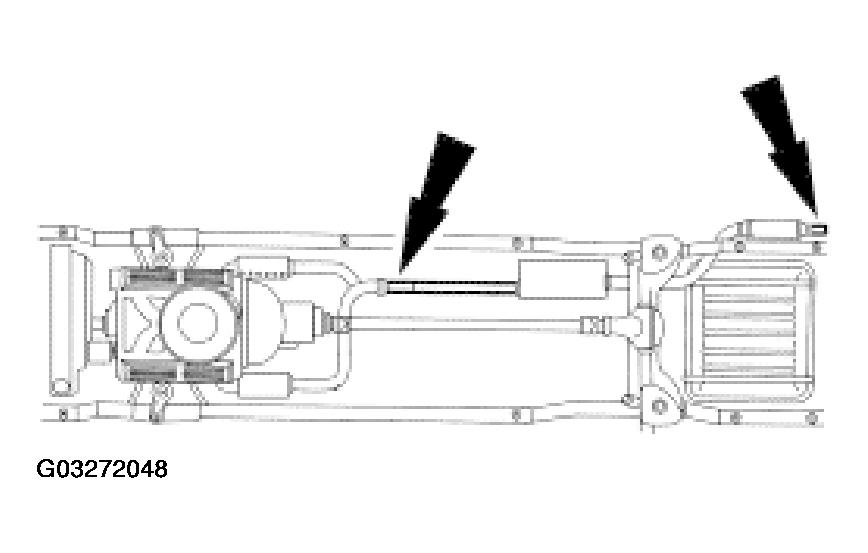

      Fig 1: Placing Weight At Tail Pipe And Test Front Pipe
      G03272048Courtesy of FORD MOTOR CO.
    • Key in START position.
    • Increase the engine RPM and listen for the drumming noise. Note the engine RPM if the noise occurs.
    • Key in OFF position.
    • Using a vibration analyzer (VA), determine the amount of vibration that occurs with the drumming noise.
    • Is the noise/vibration reduced or eliminated, or does the noise/vibration occur at a different RPM?
    1. Yes  : CARRY OUT EXHAUST SYSTEM NEUTRALIZING  . TEST the system for normal operation.
    2. No  : GO to F2.
  2. F2 POWERTRAIN/DRIVETRAIN MOUNT NEUTRALIZING
    1. Yes  : Vehicle OK. TEST the system for normal operation.
    2. No  : CONDUCT diagnosis of other suspect components.
