Driveline Angles

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

The differences of alignment between the transmission output shaft, the driveshaft and the rear axle pinion centerline.

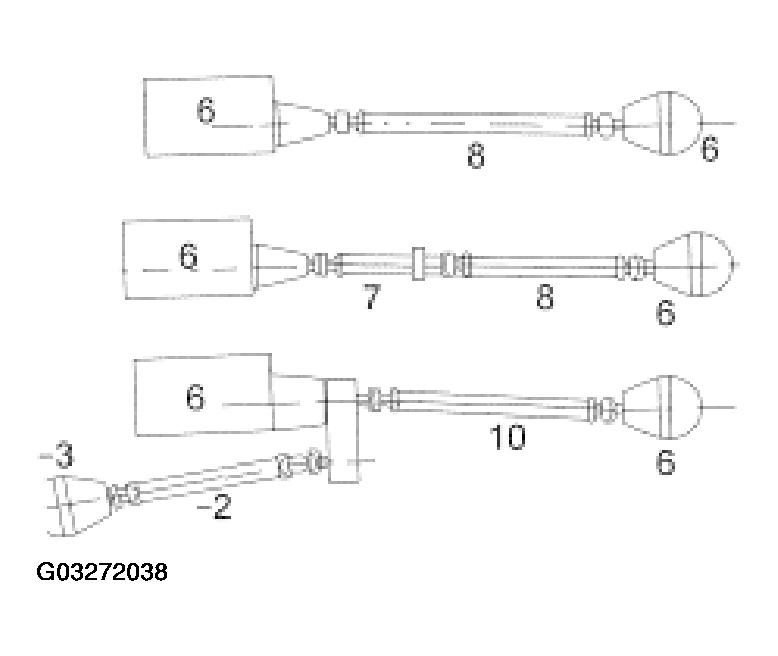

Fig 1: Identifying Driveline Angles
G03272038Courtesy of FORD MOTOR CO.
