Rear Door Handle: Material

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
Multi-Purpose Grease Spray F5AZ-19G209-AA	ESR-M1C159-A

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM - LS .

To remove the individual components, only carry out the listed steps.

COMPONENT STEPS SPECIFICATION

Component	Step
Exterior door handle	1-3
Rear door latch	1,4-7
Interior door handle	1,4-9

Remove the components in the order indicated in the following illustration and table.

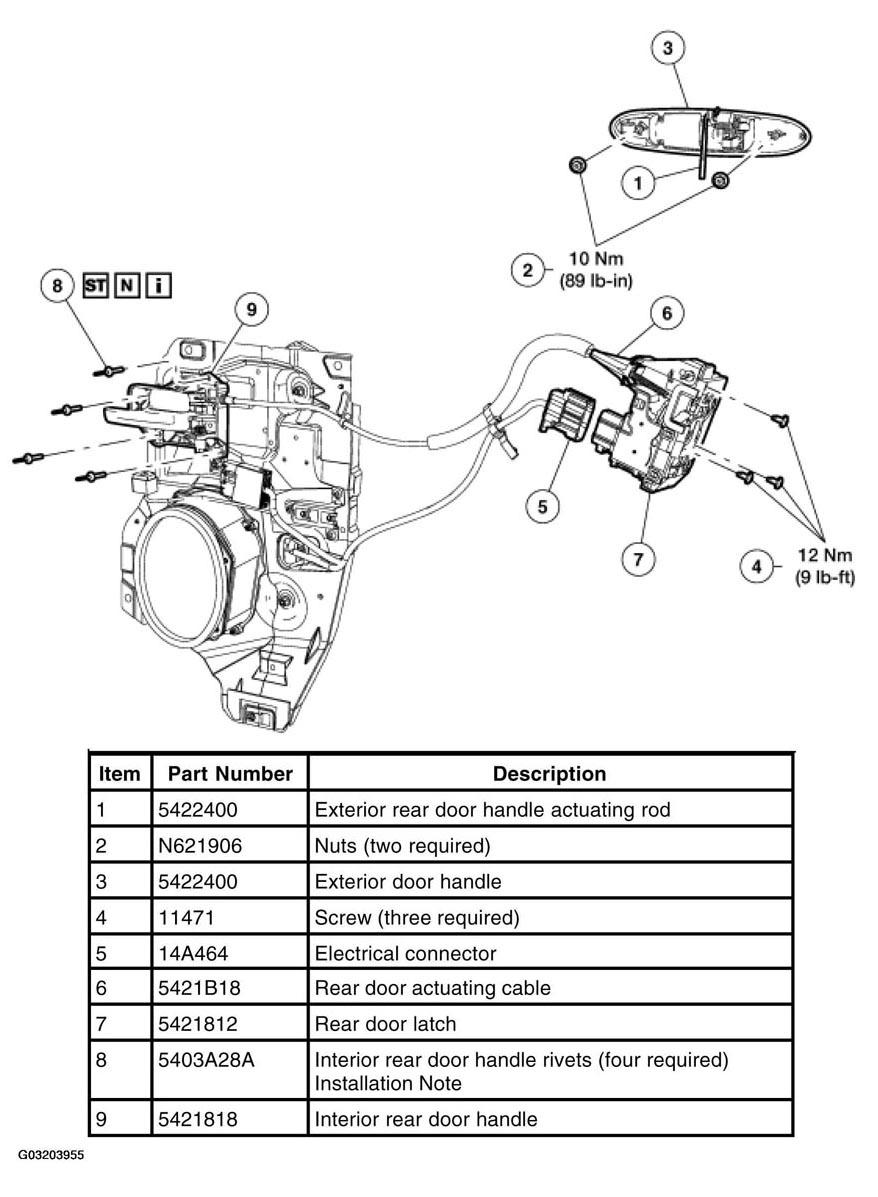

Fig 1: Identifying Exterior Rear Door Handle Actuating Rod
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 8: Interior Rear Door Handle Rivets Installation Note

Use the special tool to install the new rivets.

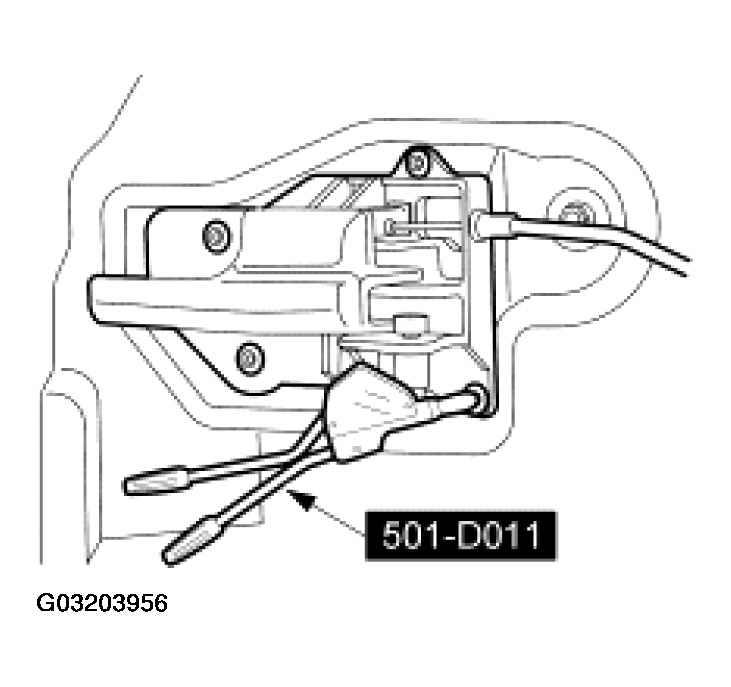

Fig 2: Using Special Tool To Installing New Rivets
Courtesy of FORD MOTOR CO.
