Luggage Compartment Lid Latch: Material

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
Multi-Purpose Grease Spray XL-5	ESB-M193-B

Remove the luggage compartment lid trim panel.

To remove the individual components, only carry out the listed steps.

COMPONENT STEPS SPECIFICATION

Component	Steps
Luggage compartment lid latch	1-3
Luggage compartment lid lock cylinder	4-6

Remove the components in the order indicated in the illustration and table.

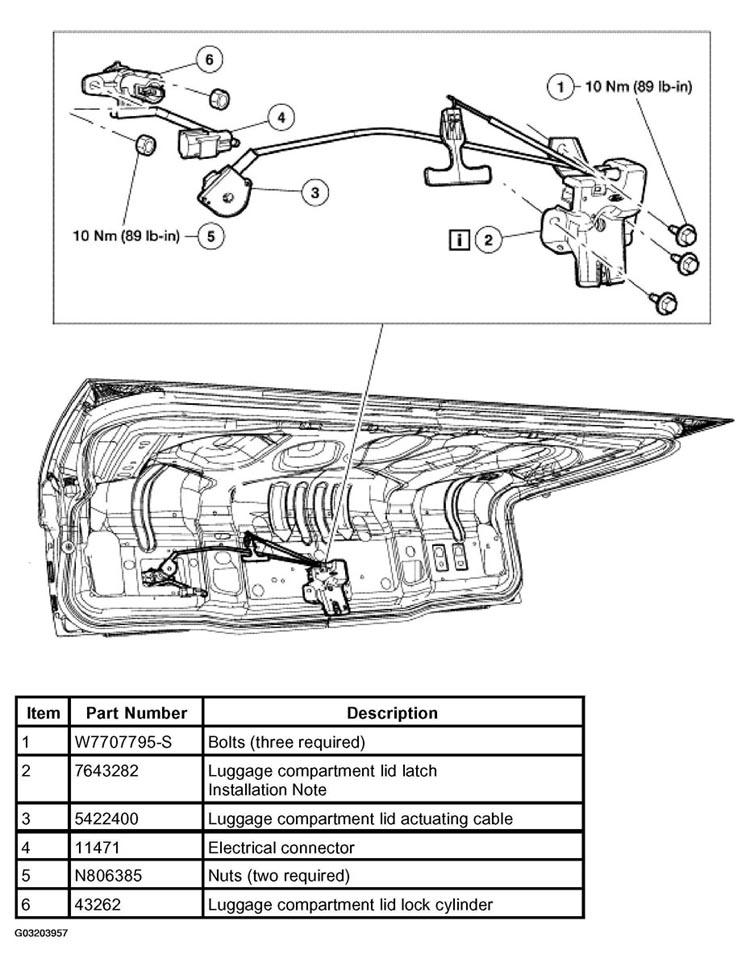

Fig 1: Identifying Luggage Compartment Lid Actuating Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: Luggage Compartment Lid Latch Installation Note

When a new luggage compartment lid latch is installed, latch adjustment must be checked to make sure the latch was installed correctly.
