Ignition Lock Cylinder: Material
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Multi-Purpose Grease Spray XL-5 |
ESB-M1C93-B |
NOTE:
When any new lock cylinder is installed, the luggage compartment lid lock cylinder, the driver door lock cylinder and ignition lock cylinders should be installed as a set. This eliminates carrying an extra key which will fit only one lock. If a new key is used, the new key code number is stamped on a metal tag attached to the key.
NOTE:
Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
- Disconnect the battery ground cable and wait at least one minute to allow for depletion of the restraint system back up power supply. For additional information refer to GENERATORS & REGULATORS .
- Remove the steering column opening finish panel. For additional information, refer to INTERIOR TRIM - LS .
- Remove the inner instrument finish panel. For additional information, refer to INTERIOR TRIM - LS .

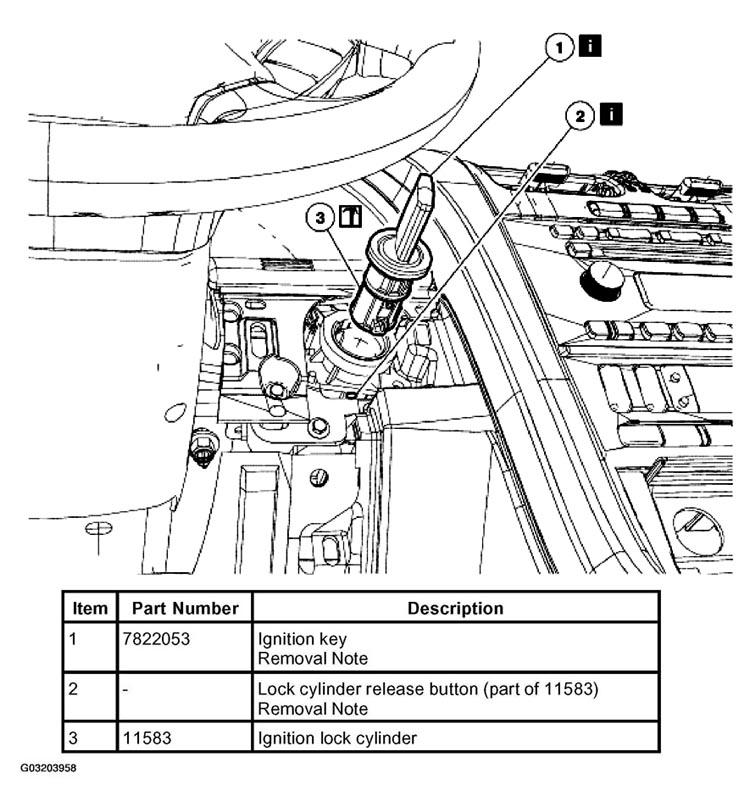

- Remove the components in the order indicated in the following illustration and table.
Item 1: Ignition Key Removal Note
- Turn the ignition key to the RUN position.
Item 2: Lock Cylinder Button Removal Note
- Using a small flat-blade screwdriver, press the ignition lock cylinder release button.
