Hood Latch: Material

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
Multi-Purpose Grease Spray XL-5	ESB-M1C93-B

To remove the individual components, only carry out the listed steps.

COMPONENT STEPS SPECIFICATION

Component	Steps
Hood latch	1-3
Hood latch release cable assembly	1-5

Remove the components in the order indicated in the following illustration and table.

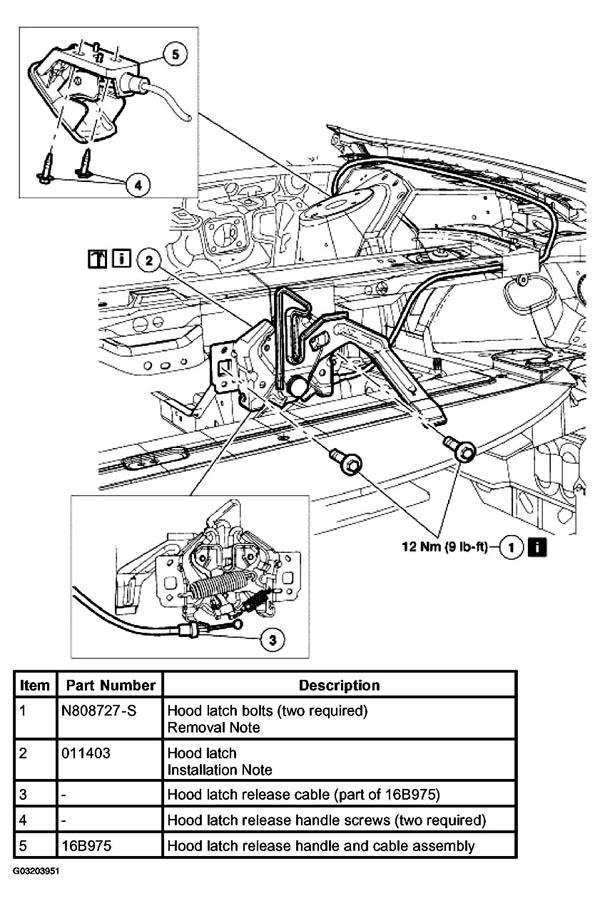

Fig 1: Identifying Hood Latch Release Handle Screws
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Hood Latch Bolts Removal Note

Mark the hood latch prior to removal of the bolts.

Item 2: Hood Latch Installation Note

When a new hood latch is installed, latch adjustment must be checked to make sure the latch was installed correctly.
