RH Front Door Latch C609

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

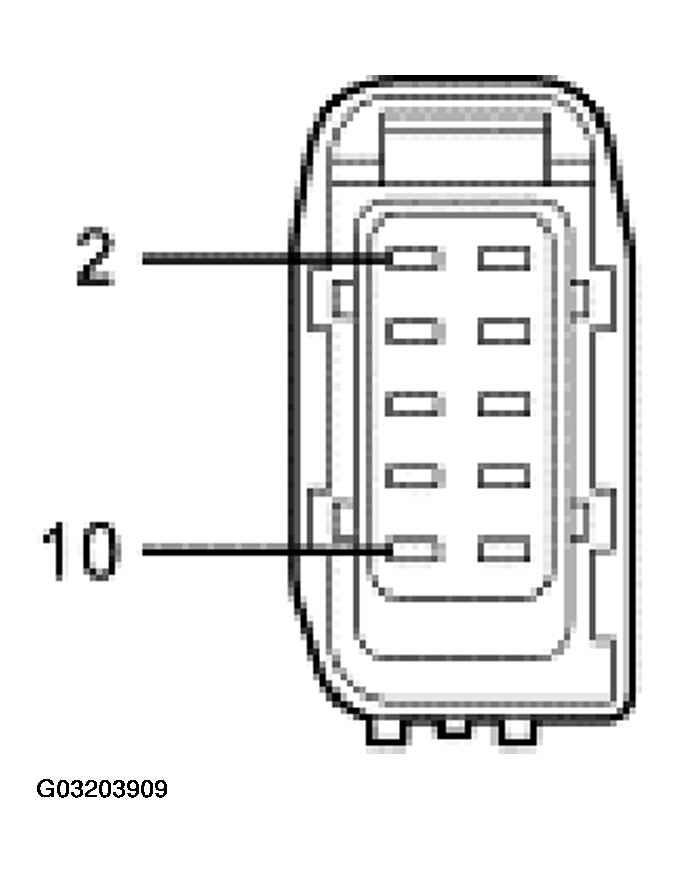

Fig 1: Identifying RH Front Door Latch C609
G03203909Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 33-AA20 (YE/BU) RH front door latch output Less than 5 ohms resistance between the RH front door latch and the REM. Greater than 10,000 ohms between the RH front door latch and ground.
10 32-AA21 (WH/GN) RH front door latch unlock output Less than 5 ohms resistance between the RH front door latch and the REM. Greater than 10,000 ohms between the RH front door latch and ground.
