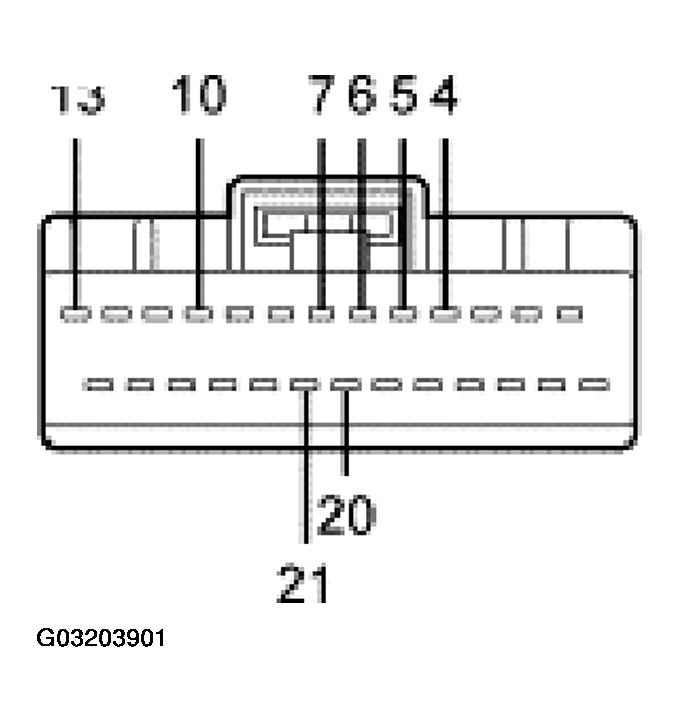

REM C420c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 4 | 33-AA15 (YE/GN) LH rear door latch lock output | 0 voltage. Less than 5 ohms resistance between the LH rear door latch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
| 5 | 33-AA2 (YE/RD) RH front and RH rear door latch lock output | 0 voltage. Less than 5 ohms resistance between the RH front and RH rear door latch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
| 6 | 32-AA1 (WH/RD) RH front and RH rear door latch unlock output | 0 voltage. Less than 5 ohms resistance between the RH front and RH rear door latch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
| 7 | 32-AA16 (WH/BK) LH rear door latch unlock output | 0 voltage. Less than 5 ohms resistance between the LH rear door latch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
| 10 | 29S-AA83 (OG) luggage compartment lid actuator output | 0 voltage. Less than 5 ohms resistance between the luggage compartment lid actuator and the REM. |
| 13 | 29S-DK31 (OG/BK) REM fused power supply | 10 volts or greater with key in ON position. |
| 20 | 8-AA20 (WH/BU) passenger door lock control switch lock input | 0 voltage. Less than 5 ohms resistance between the passenger door lock control switch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
| 21 | 8-AA21 (WH/GN) passenger door lock control switch unlock input | 0 voltage. Less than 5 ohms resistance between the passenger door lock control switch and the REM. Greater than 10,000 ohms resistance between the REM and ground. |
