REM C420b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

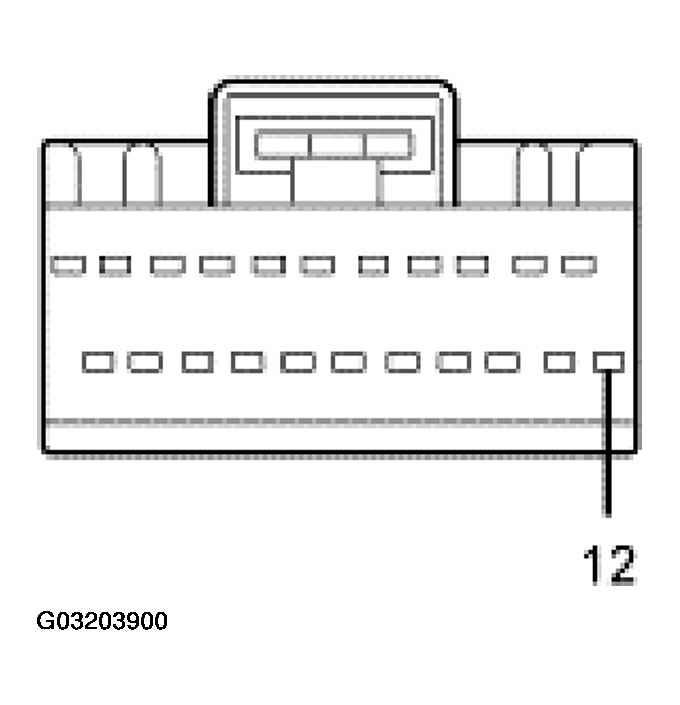

Fig 1: Identifying REM C420B
G03203900Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
12 31-DK30H (BK/OG) REM ground 0 voltage. Less than 5 ohms resistance between the REM and ground.
