Passenger Door Lock Control Switch C605
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

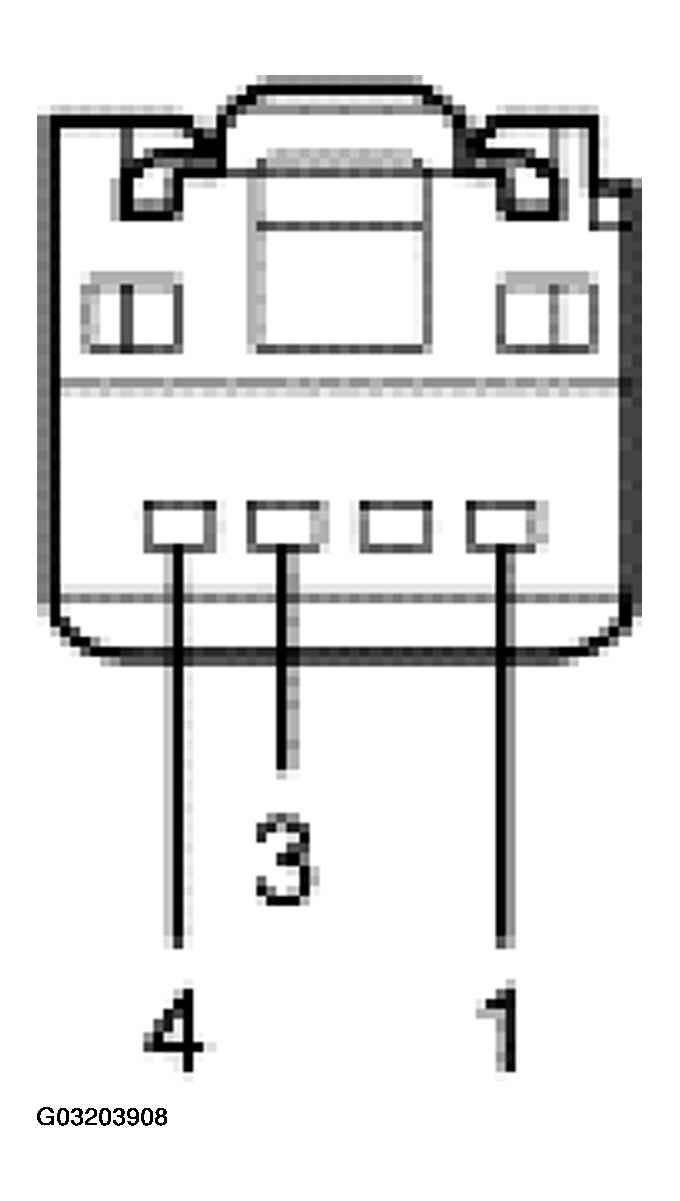

CIRCUIT DESIGNATION CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-AA20 (WH/BU) passenger door lock control switch lock input | Less than 5 ohms resistance between the passenger door lock control switch and the DDM. Greater than 10,000 ohms between the passenger door lock control switch and ground. |
| 3 | 8-AA21 (WH/GN) passenger door lock control switch unlock input | Less than 5 ohms resistance between the passenger door lock control switch and the DDM. Greater than 10,000 ohms between the passenger door lock control switch and ground. |
| 4 | 31-LH42 (BK) passenger door lock control switch ground | 0 voltage. Less than 5 ohms resistance between the passenger door lock control switch and ground. |
