Luggage Compartment Lid Remote Switch C207

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

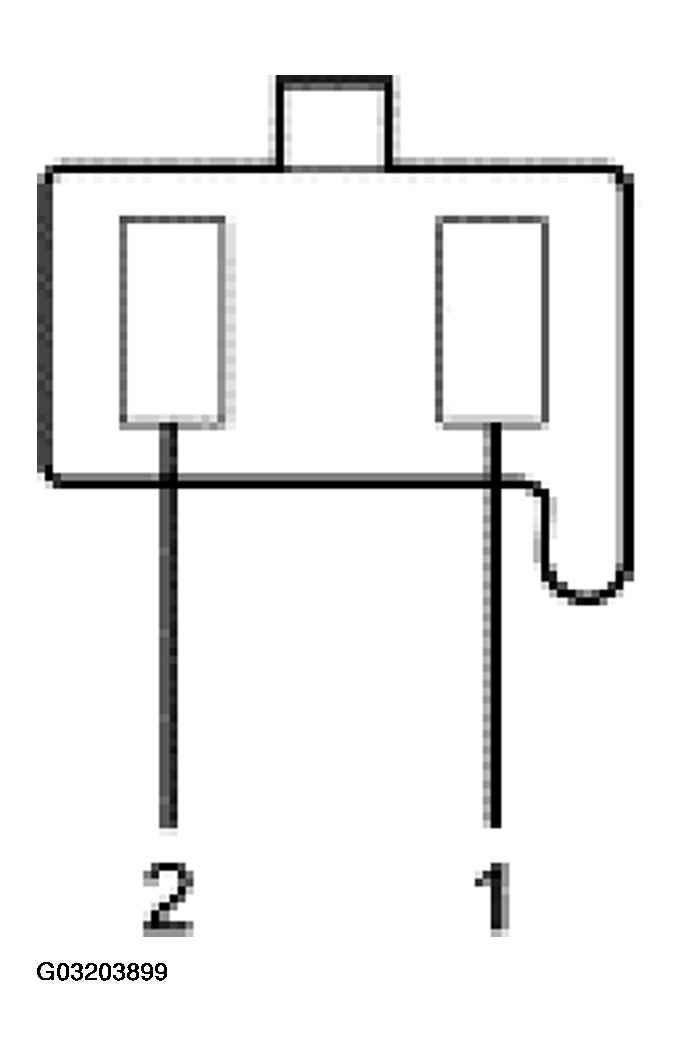

Fig 1: Identifying Luggage Compartment Lid Remote Switch C207
G03203899Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 8-AA30 (WH) luggage compartment lid remote switch signal circuit Less than 5 ohms resistance between the FEM and the luggage compartment lid remote switch. Greater than 10,000 ohms resistance between the luggage compartment lid remote switch and ground.
2 31-AA30 (BK/YE) luggage compartment lid remote switch ground 0 voltage. Less than 5 ohms resistance between the luggage compartment lid remote switch and ground.
