Luggage Compartment Lid Actuator C430

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

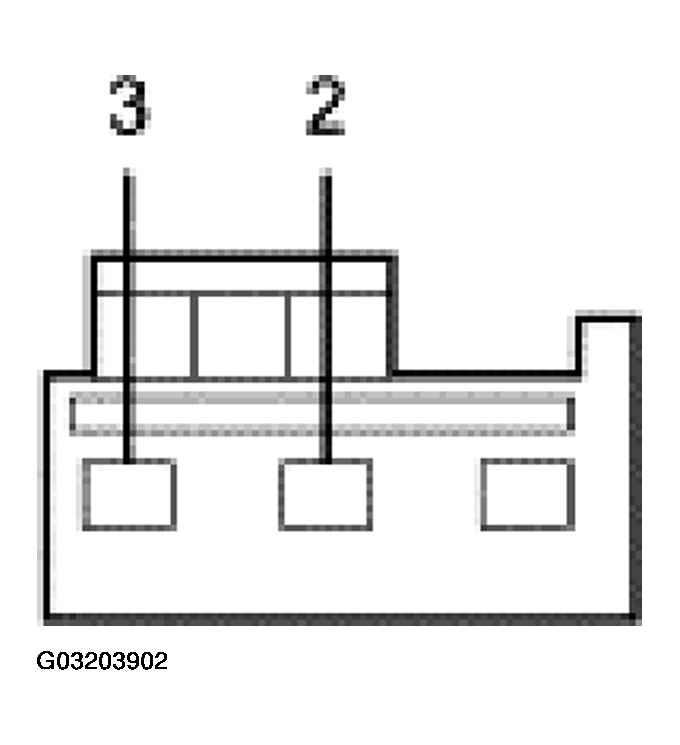

Fig 1: Identifying Luggage Compartment Lid Actuator C430
G03203902Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 29S-AA83 (OG) luggage compartment lid actuator power supply Less than 5 ohms resistance between the luggage compartment lid actuator and the REM. Greater than 10,000 ohms resistance between the luggage compartment lid actuator and ground.
3 31-AA83 (BK/OG) luggage compartment lid actuator ground 0 voltage. Less than 5 ohms between the luggage compartment lid actuator and ground.
