LH Rear Door Latch C704

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

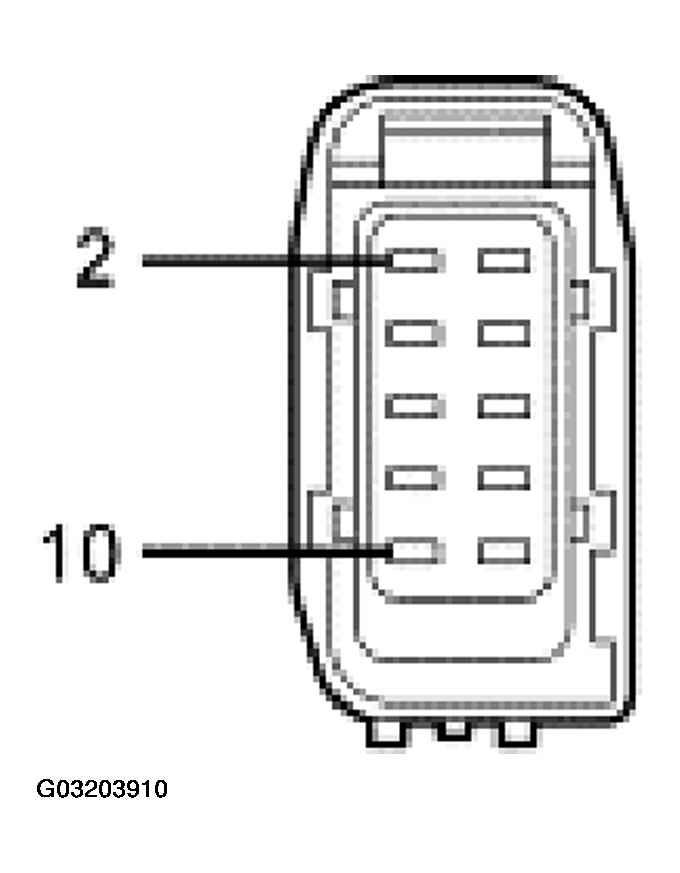

Fig 1: Identifying LH Rear Door Latch C704
G03203910Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 33-AA15 (YE/GN) LH rear door latch output Less than 5 ohms resistance between the LH rear door latch and the REM. Greater than 10,000 ohms between the LH rear door latch and ground.
10 32-AA16 (WH/BK) LH rear door latch unlock output Less than 5 ohms resistance between the LH rear door latch and the REM. Greater than 10,000 ohms between the LH rear door latch and ground.
