FEM C201e

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

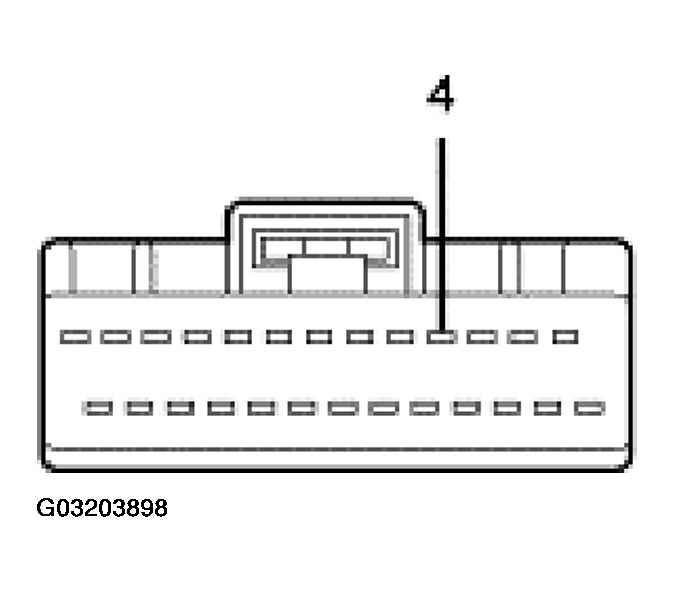

Fig 1: Identifying FEM C201E
G03203898Courtesy of FORD MOTOR CO.
CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
4 8-AA30 (WH) FEM signal circuit Less than 5 ohms resistance between the FEM and the luggage compartment lid remote switch. Greater than 10,000 ohms resistance between the FEM and ground.
