Driver Door Lock Control Switch C505

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

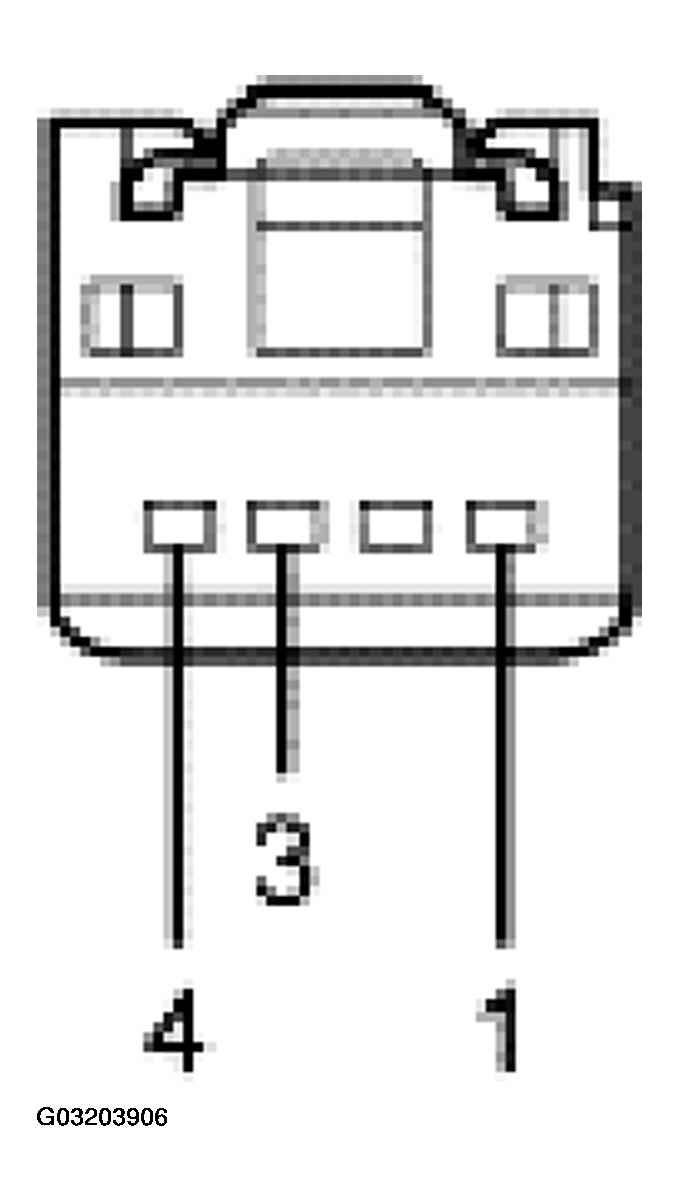

Fig 1: Identifying Driver Door Lock Control Switch C505
G03203906Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 8-AA10 (WH/BK) driver door lock control switch lock input Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms between the driver door lock control switch and ground.
3 8-AA11 (WH/VT) driver door lock control switch unlock input Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms between the driver door lock control switch and ground.
4 31-LH28 (BK) driver door lock control switch ground 0 voltage. Less than 5 ohms resistance between the driver door lock control switch and ground.
