Driver Door Latch C525

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

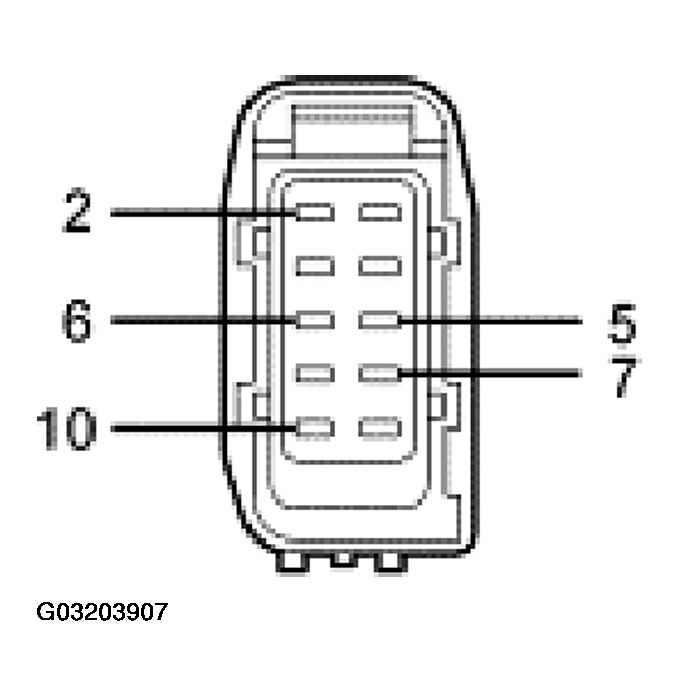

Fig 1: Identifying Driver Door Latch C525
G03203907Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 33-AA10 (YE/BK) driver door latch lock output Less than 5 ohms resistance between the driver door latch and the DDM. Greater than 10,000 ohms between the driver door latch and ground.
5 31S-AA79 (BK/WH) driver reset switch circuit Less than 5 ohms resistance between the driver door latch and the DDM. Greater than 10,000 ohms between the driver door latch and ground.
6 31-AA58 (BK) driver set/reset switch ground circuit Less than 5 ohms resistance between the driver door latch and ground.
7 31S-AA78 (BK/BU) driver set switch circuit Less than 5 ohms resistance between the driver door latch and the DDM. Greater than 10,000 ohms between the driver door latch and ground.
10 32-AA11 (WH/VT) driver door latch lock output Less than 5 ohms resistance between the driver door latch and the DDM. Greater than 10,000 ohms between the driver door latch and ground.
