DDM C501d

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

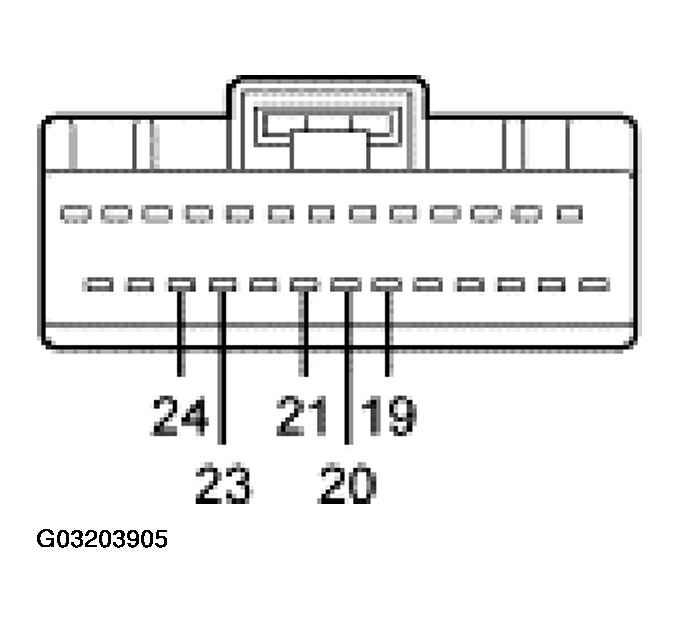

Fig 1: Identifying DDM C501D
G03203905Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
19 8-AA70 (WH/GN) keyless entry keypad input circuit Less than 5 ohms resistance between the keyless entry keypad and the DDM. Greater than 10,000 ohms resistance between the keyless entry keypad and ground.
20 10-AA70 (GY/OG) keyless entry keypad input circuit Less than 5 ohms resistance between the keyless entry keypad and the DDM. Greater than 10,000 ohms resistance between the keyless entry keypad and ground.
21 7-AA70 (YE/GN) keyless entry keypad input circuit Less than 5 ohms resistance between the keyless entry keypad and the DDM. Greater than 10,000 ohms resistance between the keyless entry keypad and ground.
23 8-AA10 (WH/BK) driver door lock control switch lock input circuit Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms resistance between the DDM and ground.
24 8-AA11 (WH/VT) driver door lock control switch unlock input circuit Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms resistance between the DDM and ground.
